K22X-A15 Series
Manufacturer: Kycon, Inc.
Beta
⌘K

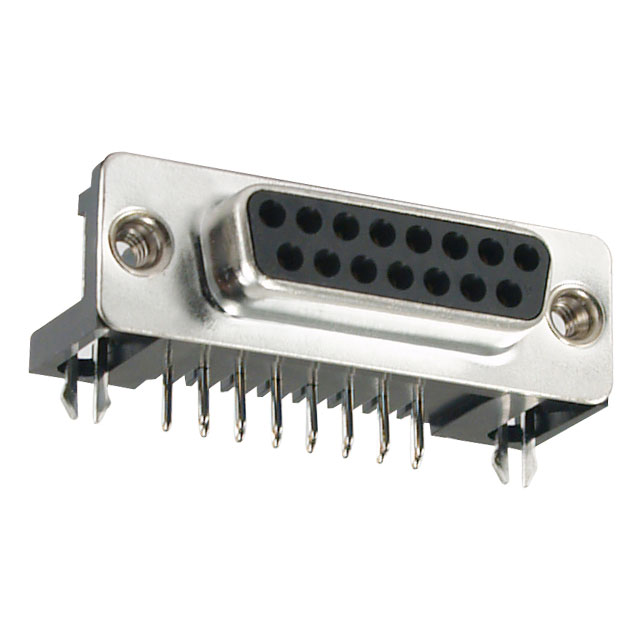

CONN D-SUB RCPT 15POS R/A SOLDER
| Part | Voltage Rating | Contact Form | Color | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material | Dielectric Material | Current Rating | Number of Rows | Contact Type | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness | Features | Termination | Backset Spacing | Connector Style | Number of Positions | Material Flammability Rating | Flange Feature | Mounting Type | Connector Type | Contact Finish | Shell Material | Finish | Shell Size | Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | 30 V | Stamped | Black | -55 °C | 105 °C | Phosphor Bronze | Glass Filled Polybutylene Terephthalate (PBT) | 2 A | 2 | Signal | 0 | Flash | Flash | Board Lock | Solder | 0.318 in | D-Sub | 15 | UL94 V-0 | Housing Shell (4-40) | Right Angle Through Hole | Female Sockets Receptacle | Gold | Steel | Nickel Plated | 2 | A DA |
