172699 Series
Manufacturer: Molex
Beta
⌘K

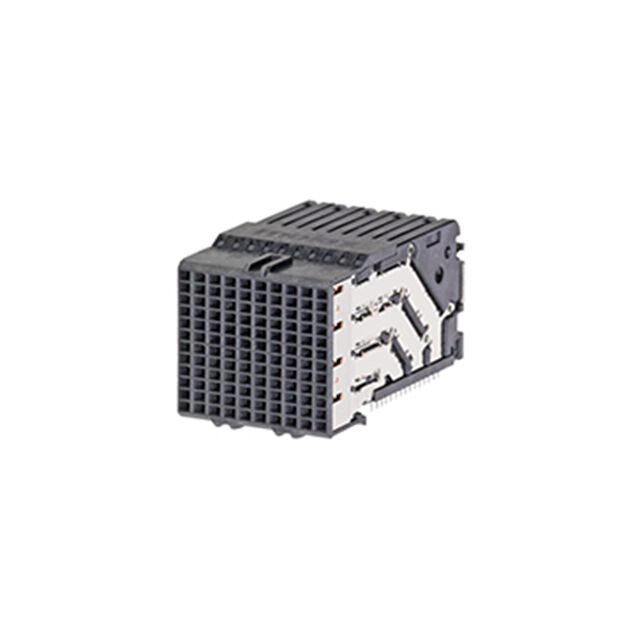

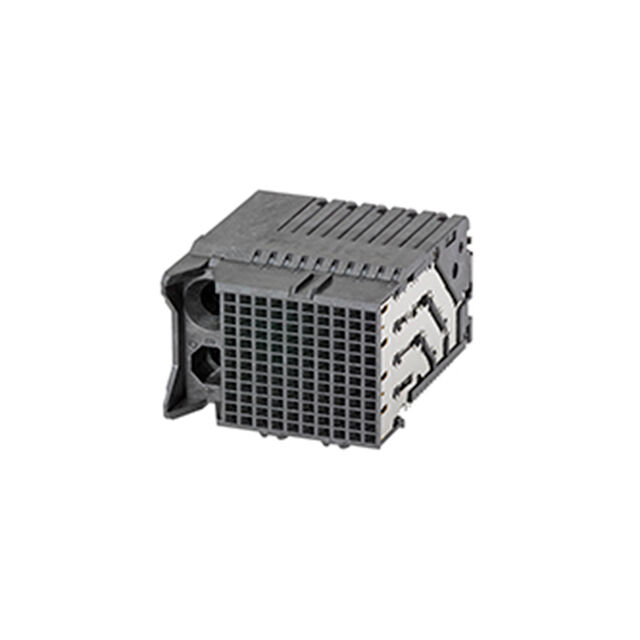

IMPACT ZX2 95 OHM 4 PAIR RIGHT-ANGLE DAUGHTERCARD RECEPTACLE, LEFT GUIDED, 10 COLUMNS, 160 CIRCUITS, PLATED THROUGH HOLE DIMENSION 0.36MM, LEAD-FREE
| Part | Current Rating (Amps) | Voltage Rating | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Layout, Typical | Color | Connector Style | Termination | Number of Rows | Mounting Type | Pitch | Pitch | Connector Type | Number of Positions Loaded | Contact Finish | Features | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Connector Usage | Number of Columns |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.75 A | 29.9 VAC/DC | UL94 V-0 | -55 C | 85 °C | 40 | Black | Impact Guide Left | Press-Fit | 16 | Board Edge Right Angle Through Hole | 1.9 mm | 0.075 in | Receptacle Female Sockets | All | Gold | Board Guide | 30 Áin | 0.76 Ám | 160 | Daughtercard | 10 |
 Molex | ||||||||||||||||||||||
Molex | ||||||||||||||||||||||
 Molex | 0.75 A | 150 VDC | UL94 V-0 | -55 C | 85 °C | 40 | Black | Impact | Press-Fit | 16 | Board Edge Right Angle Through Hole | Receptacle Female Sockets | All | Gold | 30 Áin | 0.76 Ám | 160 | Daughtercard | 10 |
