ES0800 Series

Catalog

CONN TERM STRIP 8CIRC 0.315"

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Barrier Type	Number of Wire Entries	Wire Gauge [Min]	Wire Gauge [Max]	Number of Rows [custom]	Pitch	Pitch	Current Rating (Amps)	Voltage Rating	Number of Circuits	Top Termination	Bottom Termination	Terminal Block Type	Number of Circuits [custom]
On Shore Technology Inc. ES0800/08DSFB	Chassis Panel	-33 °C	105 ░C	Enclosed	16	14 AWG	22 AWG	2	0.315 in	8 mm	15 A	300 VDC	8	Screws	Closed	Eurostyle Terminal Strip
On Shore Technology Inc. ES0800/11DSFB	Chassis Panel	-33 °C	105 ░C	Enclosed	22	14 AWG	22 AWG	2	0.315 in	8 mm	15 A	300 VDC	11	Screws	Closed	Eurostyle Terminal Strip
On Shore Technology Inc. ES0800/05DSFB	Chassis Panel	-33 °C	105 ░C	Enclosed	10	14 AWG	22 AWG	2	0.315 in	8 mm	15 A	300 VDC	5	Screws	Closed	Eurostyle Terminal Strip
On Shore Technology Inc. ES0800/06DSFB	Chassis Panel	-33 °C	105 ░C	Enclosed	12	14 AWG	22 AWG	2	0.315 in	8 mm	15 A	300 VDC	6	Screws	Closed	Eurostyle Terminal Strip
On Shore Technology Inc. ES0800/07DSFB	Chassis Panel	-33 °C	105 ░C	Enclosed	14	14 AWG	22 AWG	2	0.315 in	8 mm	15 A	300 VDC	7	Screws	Closed	Eurostyle Terminal Strip
On Shore Technology Inc. ES0800/03DSFB	Chassis Panel	-33 °C	105 ░C	Enclosed	6	14 AWG	22 AWG	2	0.315 in	8 mm	15 A	300 VDC	3	Screws	Closed	Eurostyle Terminal Strip

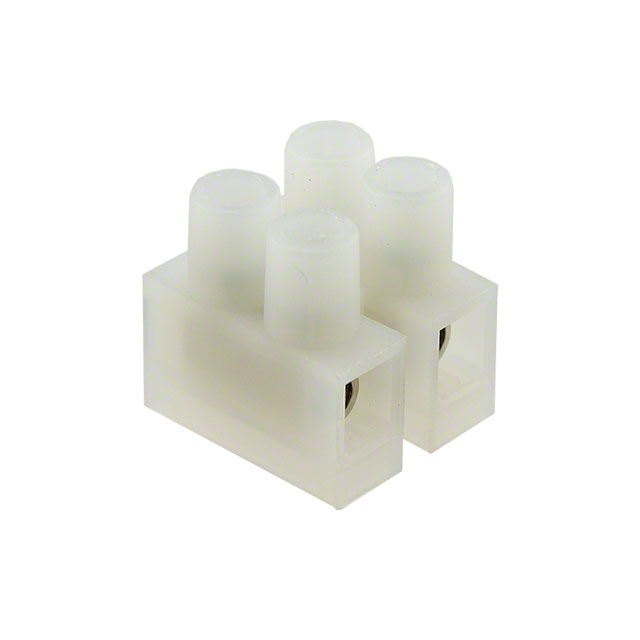

On Shore Technology Inc. ES0800/02DSFB	Chassis Panel	-33 °C	105 ░C	Enclosed	4	14 AWG	22 AWG	2	0.315 in	8 mm	15 A	300 VDC	2	Screws	Closed	Eurostyle Terminal Strip
On Shore Technology Inc. ES0800/09DSFB	Chassis Panel	-33 °C	105 ░C	Enclosed	18	14 AWG	22 AWG	2	0.315 in	8 mm	15 A	300 VDC		Screws	Closed	Eurostyle Terminal Strip	9
On Shore Technology Inc. ES0800/10DSFB	Chassis Panel	-33 °C	105 ░C	Enclosed	20	14 AWG	22 AWG	2	0.315 in	8 mm	15 A	300 VDC	10	Screws	Closed	Eurostyle Terminal Strip
On Shore Technology Inc. ES0800/12DSFB	Chassis Panel	-33 °C	105 ░C	Enclosed		14 AWG	22 AWG	2	0.315 in	8 mm	15 A	300 VDC	12	Screws	Closed	Eurostyle Terminal Strip
