TPS7B84-Q1 Series

Catalog

AUTOMOTIVE 150-MA, 40-V, LOW-DROPOUT (LDO) LINEAR REGULATOR WITH ENABLE AND FAST TRANSIENT RESPONSE

Part	Protection Features	PSRR	Supplier Device Package	Package / Case	Voltage - Output (Min/Fixed)	Control Features	Current - Output	Voltage Dropout (Max) [Max]	Grade	Qualification	Number of Regulators	Mounting Type	Output Configuration	Current - Quiescent (Iq)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Max) [Max]	Output Type	Voltage Dropout (Max)	Current - Supply (Max) [Max]
Texas Instruments TPS7B8433QDCYRQ1M3	Over Current Over Temperature Under Voltage Lockout (UVLO)	55 dB	SOT-223-4	TO-261-4 TO-261AA	3.3 V	Current Limit Enable	150 mA	0.23 V	Automotive	AEC-Q100	1	Surface Mount	Positive	26 µA	125 °C	-40 °C

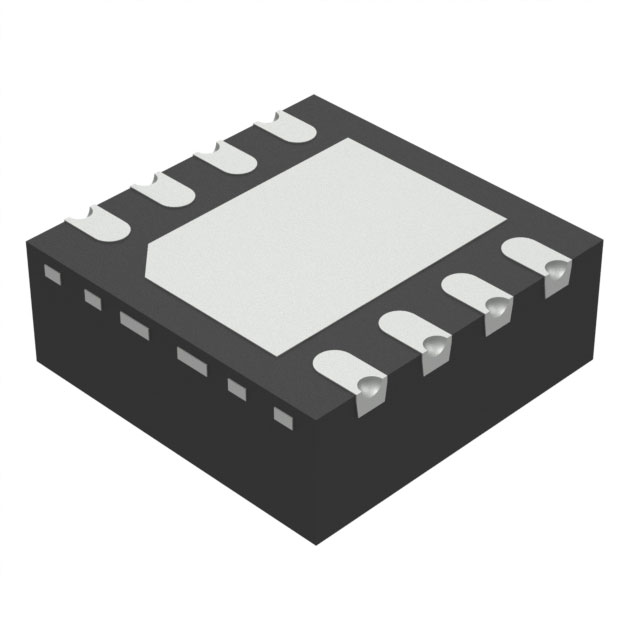

Texas Instruments TPS7B8480QWDRBRQ1	Over Current Over Temperature Under Voltage Lockout (UVLO)	55 dB	8-SON (3x3)	8-VDFN Exposed Pad	8 V	Enable	150 mA	0.225 V	Automotive	AEC-Q100	1	Surface Mount Wettable Flank	Positive	26 µA	150 °C	-40 °C
Texas Instruments TPS7B8433QWDRBRQ1	Over Current Over Temperature Under Voltage Lockout (UVLO)	55 dB	8-SON (3x3)	8-VDFN Exposed Pad	3.3 V	Enable	150 mA	0.225 V	Automotive	AEC-Q100	1	Surface Mount Wettable Flank	Positive	26 µA	150 °C	-40 °C
Texas Instruments TPS7B8433QDCYRQ1W	Over Current Over Temperature Under Voltage Lockout (UVLO)	55 dB	SOT-223-4	TO-261-4 TO-261AA	3.3 V	Current Limit Enable	150 mA	0.23 V	Automotive	AEC-Q100	1	Surface Mount	Positive	26 µA	125 °C	-40 °C
Texas Instruments TPS7B8401QWDRBRQ1	Over Current Over Temperature Under Voltage Lockout (UVLO)	55 dB	8-SON (3x3)	8-VDFN Exposed Pad	1.2 V	Enable	150 mA		Automotive	AEC-Q100	1	Surface Mount Wettable Flank	Positive	26 µA	150 °C	-40 °C	18 V	Adjustable	0.245 V
Texas Instruments TPS7B8450QWDRBRQ1	Over Current Over Temperature Under Voltage Lockout (UVLO)	55 dB	8-SON (3x3)	8-VDFN Exposed Pad	5 V	Enable	150 mA	0.225 V	Automotive	AEC-Q100	1	Surface Mount Wettable Flank	Positive	26 µA	150 °C	-40 °C
Texas Instruments TPS7B8450QDCYRQ1W	Over Current Over Temperature Under Voltage Lockout (UVLO)	55 dB	SOT-223-4	TO-261-4 TO-261AA	5 V	Current Limit Enable	150 mA	0.23 V	Automotive	AEC-Q100	1	Surface Mount	Positive	26 µA	125 °C	-40 °C
Texas Instruments TPS7B8433QDCYRQ1	Over Current Over Temperature Under Voltage Lockout (UVLO)	70 db	SOT-223-4	TO-261-4 TO-261AA	3.3 V	Enable	150 mA	0.255 V	Automotive	AEC-Q100	1	Surface Mount	Positive	25 µA	150 °C	-40 °C				35 µA
Texas Instruments TPS7B8450QDCYRQ1	Over Current Over Temperature Under Voltage Lockout (UVLO)	70 db	SOT-223-4	TO-261-4 TO-261AA	5 V	Enable	150 mA	0.255 V	Automotive	AEC-Q100	1	Surface Mount	Positive	25 µA	150 °C	-40 °C				35 µA
Texas Instruments TPS7B8450QDCYRQ1M3	Over Current Over Temperature Reverse Current Under Voltage Lockout (UVLO)	55 dB	SOT-223-4	TO-261-4 TO-261AA	5 V	Current Limit Enable	150 mA	0.23 V	Automotive	AEC-Q100	1	Surface Mount	Positive	26 µA	125 °C	-40 °C
