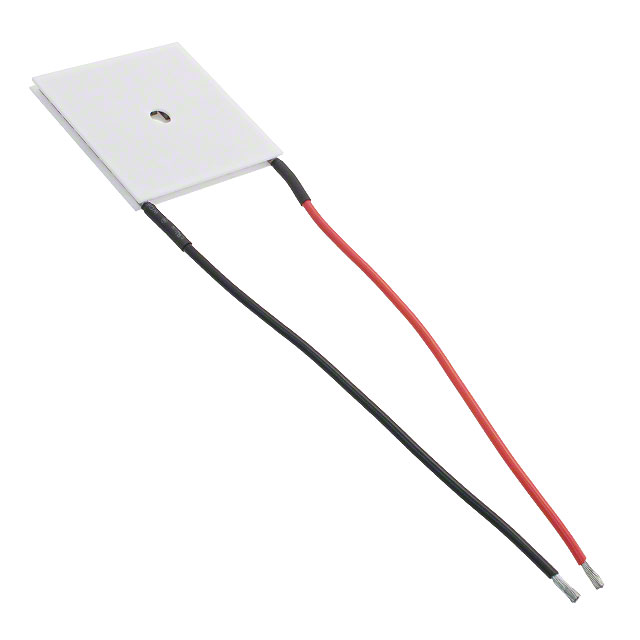

71020 Series

Catalog

PELTIER SH14,125,045,L1,W4.5

Part	Resistance	Current - Max [Max]	Number of Stages	Height [z]	Operating Temperature	Size / Dimension [y]	Size / Dimension [x]	Delta Tmax @ Th	Voltage - Max [Max]	Features	Qmax @ Th
Laird Thermal Systems, Inc. 71020-505	1.53 Ohms	8.5 A	1	3.33 mm	80 °C	39.88 mm	39.88 mm	67 °C	14.1 V	Lead Wires Non-Sealed	72.7 W
Laird Thermal Systems, Inc. 71020-501	1.53 Ohms	8.5 A	1	3.33 mm	80 °C	39.88 mm	39.88 mm	67 °C	14.1 V	Lead Wires Sealed - Silicone RTV	72.7 W
Laird Thermal Systems, Inc. 71020-513	1.53 Ohms	8.5 A	1	3.33 mm	80 °C	39.88 mm	39.88 mm	67 °C	14.1 V	Lead Wires Sealed - Epoxy	72.7 W
