DPS-40 Series
Manufacturer: Delta Electronics
Beta
⌘K
AC/DC DESKTOP ADAPTER 12V 40W
| Part | Power (Watts) | Approval Agency | Form | Polarization | Region Utilized | Voltage - Input [Max] | Voltage - Input [Min] | Input Type | Applications | Output Connector [x] | Output Connector [diameter] | Output Connector | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Current - Output (Max) [Max] | Cord Length | Cord Length | Input Connector | Voltage - Output | Number of Outputs | Efficiency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Type | Voltage - Isolation | Voltage - Output 1 | Mounting Type | Current - Output 1 | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

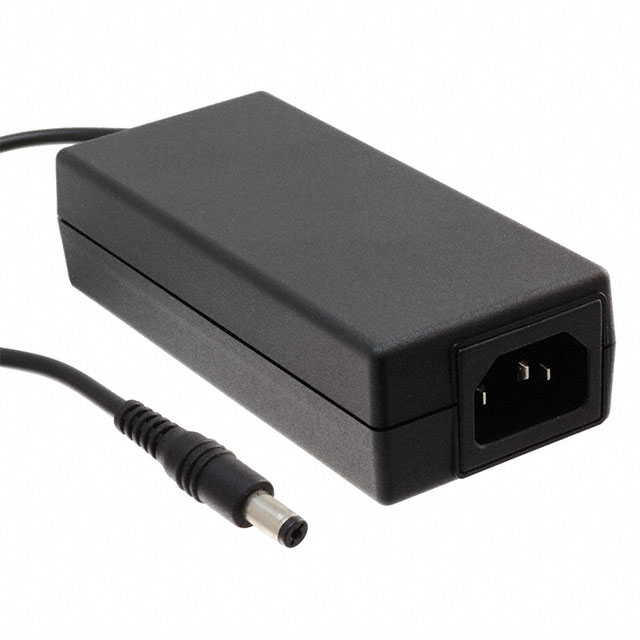

 Delta Electronics | 40 W | BSMI CB CCC CE cULus GS KC NOM PSE RCM | Desktop (Class I) | Positive Center | International | 264 VAC | 90 VAC | Cord (Sold Separately) | ITE (Commercial) | 10 mm | 2.1 mm 5.5 mm | Barrel Plug | Level VI | 40 °C | 0 °C | 51.5 mm | 115 mm | 2.03 in | 1.2 " | 4.53 in | 30.5 mm | 3.33 A | 1.2 m | 47.2 in | IEC 320-C14 | 12 V | |||||||||||

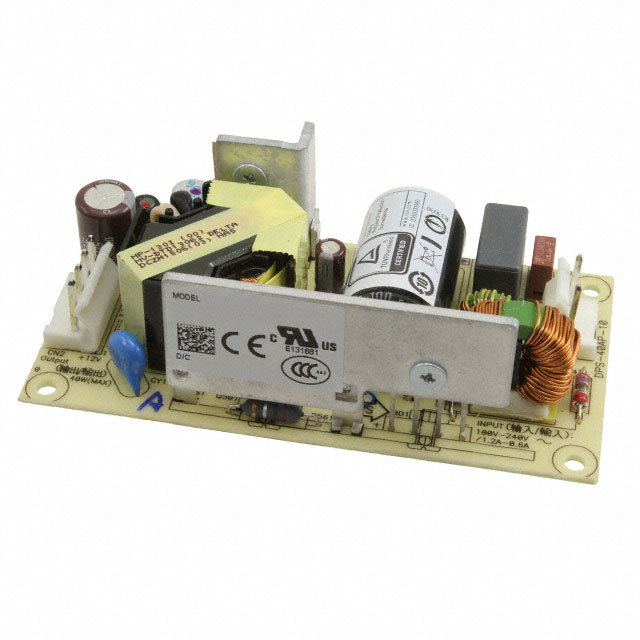

 Delta Electronics | 40 W | BSMI CB CCC CE cURus D-Mark TUV | 264 VAC | 90 VAC | ITE (Commercial) | 70 °C | 0 °C | 50 mm | 30.5 mm | 95 mm | 1 | 87 % | 3.74 " | 1.2 " | 1.97 in | Open Frame | 3000 V | 12 V | Chassis Mount | 3.33 A | Universal Input |
