9180 Series
Manufacturer: Belden Inc.
Beta
⌘K

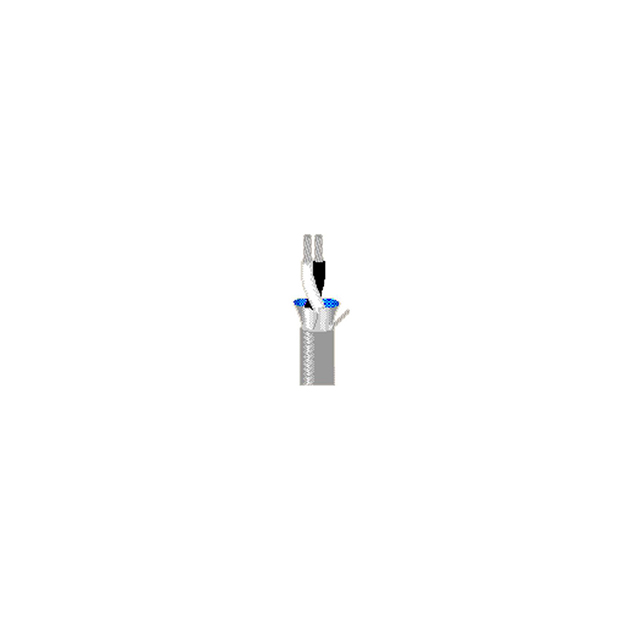

MULTIPAIR CABLE, SHIELDED, 1 PAIR, 26 AWG, 0.13 MM², 1000 FT, 304.8 M
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Conductor Material | Conductor Insulation | Length | Length | Conductor Strand [x] | Conductor Strand [x] | Wire Gauge | Number of Conductors | Usage | Shield Type | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | Poly-Vinyl Chloride (PVC) | 0.022 in | 0.559 mm | -40 C | 75 ░C | 300 VDC | Copper Tinned | Foam Polyethylene (FPE) | 304.8 m | 1000 ft | 34 AWG | 7 | 26 AWG | 2 | Audio Communication Control | Foil | Multi-Conductor | 0.144 in | 3.66 mm | UL Style CMR | Chrome |
