87437 Series
Manufacturer: Molex
Beta
⌘K

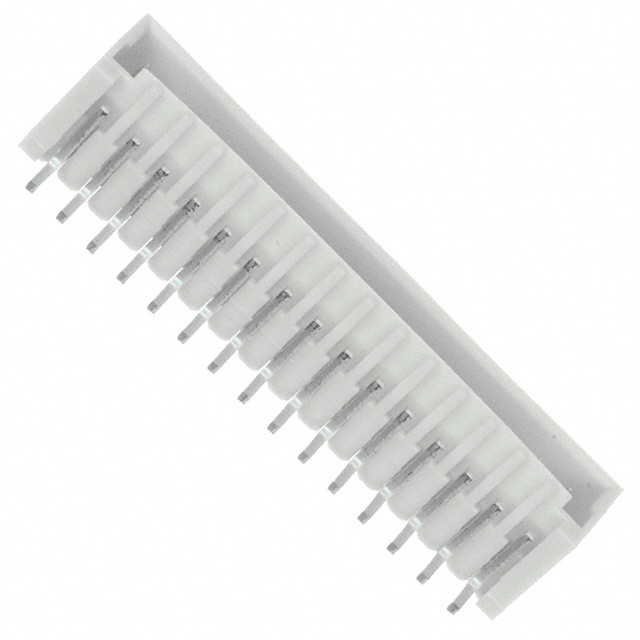

CONN HEADER SMD 15POS 1.5MM
| Part | Insulation Color | Insulation Material | Mounting Type | Connector Type | Termination | Number of Positions Loaded | Shrouding | Insulation Height | Insulation Height | Fastening Type | Number of Positions | Number of Rows | Contact Finish - Post | Contact Type | Contact Material | Style | Contact Length - Mating | Contact Length - Mating | Material Flammability Rating | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mated Stacking Heights | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Beige | Nylon Polyamide (PA) | Surface Mount | Header | Solder | All | Shrouded - 4 Wall | 5.05 mm | 0.199 in | Push-Pull | 15 | 1 | Tin | Male Pin | Brass Alloy | Board to Cable/Wire | 0.106 in | 2.7 mm | UL94 V-0 | Square | 100 çin | 2.54 çm | 7.4 mm | General Purpose Medical |
