RTH140 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

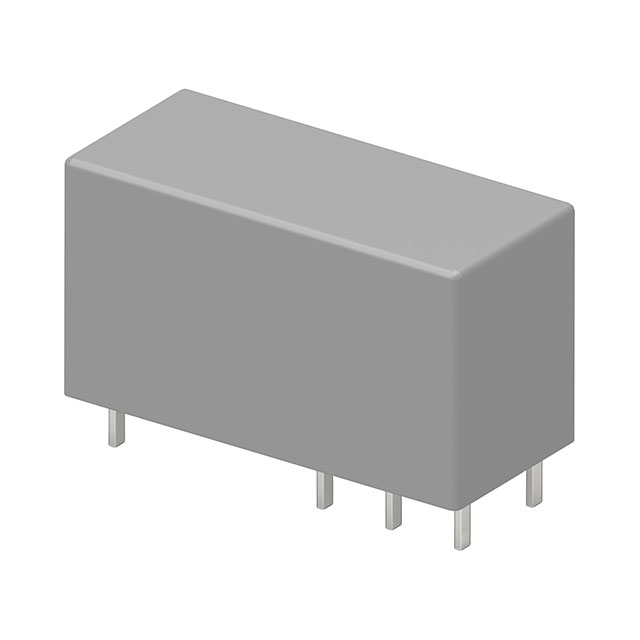

RELAY GEN PURPOSE SPDT 16A 24V
| Part | Coil Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Coil Current | Load - Max Switching | Coil Voltage | Release Time | Contact Rating (Current) | Contact Material | Termination Style | Must Operate Voltage | Coil Insulation | Mounting Type | Coil Type | Contact Form | Must Release Voltage | Relay Type | Operate Time | Switching Voltage [Max] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1440 Ohms | -40 C | 105 ░C | 16.7 mA | 6400 VA | 24 VDC | 6 ms | 16 A | Silver Nickel (AgNi) | PC Pin | 16.8 VDC | Class F | Through Hole | Non Latching | SPDT (1 Form C) | 2.4 VDC | General Purpose | 8 ms | 400 VAC | CQC CSA cURus VDE |
