664-037 Series
Manufacturer: EDAC Inc.
Beta
⌘K

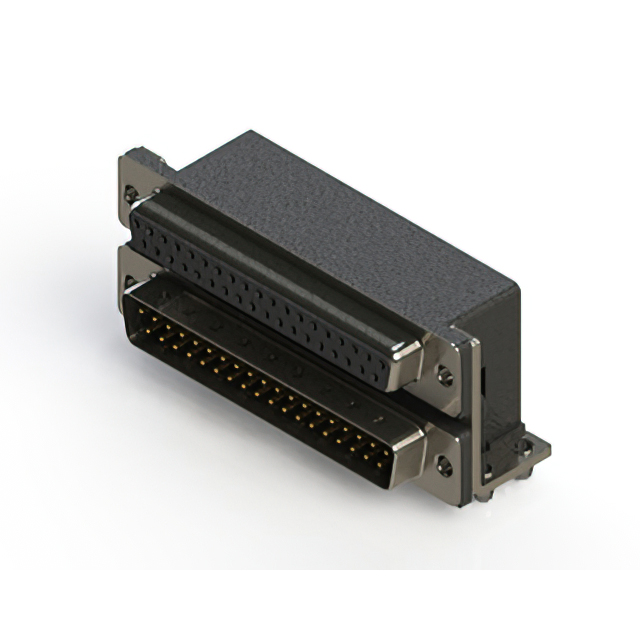

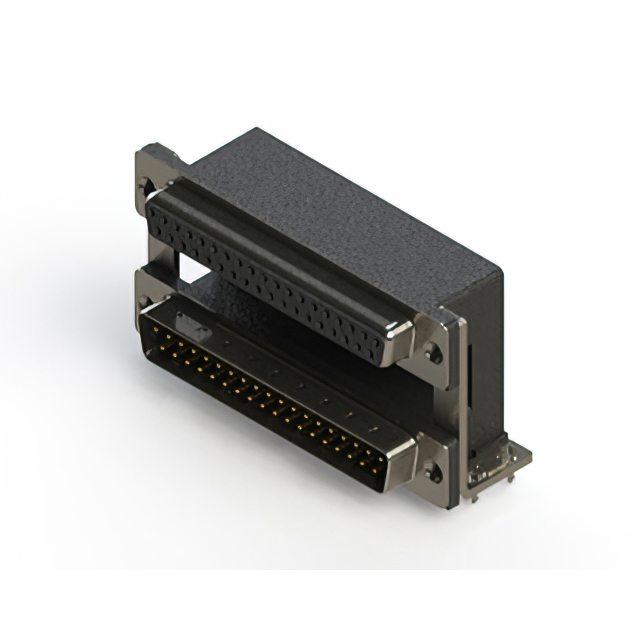

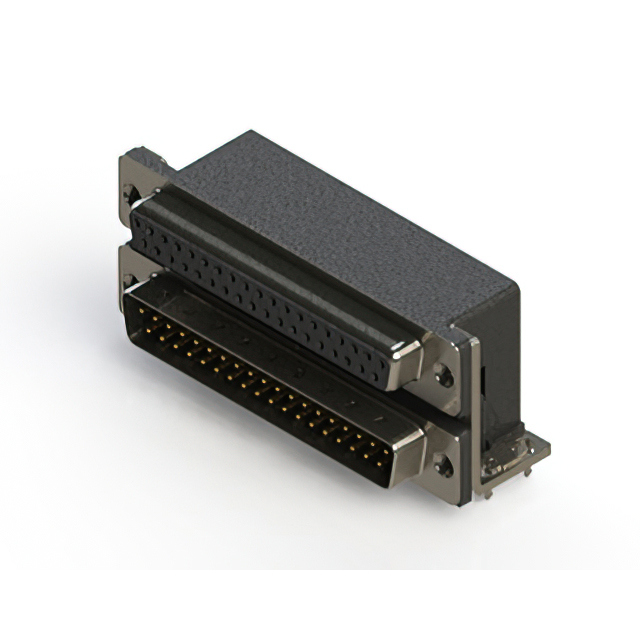

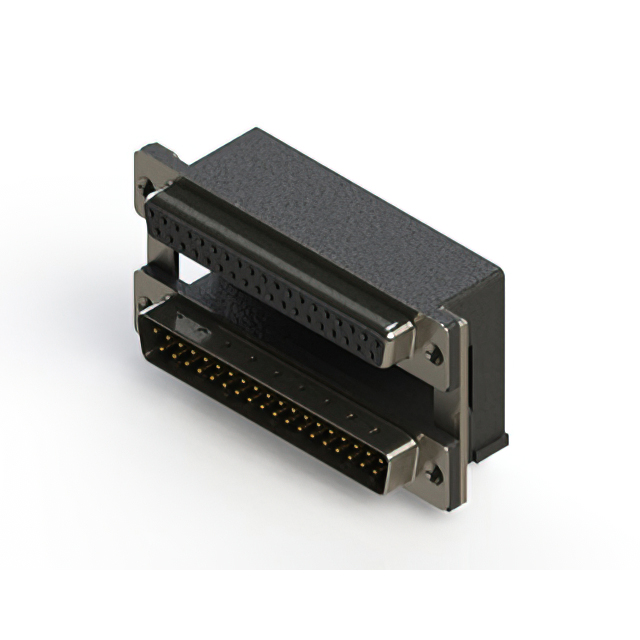

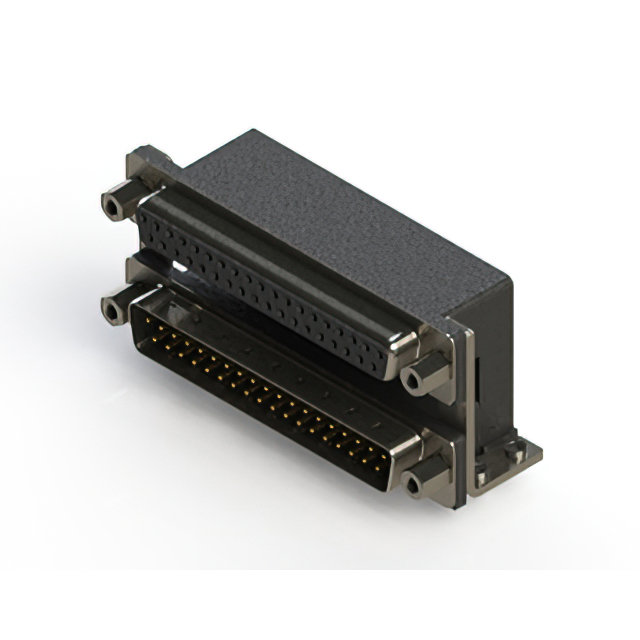

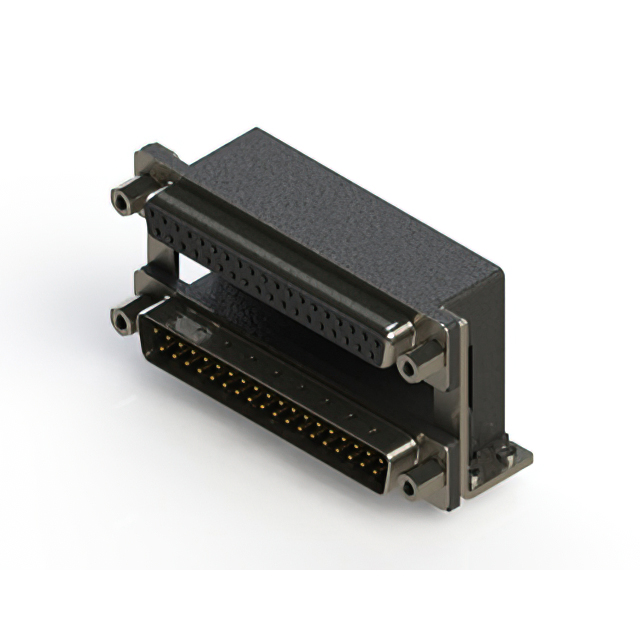

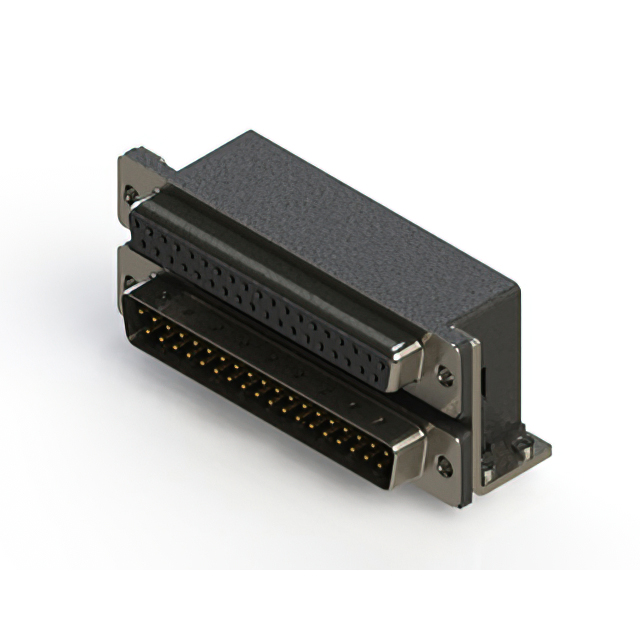

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Color | Backset Spacing | Backset Spacing | Material Flammability Rating | Number of Positions [Min] | Number of Positions [Max] | Contact Finish | Connector Type | Contact Type | Features | Current Rating (Amps) | Termination | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Mounting Type | Shell Material, Finish | Connector Style | Number of Rows [custom] | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | Black | 8.08 mm | 0.318 " | UL94 V-0 | 37 | 37 | Gold | Plug Male Pins Receptacle Female Socket | Signal | Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 4 | 30 Áin | 0.76 Ám | 4-40 Mating Side Female Screwlock | Right Angle Through Hole | Nickel Plated Steel | D-Sub - Stacked | 2 | ||
 EDAC Inc. | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | Black | 8.08 mm | 0.318 " | UL94 V-0 | 37 | 37 | Gold | Plug Male Pins Receptacle Female Socket | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 4 | Housing/Shell (Unthreaded) | Right Angle Through Hole | Nickel Plated Steel | D-Sub - Stacked | 2 | Flash | |||
 EDAC Inc. | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | Black | 8.08 mm | 0.318 " | UL94 V-0 | 37 | 37 | Gold | Plug Male Pins Receptacle Female Socket | Signal | Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 4 | 30 Áin | 0.76 Ám | 4-40 Mating Side Female Screwlock | Right Angle Through Hole | Nickel Plated Steel | D-Sub - Stacked | 2 | ||
 EDAC Inc. | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | Black | 8.08 mm | 0.318 " | UL94 V-0 | 37 | 37 | Gold | Plug Male Pins Receptacle Female Socket | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 4 | Housing/Shell (Unthreaded) | Right Angle Through Hole | Nickel Plated Steel | D-Sub - Stacked | 2 | Flash | |||
 EDAC Inc. | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | Black | 8.08 mm | 0.318 " | UL94 V-0 | 37 | 37 | Gold | Plug Male Pins Receptacle Female Socket | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 4 | 30 Áin | 0.76 Ám | Housing/Shell | Right Angle Through Hole | Nickel Plated Steel | D-Sub - Stacked | 2 | 4-40 | |
 EDAC Inc. | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | Black | 8.08 mm | 0.318 " | UL94 V-0 | 37 | 37 | Gold | Plug Male Pins Receptacle Female Socket | Signal | Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 4 | 15 µin | 0.38 µm | Housing/Shell (Unthreaded) | Right Angle Through Hole | Nickel Plated Steel | D-Sub - Stacked | 2 | ||
 EDAC Inc. | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | Black | 8.08 mm | 0.318 " | UL94 V-0 | 37 | 37 | Gold | Plug Male Pins Receptacle Female Socket | Signal | Grounding Indents Shielded | 3 A | Solder | 4 | Housing/Shell | Right Angle Through Hole | Nickel Plated Steel | D-Sub - Stacked | 2 | Flash | 4-40 | ||
 EDAC Inc. | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | Black | 8.08 mm | 0.318 " | UL94 V-0 | 37 | 37 | Gold | Plug Male Pins Receptacle Female Socket | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 4 | 4-40 Mating Side Female Screwlock | Right Angle Through Hole | Nickel Plated Steel | D-Sub - Stacked | 2 | Flash | |||
 EDAC Inc. | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | Black | 8.08 mm | 0.318 " | UL94 V-0 | 37 | 37 | Gold | Plug Male Pins Receptacle Female Socket | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 4 | 15 µin | 0.38 µm | Housing/Shell | Right Angle Through Hole | Nickel Plated Steel | D-Sub - Stacked | 2 | 4-40 | |
 EDAC Inc. | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | Black | 8.08 mm | 0.318 " | UL94 V-0 | 37 | 37 | Gold | Plug Male Pins Receptacle Female Socket | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 4 | Housing/Shell | Right Angle Through Hole | Nickel Plated Steel | D-Sub - Stacked | 2 | Flash | 4-40 |
