ED650 Series

Catalog

TERM BLK 5POS TOP ENTRY 7MM PCB

Part	Contact Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Clamp Material - Plating [custom]	Housing Material	Screw Thread	Pitch	Pitch	Positions Per Level	Current	Wire Gauge [Max]	Wire Gauge [Min]	Mating Orientation	Color	Number of Levels	Wire Termination	Mounting Type	Positions Per Level [custom]

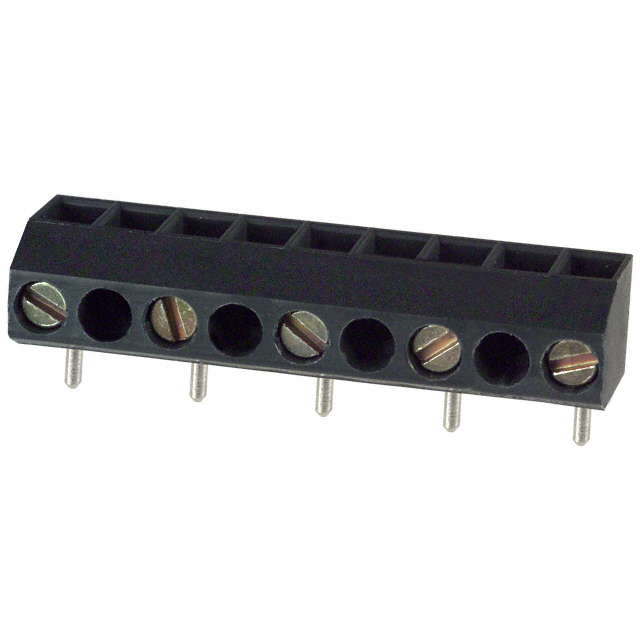

On Shore Technology Inc. ED650/5DS	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	M2	7 mm	0.276 in	5	6 A	28 AWG	16 AWG	Vertical with Board	Gray	1	Screw	Through Hole

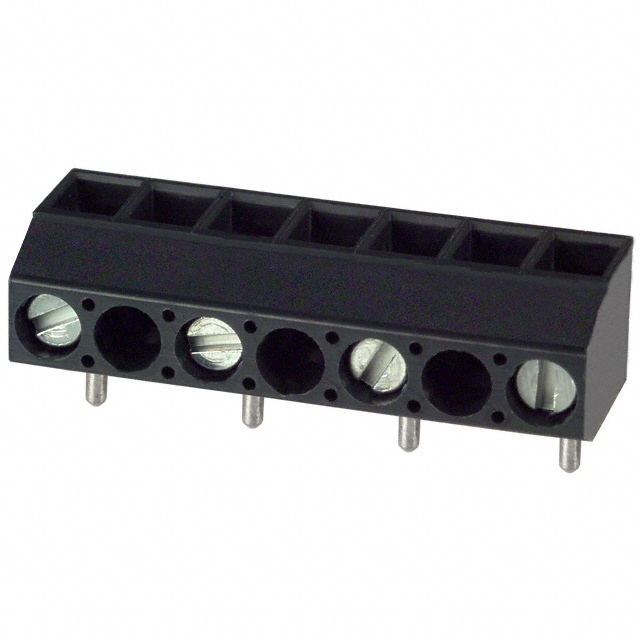

On Shore Technology Inc. ED650/4DS	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	M2	7 mm	0.276 in	4	6 A	28 AWG	16 AWG	Vertical with Board	Gray	1	Screw	Through Hole
On Shore Technology Inc. ED650/6DS	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	M2	7 mm	0.276 in	6	6 A	28 AWG	16 AWG	Vertical with Board	Gray	1	Screw	Through Hole

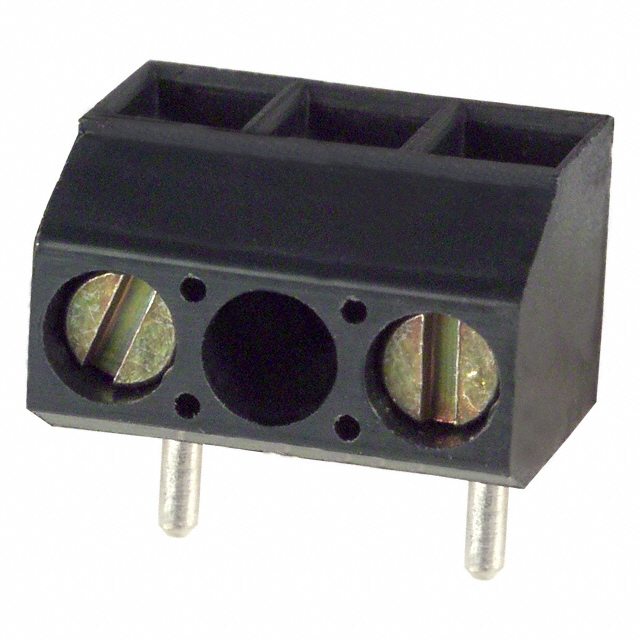

On Shore Technology Inc. ED650/2DS	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	M2	7 mm	0.276 in	2	6 A	28 AWG	16 AWG	Vertical with Board	Gray	1	Screw	Through Hole

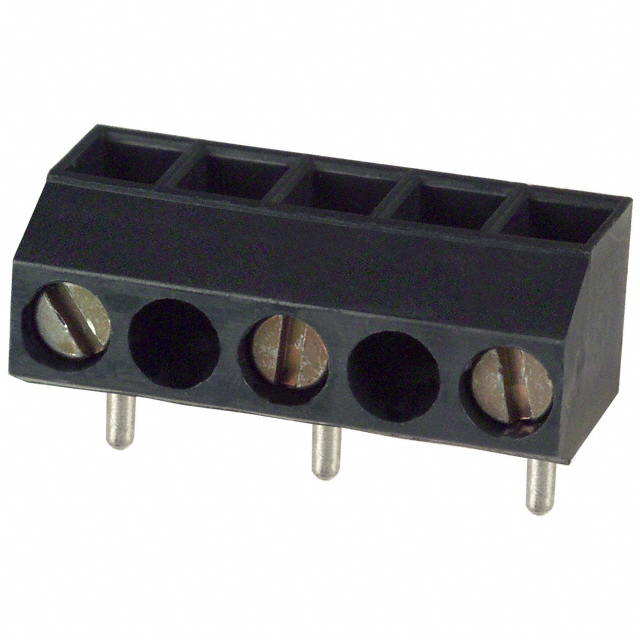

On Shore Technology Inc. ED650/3DS	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	M2	7 mm	0.276 in	3	6 A	28 AWG	16 AWG	Vertical with Board	Gray	1	Screw	Through Hole

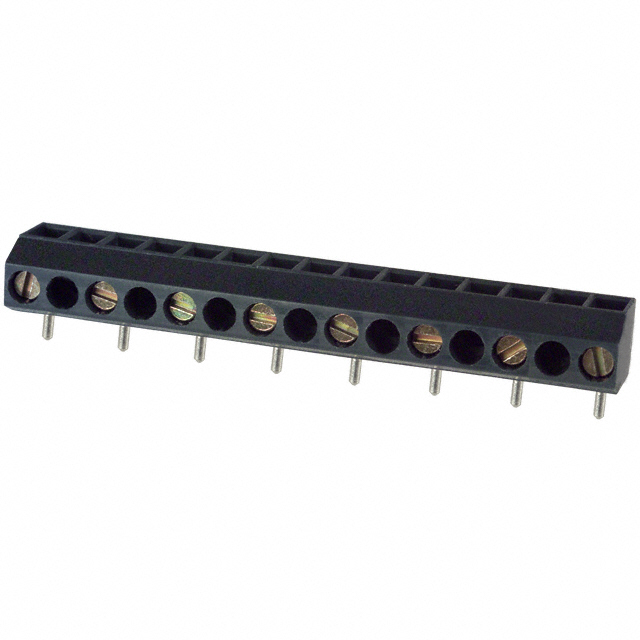

On Shore Technology Inc. ED650/8DS	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	M2	7 mm	0.276 in	8	6 A	28 AWG	16 AWG	Vertical with Board	Gray	1	Screw	Through Hole
On Shore Technology Inc. ED650/7DS	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	M2	7 mm	0.276 in		6 A	28 AWG	16 AWG	Vertical with Board	Gray	1	Screw	Through Hole	7
