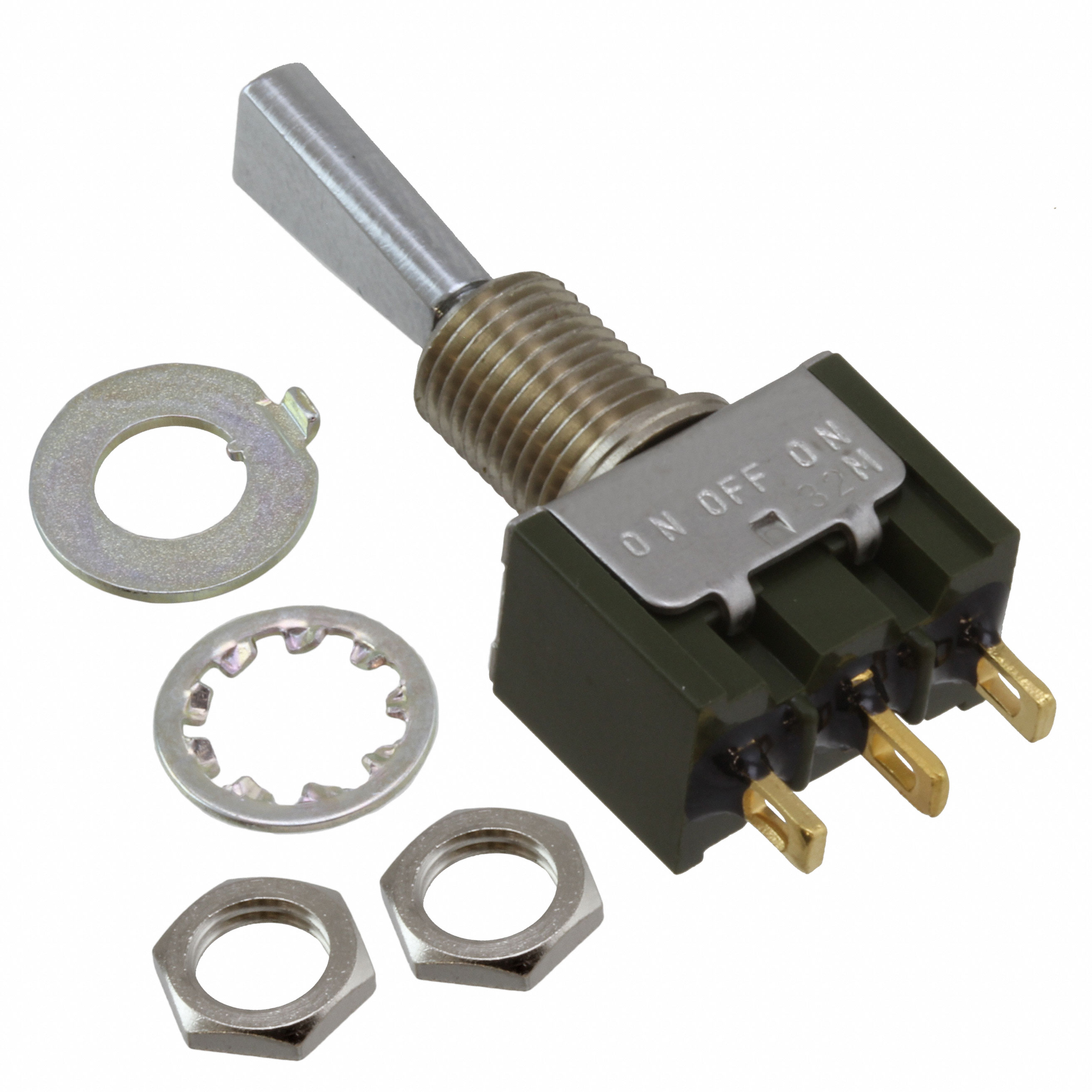

M2019ED Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 0.4VA 28V
| Part | Electrical Life | Actuator Material | Panel Cutout Dimensions [diameter] | Illumination | Switch Function | Voltage Rating - AC | Current Rating (Amps) | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Bushing Thread | Mounting Type | Actuator Type | Circuit | Actuator Length [x] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | Brass Chrome Plated | 6.5 mm | Non-Illuminated | On-Off-Mom | 28 V | 0.4 VA | Epoxy Sealed Terminals | 85 °C | -30 ░C | 28 V | 1/4-40 | Panel Mount | Flatted | SPDT | 11.4 mm | Solder Lug |
