R75GR Series

Manufacturer: KEMET

Catalog

CAP, AEC-Q200, 3.3UF, 160V, FILM ROHS COMPLIANT: YES

Part	Lead Spacing	Lead Spacing	Voltage Rating - AC	Mounting Type	Tolerance	Voltage Rating - DC	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Dielectric Material	ESR (Equivalent Series Resistance)	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Applications	Termination	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R75GR433050H0J	27.5 mm	1.083 in	90 V	Through Hole	5 %	160 V	3.3 µF	0.87 in	22.1 mm	32 mm	1.26 in	0.512 "	13 mm	Polypropylene (PP) Metallized	7.2 mOhms	AEC-Q200	-55 C	125 °C	Radial	Automotive High Frequency Switching High Pulse DV/DT	PC Pins
KEMET R75GR468050H0J	27.5 mm	1.083 in	90 V	Through Hole	5 %	160 V	6.8 µF			32 mm	1.26 in	0.709 in	18 mm	Polypropylene (PP) Metallized	7 mOhms	AEC-Q200	-55 C	125 °C	Radial	Automotive High Frequency Switching High Pulse DV/DT	PC Pins

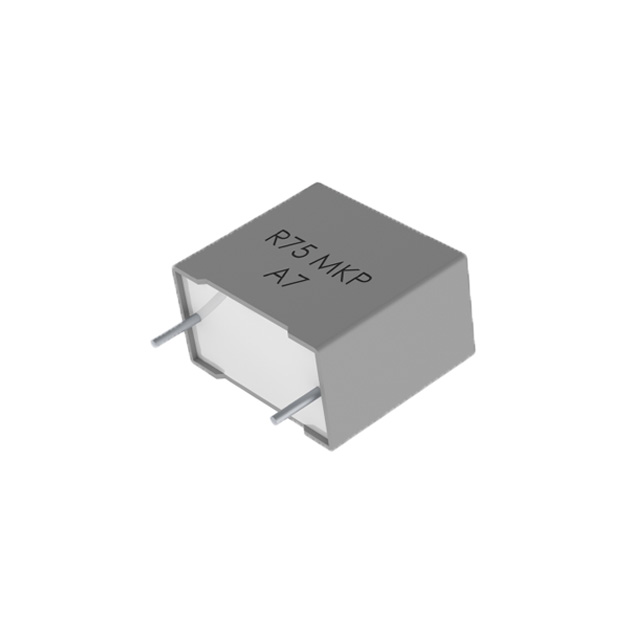

KEMET R75GR44704030J	27.5 mm	1.083 in	90 V	Through Hole	5 %	160 V	4.7 µF	0.988 "		32 mm	1.26 in	0.512 "	13 mm	Polypropylene (PP) Metallized			-55 C	105 ░C	Radial	DV/DT High Frequency High Pulse Switching	PC Pins	25.1 mm
KEMET R75GR510050H0J	27.5 mm	1.083 in	90 V	Through Hole	5 %	160 V	10 µF			32 mm	1.26 in	0.866 in	22 mm	Polypropylene (PP) Metallized	4.8 mOhms	AEC-Q200	-55 C	125 °C	Radial	Automotive High Frequency Switching High Pulse DV/DT	PC Pins		37.1 mm	1.461 in
