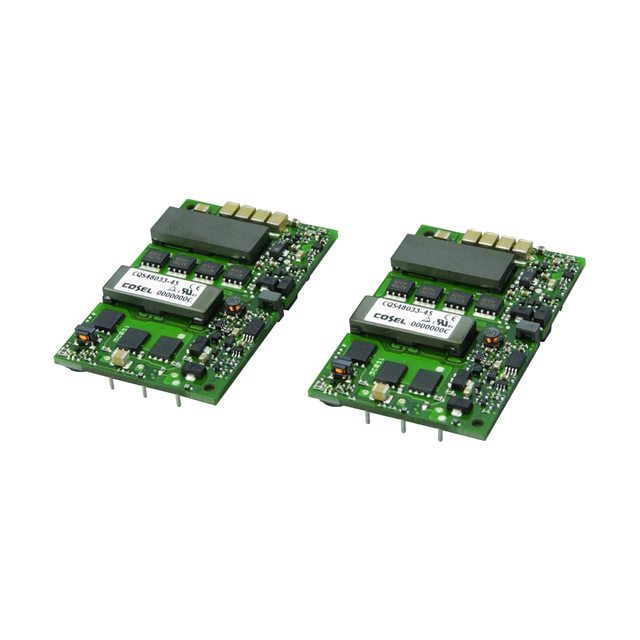

CQS48015 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER 1.5V
| Part | Voltage - Input (Max) [Max] | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Number of Outputs | Efficiency | Features | Mounting Type | Type | Current - Output (Max) [Max] | Package / Case | Voltage - Isolation | Applications | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 76 V | 1.5 V | -40 °C | 85 °C | 36 V | 1 | 87 % | OCP OTP OVP Remote On/Off | Through Hole | Isolated Module | 50 A | 8-DIP Module | 1.5 kV | ITE (Commercial) | 1.45 in | 36.8 mm | 57.9 mm | 0.33 in | 8.5 mm | 2.28 " |
