SCRH Series

Power Inductors - SMD Inductor SMD 7.1uH 1.22A0.11ohms100KHz

Manufacturer: Signal Transformer

Catalog

Power Inductors - SMD Inductor SMD 7.1uH 1.22A0.11ohms100KHz

Catalog

Power Inductors - SMD Inductor SMD 7.1uH 1.22A0.11ohms100KHz

Part	Package / Case	Inductance	Inductance Frequency - Test	Current - Saturation (Isat)	DC Resistance (DCR) [Max]	Current Rating (Amps)	Shielding	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Type	Tolerance [Max]	Tolerance [Min]
Signal Transformer SCRH123-391	Nonstandard	390 µH	100 kHz	800 mA	1.95 Ohm	0.5 A	Shielded	Surface Mount	125 °C	-40 C	12.5 mm	0.492 "	12.5 mm	0.492 "	20 %
Signal Transformer SCRH127B-470	Nonstandard	47 µH	100 kHz	2.5 A		2.62 A	Shielded	Surface Mount	125 °C	-40 C	12.5 mm	0.492 "	12.5 mm	0.492 "	20 %	8 mm	0.315 in	100 mOhm

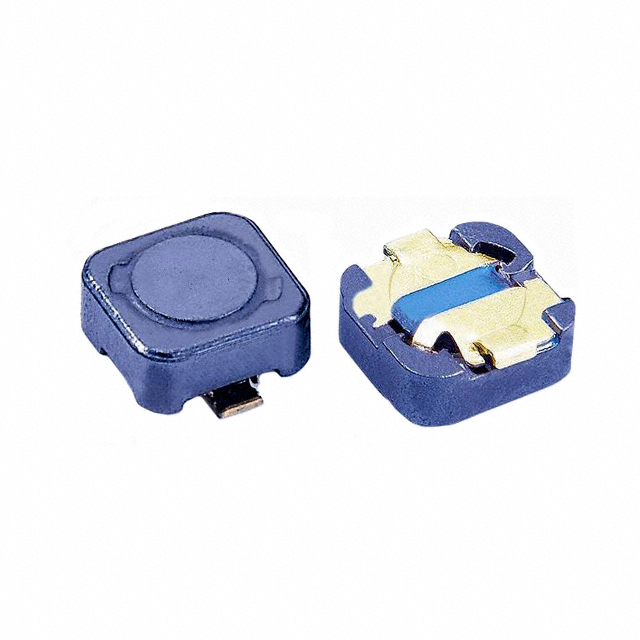

Signal Transformer SCRH62-270	Nonstandard	27 µH	100 kHz	660 mA	380 mOhm	0.89 A	Shielded	Surface Mount	125 °C	-40 C	7.1 mm	0.256 "	6.5 mm	0.28 in	20 %				0.118 "	3 mm
Signal Transformer SCRH124B-150	Nonstandard	15 µH	100 kHz	3.2 A	53 mOhm	3.5 A	Shielded	Surface Mount	125 °C	-40 C	12.5 mm	0.492 "	12.5 mm	0.492 "	20 %		0.189 "				4.8 mm

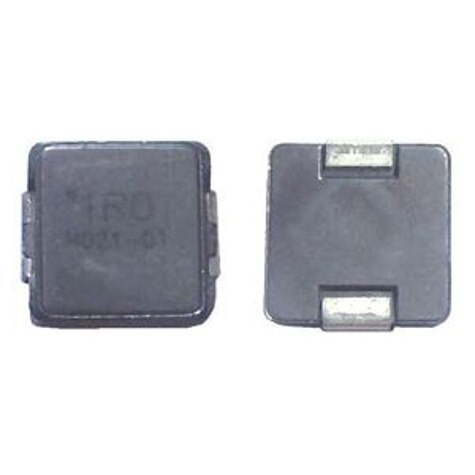

Signal Transformer SCIH1040HC-R56M	Nonstandard	560 nH	200 kHz	40 A	1.8 mOhm	25 A	Shielded	Surface Mount	125 °C	-55 C	11.5 mm	0.402 in	10.2 mm	0.453 "	20 %		0.157 in				4 mm	Wirewound

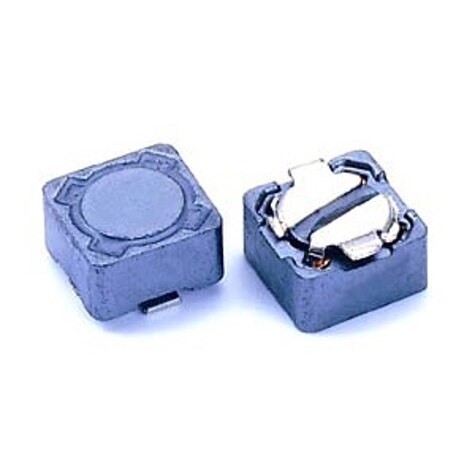

Signal Transformer SCRH74-330	Nonstandard	33 µH	1 kHz	960 mA	170 mOhm	960 mA	Shielded	Surface Mount	125 °C	-40 C	7.8 mm	0.307 "	7.8 mm	0.307 "	20 %				0.177 in	4.5 mm
Signal Transformer SCRH127B-6R1	Nonstandard	6.1 µH	100 kHz	6.6 A	17.6 mOhm	5.8 A	Shielded	Surface Mount	125 °C	-40 C	12.5 mm	0.492 "	12.5 mm	0.492 "		8 mm	0.315 in						40 %	-20 %

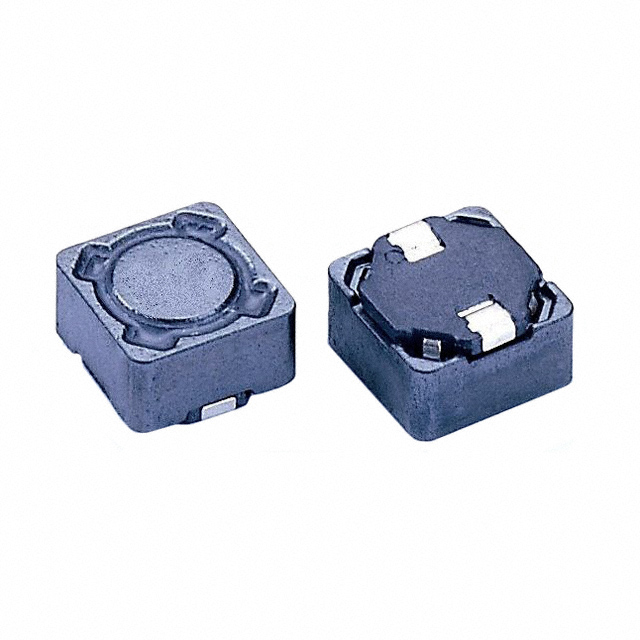

Signal Transformer SCRH74B-330	Nonstandard	33 µH	1 kHz	960 mA	170 mOhm	960 mA	Shielded	Surface Mount	125 °C	-40 C	7.8 mm	0.307 "	7.8 mm	0.307 "	20 %				0.177 in	4.5 mm
Signal Transformer SCRH62-7R1	Nonstandard	7.1 µH	100 kHz	1.22 A		1.53 A	Shielded	Surface Mount	125 °C	-40 C	7.1 mm	0.256 "	6.5 mm	0.28 in				110 mOhm	0.118 "	3 mm			40 %	-20 %
Signal Transformer SCRH123-331	Nonstandard	330 µH	100 kHz	830 mA		0.56 A	Shielded	Surface Mount	125 °C	-40 C	12.5 mm	0.492 "	12.5 mm	0.492 "	20 %			1.58 Ohm
