1571987 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

SWITCH ROCKER DPDT 5A 120V

Part	Actuator Type	Features	Electrical Life	Current Rating (Amps)	Switch Function	Voltage Rating - DC	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Mounting Type	Circuit	Voltage Rating - AC
TE Connectivity Raychem Cable Protection 1571987-8	Paddle	Epoxy Sealed Terminals	6000 Cycles	5 A	On-On	28 V	Black	17.96 mm	10.62 mm	No Marking	-30 ░C	85 °C	PC Pin	Flange Panel Mount	DPDT	120 V
TE Connectivity Raychem Cable Protection 1-1571987-1	Concave (Standard V)	Epoxy Sealed Terminals	6000 Cycles	5 A	On-On	28 V	Black	27.81 mm	16.46 mm	No Marking	-30 ░C	85 °C	Solder Lug	Flange Panel Mount	DPDT	120 V
TE Connectivity Raychem Cable Protection 1-1571987-5	Concave (Standard V)	Epoxy Sealed Terminals	6000 Cycles	5 A	On-On	28 V	Black	15.75 mm	12.7 mm	No Marking	-30 ░C	85 °C	Solder Lug	Panel Mount Snap-In	DPDT	120 V
TE Connectivity Raychem Cable Protection 3-1571987-1	Paddle	Epoxy Sealed Terminals	6000 Cycles	5 A	Mom-Off-Mom	28 V	Black	17.96 mm	10.62 mm	No Marking	-30 ░C	85 °C	PC Pin	Flange Panel Mount	DPDT	120 V

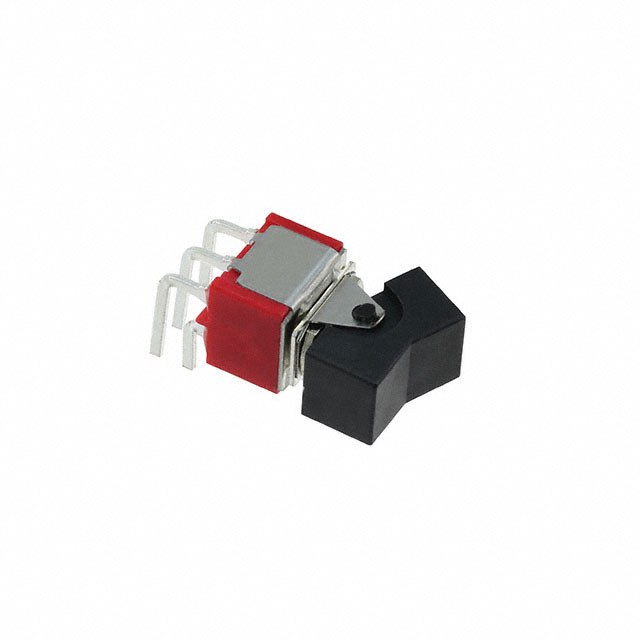

TE Connectivity Raychem Cable Protection 1571987-2	Concave (Standard V)	Epoxy Sealed Terminals	6000 Cycles	5 A	On-On	28 V	Black			No Marking	-30 ░C	85 °C	PC Pin	Through Hole Right Angle	DPDT	120 V
TE Connectivity Raychem Cable Protection 1571987-7	Concave (Standard V)	Epoxy Sealed Terminals	6000 Cycles	5 A	On-On	28 V	Black	17.96 mm	10.62 mm	No Marking	-30 ░C	85 °C	Solder Lug	Flange Panel Mount	DPDT	120 V

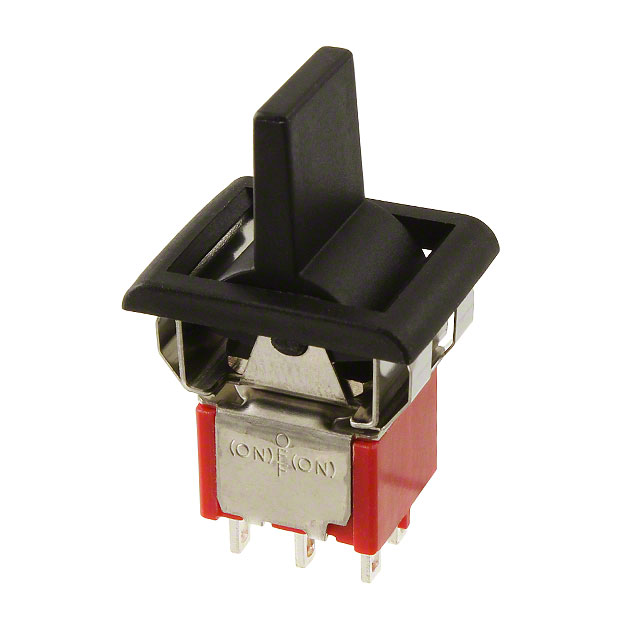

TE Connectivity Raychem Cable Protection 3-1571987-4	Paddle	Epoxy Sealed Terminals	6000 Cycles	5 A	Mom-Off-Mom	28 V	Black	15.75 mm	12.7 mm	No Marking	-30 ░C	85 °C	Solder Lug	Panel Mount Snap-In	DPDT	120 V
