189-025 Series
Manufacturer: NorComp Inc.
Beta
⌘K

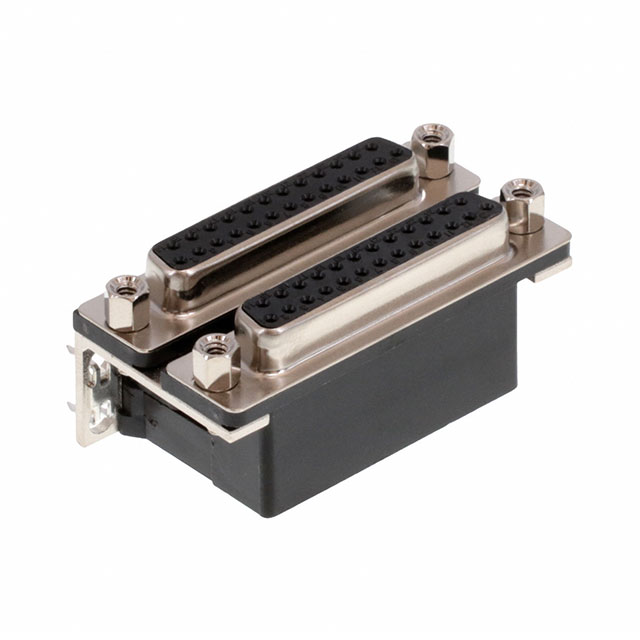

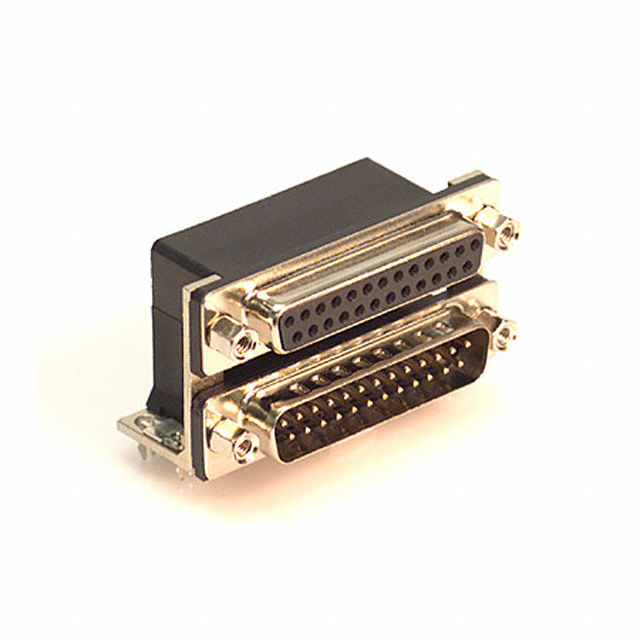

STACKED D SUB CONNECTOR, 189 SERIES, DB, RECEPTACLE, 25 CONTACTS, DB, PLUG
| Part | Contact Form | Dielectric Material | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Flange Feature | Shell Size, Connector Layout | Backset Spacing | Backset Spacing | Current Rating (Amps) | Number of Rows [custom] | Number of Positions | Contact Finish | Material Flammability Rating | Mounting Type | Features | Termination | Contact Finish Thickness | Connector Type | Connector Style | Shell Material, Finish | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Stamped | Nylon 9T Polyamide (PA9T) | Black | Brass | -55 C | 105 ░C | Signal | 4-40 Mating Side Female Screwlock | 3 (DB B) | 8.08 mm | 0.318 " | 5 A | 2 | 25 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | Board Lock Grounding Indents Shielded | Solder | Flash | Plug Male Pins Receptacle Female Sockets | D-Sub - Stacked | Nickel Plated Steel | |
 NorComp Inc. | Polyester Glass Filled | Black | Brass | -55 C | 105 ░C | Signal | 4-40 Mating Side Female Screwlock | 3 (DB B) | 8.08 mm | 0.318 " | 5 A | 2 | 25 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | Board Lock | Solder | Flash | Receptacle Female Sockets | D-Sub - Stacked | |||
 NorComp Inc. | Stamped | Nylon 9T Polyamide (PA9T) | Black | Brass | -55 C | 105 ░C | Signal | Housing/Shell | 3 (DB B) | 8.08 mm | 0.318 " | 5 A | 2 | 25 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | Grounding Indents Shielded | Solder | Flash | Plug Male Pins | D-Sub - Stacked | Nickel Plated Steel | 4-40 |
 NorComp Inc. | Stamped | Nylon 9T Polyamide (PA9T) | Black | Brass | -55 C | 105 ░C | Signal | Housing/Shell | 3 (DB B) | 8.08 mm | 0.318 " | 5 A | 2 | 25 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | Board Lock Grounding Indents Shielded | Solder | Flash | Plug Male Pins Receptacle Female Sockets | D-Sub - Stacked | Nickel Plated Steel | 4-40 |
NorComp Inc. | Stamped | Nylon 9T Polyamide (PA9T) | Black | Brass | -55 C | 105 ░C | Signal | 4-40 Mating Side Female Screwlock | 3 (DB B) | 8.08 mm | 0.318 " | 5 A | 2 | 25 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | Board Lock Shielded | Solder | Flash | Receptacle Female Sockets | D-Sub - Stacked | Nickel Plated Steel | |
NorComp Inc. | Stamped | Nylon 9T Polyamide (PA9T) | Black | Brass | -55 C | 105 ░C | Signal | Housing/Shell | 3 (DB B) | 8.08 mm | 0.318 " | 5 A | 2 | 25 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | Board Lock Grounding Indents Shielded | Solder | Flash | Plug Male Pins Receptacle Female Sockets | D-Sub - Stacked | Nickel Plated Steel | 4-40 |
NorComp Inc. | Stamped | Nylon 9T Polyamide (PA9T) | Black | Brass | -55 C | 105 ░C | Signal | Housing/Shell | 3 (DB B) | 8.08 mm | 0.318 " | 5 A | 2 | 25 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | Shielded | Solder | Flash | Receptacle Female Sockets | D-Sub - Stacked | Nickel Plated Steel | 4-40 |
NorComp Inc. | Stamped | Nylon 9T Polyamide (PA9T) | Black | Brass | -55 C | 105 ░C | Signal | 4-40 Mating Side Female Screwlock | 3 (DB B) | 8.08 mm | 0.318 " | 5 A | 2 | 25 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | Grounding Indents Shielded | Solder | Flash | Plug Male Pins | D-Sub - Stacked | Nickel Plated Steel | |
NorComp Inc. | Stamped | Nylon 9T Polyamide (PA9T) | Black | Brass | -55 C | 105 ░C | Signal | 4-40 Mating Side Female Screwlock | 3 (DB B) | 8.08 mm | 0.318 " | 5 A | 2 | 25 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | Shielded | Solder | Flash | Receptacle Female Sockets | D-Sub - Stacked | Nickel Plated Steel | |
NorComp Inc. | Stamped | Nylon 9T Polyamide (PA9T) | Black | Brass | -55 C | 105 ░C | Signal | 4-40 Mating Side Female Screwlock | 3 (DB B) | 8.08 mm | 0.318 " | 5 A | 2 | 25 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | Board Lock Grounding Indents Shielded | Solder | Flash | Plug Male Pins Receptacle Female Sockets | D-Sub - Stacked | Nickel Plated Steel |
