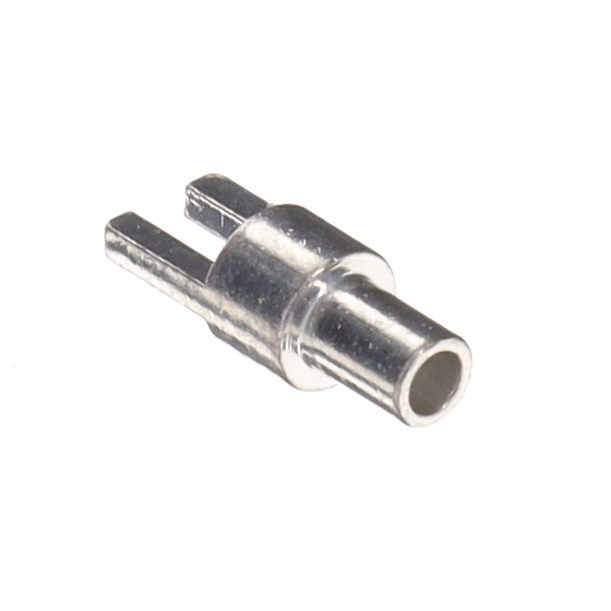

2362-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC .094DIA TINLEAD
| Part | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Type | Mounting Type | Termination | Board Thickness | Board Thickness | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Insulation | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Style | Length - Overall [x] | Length - Overall | Contact Finish | Length - Above Flange [x] | Length - Above Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 2.13 mm | 0.084 in | PC Pin | Through Hole | Swage | 0.062 in | 1.57 mm | Brass Alloy | 300 µin | 7.62 µm | Non-Insulated | 1.7 mm | 0.067 " | Single End Slotted | 0.24 " | 6.1 mm | Tin-Lead | 3.96 mm | 0.156 in | 2.39 mm | 0.094 in |
