0381-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

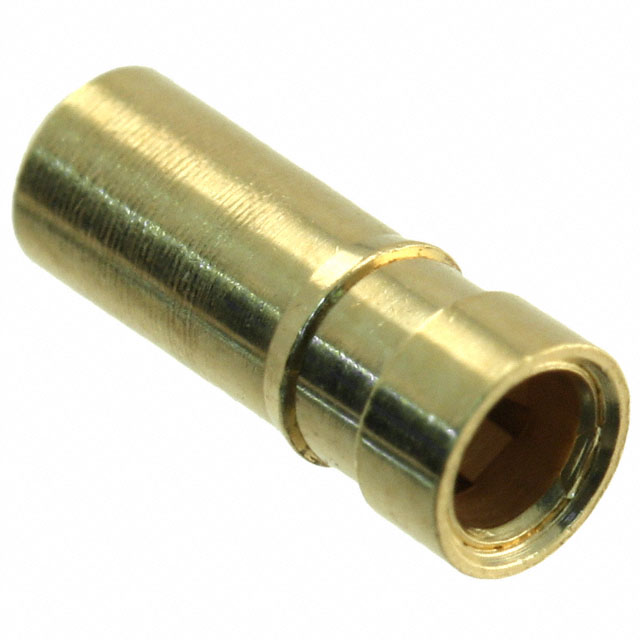

CONN PIN RCPT .045-.065 PRESSFIT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Length - Overall | Length - Overall | Flange Diameter [diameter] | Flange Diameter [diameter] | Accepts Pin Diameter [Min] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Min] [diameter] | Contact Finish Thickness | Contact Finish Thickness | Socket Depth | Socket Depth | Contact Material | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Tail Type | Termination | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.29 in | 7.37 mm | 0.11 in | 2.79 mm | 0.045 " | 1.65 mm | 0.065 " | 1.14 mm | 200 Áin | 5.08 Ám | 0.255 in | 6.48 mm | Beryllium Copper | 2.24 mm | 0.088 " | No Tail | Press-Fit | Tin-Lead | 0.104 in | 2.64 mm |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.29 in | 7.37 mm | 0.11 in | 2.79 mm | 0.045 " | 1.65 mm | 0.065 " | 1.14 mm | 30 Áin | 0.76 Ám | 0.255 in | 6.48 mm | Beryllium Copper | 2.24 mm | 0.088 " | No Tail | Press-Fit | Gold | 0.104 in | 2.64 mm |
