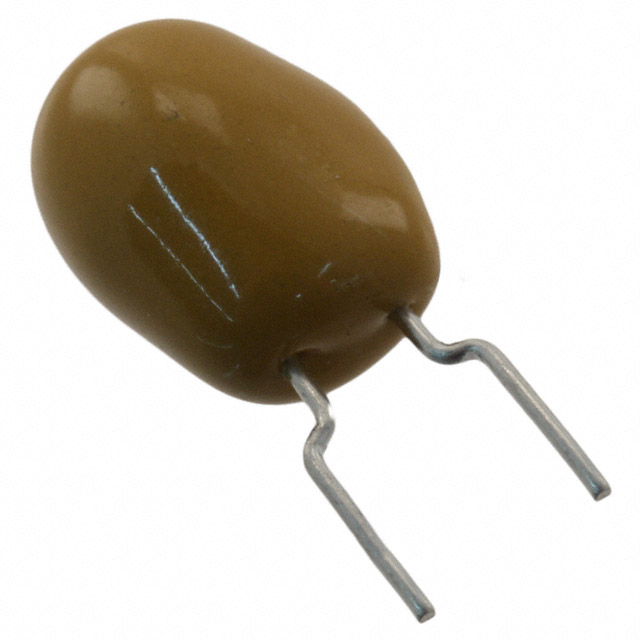

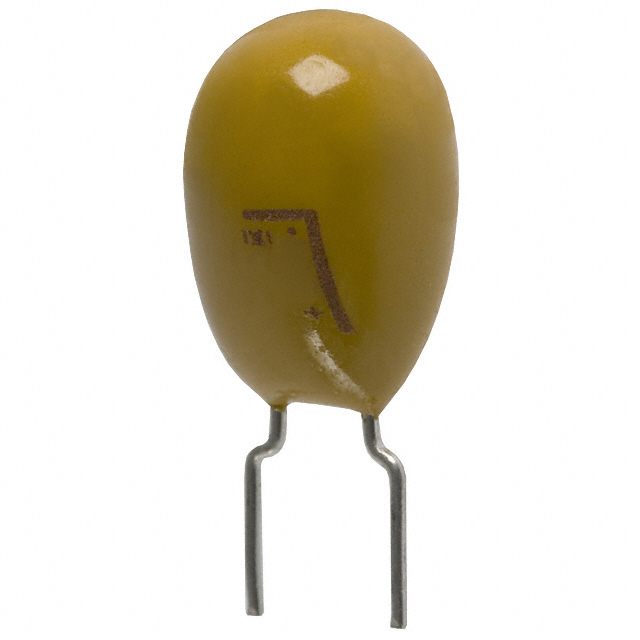

T356M Series

Manufacturer: KEMET

Catalog

CAP TANT 100UF 10% 20V RADIAL

Part	Features	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Type	Capacitance	Lead Spacing	Lead Spacing	Manufacturer Size Code	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Mounting Type	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET T356M107K020AS	General Purpose	0.402 in	10.2 mm	600 mOhm	Conformal Coated	100 µF	0.2 in	5.08 mm	M	Radial	-55 C	125 °C	10 %	Through Hole	20 V
KEMET T356M226K050AT	General Purpose	0.402 in	10.2 mm	1 Ohms	Conformal Coated	22 µF	0.2 in	5.08 mm	M	Radial	-55 C	125 °C	10 %	Through Hole	50 VDC	18.6 mm	0.732 in
KEMET T356M226M050AS	General Purpose	0.402 in	10.2 mm	1 Ohm	Conformal Coated	22 µF	0.2 in	5.08 mm	M	Radial	-55 C	125 °C	20 %	Through Hole	50 VDC
KEMET T356M476M035AT	General Purpose	0.402 in	10.2 mm	800 mOhm	Conformal Coated	47 µF	0.2 in	5.08 mm	M	Radial	-55 C	125 °C	20 %	Through Hole	35 V
KEMET T356M107K020AT	General Purpose	0.402 in	10.2 mm	600 mOhm	Conformal Coated	100 µF	0.2 in	5.08 mm	M	Radial	-55 C	125 °C	10 %	Through Hole	20 V
KEMET T356M476K035AS	General Purpose	0.402 in	10.2 mm	800 mOhm	Conformal Coated	47 µF	0.2 in	5.08 mm	M	Radial	-55 C	125 °C	10 %	Through Hole	35 V
