225395 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

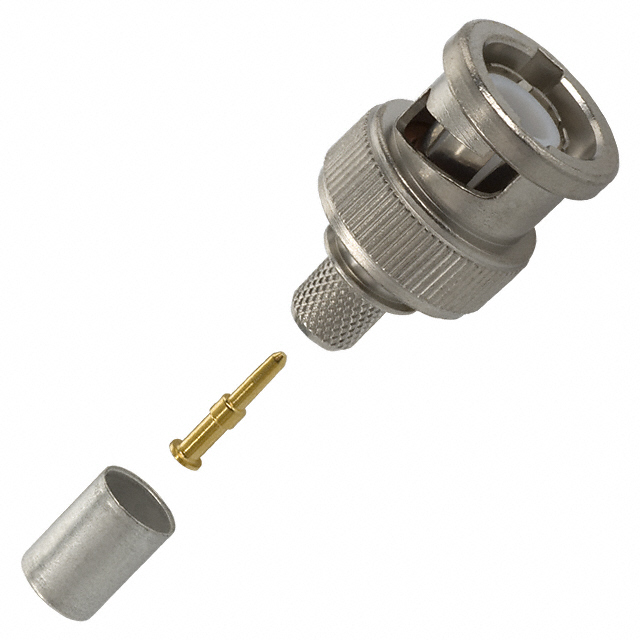

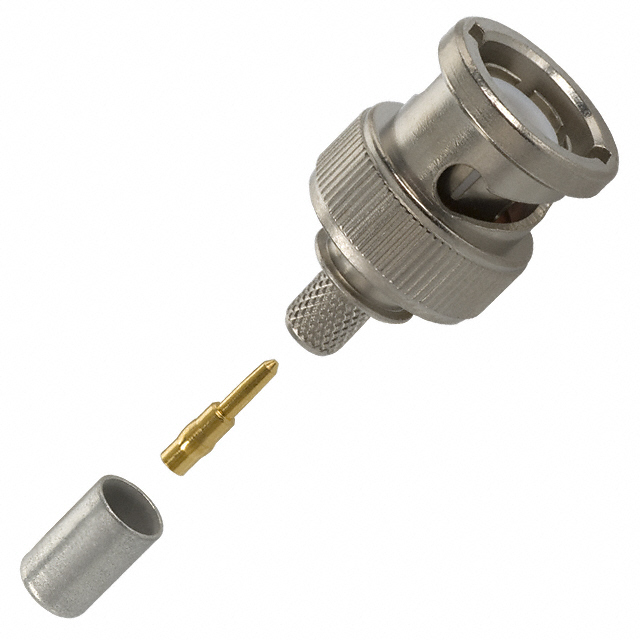

CONN BNC PLUG STR 50 OHM CRIMP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Number of Ports | Body Finish | Contact Termination | Connector Style | Shield Termination | Center Contact Plating | Impedance | Frequency - Max [Max] | Center Contact Material | Cable Group | Mounting Type | Mating Cycles | Includes | Body Material | Dielectric Material | Fastening Type | Housing Color | Insertion Loss | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 85 °C | -55 °C | 500 V | 1 | Nickel | Crimp | BNC | Crimp | Gold | 50 Ohms | 4 GHz | Brass | Belden 88240 RG-58 | Free Hanging (In-Line) | 500 | 1 Connector 1 Contact 1 Ferrule | Brass | Polytetrafluoroethylene (PTFE) | Bayonet Lock | Silver | 0.2 dB | Male Pin Plug |
 TE Connectivity Raychem Cable Protection | 85 °C | -55 °C | 500 V | 1 | Nickel | Crimp | BNC | Crimp | Gold | 50 Ohms | 4 GHz | Brass | 59A 59B 62 62A 62B RG-59 | Free Hanging (In-Line) | 500 | 1 Connector 1 Contact 1 Ferrule | Brass | Polytetrafluoroethylene (PTFE) | Bayonet Lock | Silver | 0.2 dB | Male Pin Plug |
TE Connectivity Raychem Cable Protection | 85 °C | -55 °C | 500 V | 1 | Nickel | Crimp | BNC | Crimp | Gold | 50 Ohms | 4 GHz | Brass | RG-174 | Free Hanging (In-Line) | 500 | 1 Connector 1 Contact 1 Ferrule | Brass | Polytetrafluoroethylene (PTFE) | Bayonet Lock | Silver | 0.2 dB | Male Pin Plug |
 TE Connectivity Raychem Cable Protection | 85 °C | -55 °C | 500 V | 1 | Nickel | Crimp | BNC | Crimp | Gold | 50 Ohms | 4 GHz | Brass | 58A 58B 58C RG-58 | Free Hanging (In-Line) | 500 | 1 Connector 1 Contact 1 Ferrule | Brass | Polytetrafluoroethylene (PTFE) | Bayonet Lock | Silver | 0.2 dB | Male Pin Plug |
