TC-CAPS Series

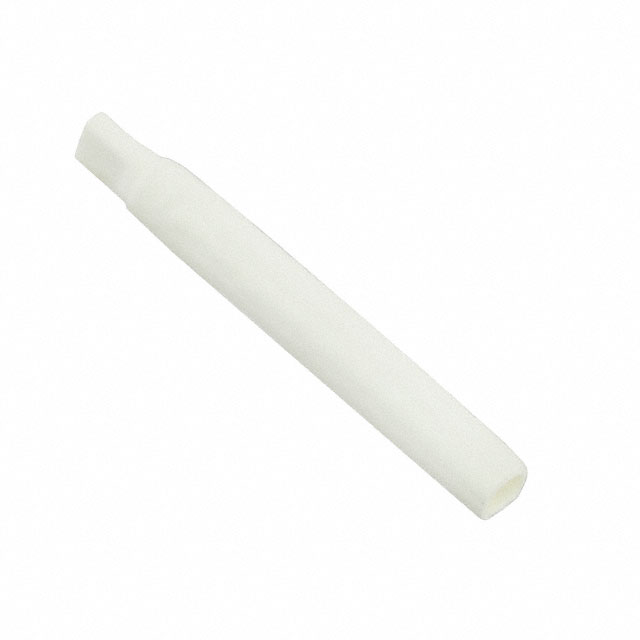

Heat Shrink Cable Boots & End Caps TC-CAPS-4003- 2CS5369

Manufacturer: TE Connectivity AMP Connectors

Catalog

Heat Shrink Cable Boots & End Caps TC-CAPS-4003- 2CS5369

Catalog

Heat Shrink Cable Boots & End Caps TC-CAPS-4003- 2CS5369

Part	Color	Type	Material	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Total Length Recovered [x]	Total Length Recovered [x]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Total Length Supplied	Total Length Supplied	Total Length Recovered	Total Length Recovered	Features
TE Connectivity AMP Connectors TC-CAPS-4001-9CS7380	White	Cap	Polyolefin (PO) Semi-Rigid	0.03 in	0.76 mm	0.4 in	10.16 mm	0.063 in	1.6 mm	0.752 in	19.1 mm
TE Connectivity AMP Connectors TC-CAPS-4003-2CS5482	Red	Cap	Polyolefin (PO) Semi-Rigid	0.05 in	1.27 mm			0.125 in	3.18 mm	1 in	25.4 mm	13.97 mm	0.55 in
TE Connectivity AMP Connectors TC-CAPS-4001-9	White	Cap	Polyolefin (PO) Semi-Rigid	0.03 in	0.76 mm	0.4 in	10.16 mm	0.063 in	1.6 mm	0.752 in	19.1 mm			Abrasion Resistant Flame Retardant Flex Resistant Vibration Resistant
TE Connectivity AMP Connectors TC-CAPS-4003-2CS5369	Red	Cap	Polyolefin (PO) Semi-Rigid	0.05 in	1.27 mm			0.125 in	3.18 mm	1 in	25.4 mm	13.97 mm	0.55 in
TE Connectivity AMP Connectors TC-CAPS-4001-9-CS7475	White	Cap	Polyolefin (PO) Semi-Rigid	0.03 in	0.76 mm	0.4 in	10.16 mm	0.063 in	1.6 mm	0.752 in	19.1 mm
TE Connectivity AMP Connectors TC-CAPS-4005-8-CS5504	Gray	Cap	Polyolefin (PO) Semi-Rigid	0.1 in	2.54 mm			0.25 in	6.35 mm	1.125 in	28.58 mm	13.97 mm	0.55 in
TE Connectivity AMP Connectors TC-CAPS-4003-2CS5336	Red	Cap	Polyolefin (PO) Semi-Rigid	0.05 in	1.27 mm			0.125 in	3.18 mm	1 in	25.4 mm	13.97 mm	0.55 in
TE Connectivity AMP Connectors TC-CAPS-4001-9-CS5482	White	Cap	Polyolefin (PO) Semi-Rigid	0.03 in	0.76 mm	0.4 in	10.16 mm	0.063 in	1.6 mm	0.752 in	19.1 mm
TE Connectivity AMP Connectors TC-CAPS-4003-2CS6994	Red	Cap	Polyolefin (PO) Semi-Rigid	0.05 in	1.27 mm			0.125 in	3.18 mm	1 in	25.4 mm	13.97 mm	0.55 in
TE Connectivity AMP Connectors TC-CAPS-4001-9CS5414	White	Cap	Polyolefin (PO) Semi-Rigid	0.03 in	0.76 mm	0.4 in	10.16 mm	0.063 in	1.6 mm	0.752 in	19.1 mm
