09K1P4 Series
Manufacturer: Rosenberger
Beta
⌘K

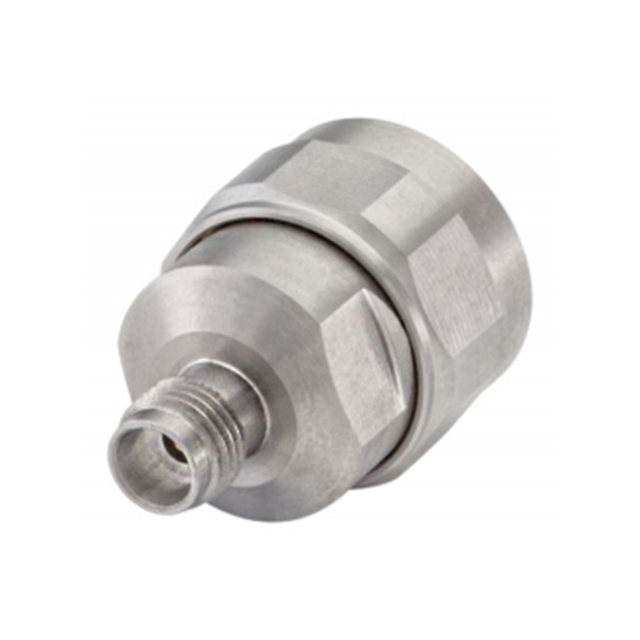

PRECISION 2.40 ADAPTER
| Part | Mating Cycles | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Body Material | Body Finish | Insertion Loss | Frequency - Max [Max] | Convert From (Adapter End) | Convert From (Adapter End) | Adapter Type | Adapter Series [Min] | Adapter Series [Max] | Mounting Type | Style | Convert To (Adapter End) | Impedance | Conversion Type | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 3000 | Polyetheretherketone (PEEK) | 85 °C | -40 C | Beryllium Copper | Stainless Steel | Gold | 0.32 dB | 40 GHz | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Plug to Jack | RPC-2.40 | RJC-SL | Free Hanging (In-Line) | Straight | SL Plug Male Pin | 50 Ohms | Between Series | Gold |
