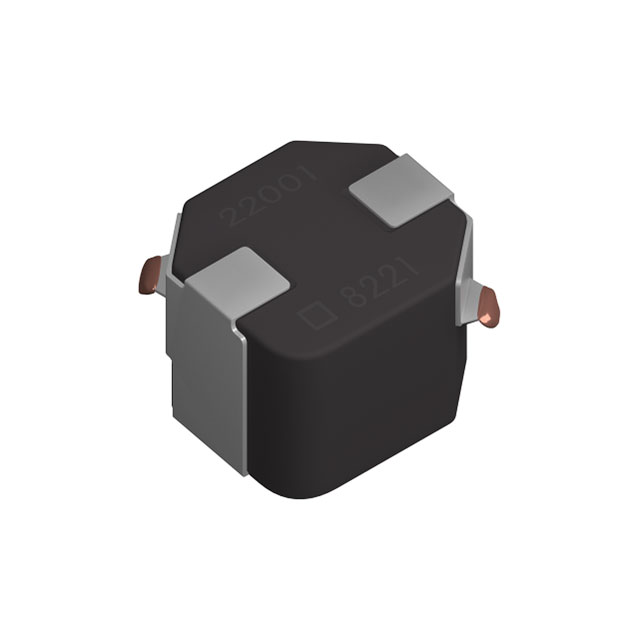

SPM7054VT Series

Catalog

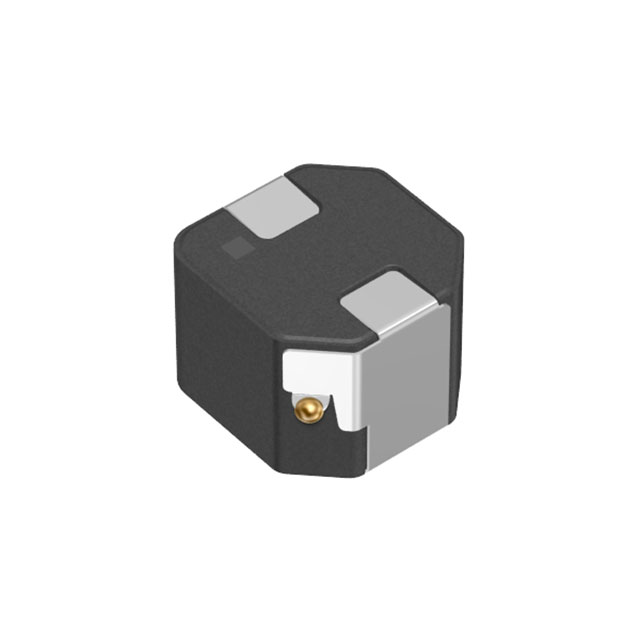

POW INDUCTOR, AEC-Q200, 10UH, SHLD, 11.8A ROHS COMPLIANT: YES

Part	Package / Case	Inductance	Mounting Type	Inductance Frequency - Test	Current - Saturation (Isat)	DC Resistance (DCR)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material - Core	Type	Shielding	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Ratings	Current Rating (Amps)
TDK Corporation SPM7054VT-100M-D	Nonstandard	10 µH	Surface Mount	100 kHz	8.7 A	36.9 mOhm	155 C	-55 C	7.5 mm	0.276 in	0.295 "	7 mm	Metal Composite	Drum Core Wirewound	Shielded	7054	5.4 mm	0.213 in	20 %	AEC-Q200	5.5 Amps
TDK Corporation SPM7054VT-330M-D	Nonstandard	33 µH	Surface Mount	100 kHz	3.6 A	97.7 mOhm	155 C	-55 C	7.5 mm	0.276 in	0.295 "	7 mm	Metal Composite	Drum Core Wirewound	Shielded	7054	5.4 mm	0.213 in	20 %	AEC-Q200	3.4 A
TDK Corporation SPM7054VT-150M-D	Nonstandard	15 µH	Surface Mount	100 kHz	5 A	54.8 mOhm	155 C	-55 C	7.5 mm	0.276 in	0.295 "	7 mm	Metal Composite	Drum Core Wirewound	Shielded	7054	5.4 mm	0.213 in	20 %	AEC-Q200	4.5 A
TDK Corporation SPM7054VT-3R3M-D	Nonstandard	3.3 µH	Surface Mount	100 kHz	13.7 A	11.2 mOhm	155 C	-55 C	7.5 mm	0.276 in	0.295 "	7 mm	Metal Composite	Drum Core Wirewound	Shielded	7054	5.4 mm	0.213 in	20 %	AEC-Q200	9.5 A
TDK Corporation SPM7054VT-680M-D	Nonstandard	68 µH	Surface Mount	100 kHz	3.1 A	222 mOhm	155 C	-55 C	7.5 mm	0.276 in	0.295 "	7 mm	Metal Composite	Drum Core Wirewound	Shielded	7054	5.4 mm	0.213 in	20 %	AEC-Q200	2.1 A
TDK Corporation SPM7054VT-1R0M-D	Nonstandard	1 µH	Surface Mount	100 kHz	19.3 A	4.6 mOhm	155 C	-55 C	7.5 mm	0.276 in	0.295 "	7 mm	Metal Composite	Drum Core Wirewound	Shielded	7054	5.4 mm	0.213 in	20 %	AEC-Q200	14.9 A
TDK Corporation SPM7054VT-470M-D	Nonstandard	47 µH	Surface Mount	100 kHz	3.4 A	162 mOhm	155 C	-55 C	7.5 mm	0.276 in	0.295 "	7 mm	Metal Composite	Drum Core Wirewound	Shielded	7054	5.4 mm	0.213 in	20 %	AEC-Q200	2.5 A
TDK Corporation SPM7054VT-4R7M-D	Nonstandard	4.7 ÁH	Surface Mount	100 kHz	11.2 A	16.6 mOhm	155 C	-55 C	7.5 mm	0.276 in	0.295 "	7 mm	Metal Composite	Drum Core Wirewound	Shielded	7054	5.4 mm	0.213 in	20 %	AEC-Q200	7.8 A
TDK Corporation SPM7054VT-101M-D	Nonstandard	100 µH	Surface Mount	100 kHz	2.4 A	348 mOhm	155 C	-55 C	7.5 mm	0.276 in	0.295 "	7 mm	Metal Composite	Drum Core Wirewound	Shielded	7054	5.4 mm	0.213 in	20 %	AEC-Q200	1.8 A
TDK Corporation SPM7054VT-2R2M-D	Nonstandard	2.2 µH	Surface Mount	100 kHz	14.1 A	7.4 mOhm	155 C	-55 C	7.5 mm	0.276 in	0.295 "	7 mm	Metal Composite	Drum Core Wirewound	Shielded	7054	5.4 mm	0.213 in	20 %	AEC-Q200	12 Amps
