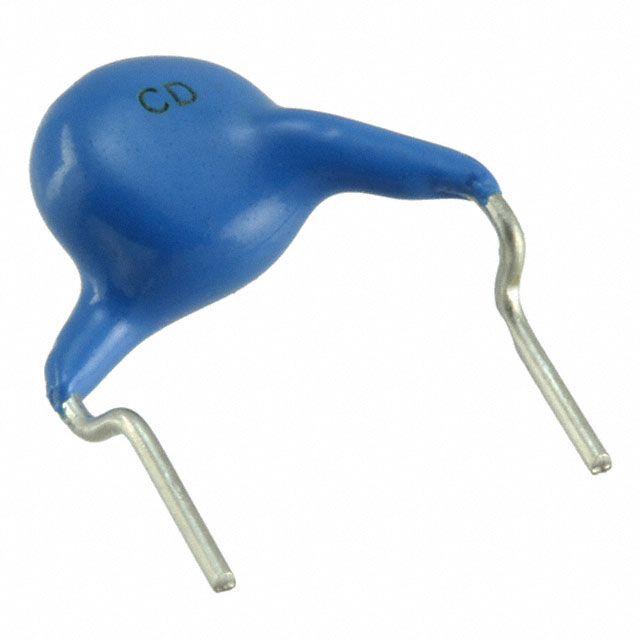

CD Series

Catalog

SAFETY CAPACITORS D: 6.5MM X1/Y1 690PF E 20% LS:10MM

Part	Tolerance	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Voltage - Rated	Temperature Coefficient	Ratings [custom]	Ratings [custom]	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Capacitance	Lead Style	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max)	Size / Dimension
TDK Corporation CD45-E2GA681M-VKA	20 %	High Voltage	0.413 "	10.5 mm	Through Hole	440 VAC	E	X1	Y1	0.394 in	10 mm	105 ░C	-25 °C	Safety	680 pF	Formed Leads - Kinked	Disc Radial
TDK Corporation CD70-B2GA151KYVKA	10 %	High Voltage			Through Hole	440 VAC	B	X1	Y1	0.394 in	10 mm	105 ░C	-25 °C	Safety	150 pF	Formed Leads	Disc Radial	11 mm	0.433 in	0.276 in	7 mm
TDK Corporation CD45SL2GA100J-VKA	5 %	High Voltage			Through Hole	400 V	SL	X1	Y1	0.394 in	10 mm	125 °C	-25 °C	Safety	10 pF	Formed Leads - Kinked	Disc Radial	11 mm	0.433 in	0.276 in	7 mm
TDK Corporation CD70-B2GA101KYNKA	10 %	High Voltage			Through Hole	440 VAC	B	X1	Y1	0.394 in	10 mm	105 ░C	-25 °C	Safety	100 pF	Formed Leads - Kinked	Disc Radial	11 mm	0.433 in	0.276 in	7 mm
TDK Corporation CD45-B2GA151K-GKA	10 %	High Voltage	0.413 "	10.5 mm	Through Hole	440 VAC	B	X1	Y1	0.394 in	10 mm	85 °C	-25 °C	Safety	150 pF	Formed Leads - Kinked	Disc Radial
TDK Corporation CD45-B2GA471K-VKA	10 %	High Voltage	0.472 in		Through Hole	440 VAC	B	X1	Y1	0.394 in	10 mm	85 °C	-25 °C	Safety	470 pF	Formed Leads - Kinked	Disc Radial			0.315 in	8 mm	12 mm

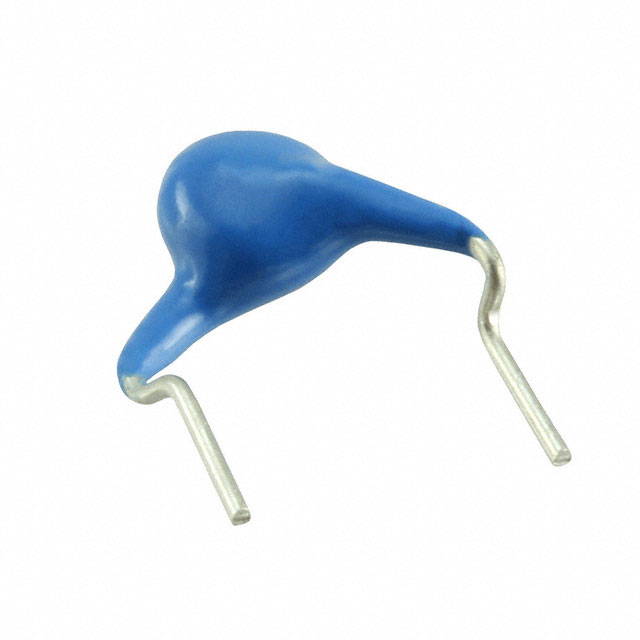

TDK Corporation CD45-B2GA221K-NKA	10 %	High Voltage	0.413 "	10.5 mm	Through Hole	440 VAC	B	X1	Y1	0.394 in	10 mm	85 °C	-25 °C	Safety	220 pF	Formed Leads - Kinked	Disc Radial

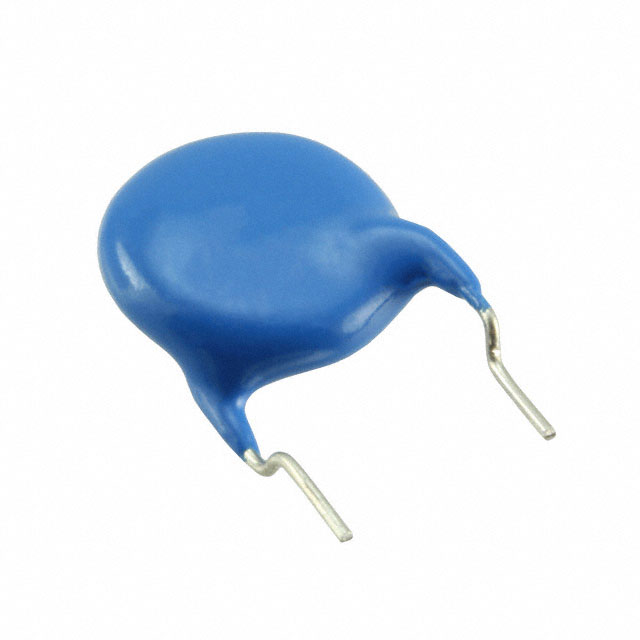

TDK Corporation CD45-E2GA472M-NKA	20 %	High Voltage		17 mm	Through Hole	440 VAC	E	X1	Y1	0.394 in	10 mm	105 ░C	-25 °C	Safety	0.0047 µF	Formed Leads - Kinked	Disc Radial		0.669 "	0.512 in			13 mm
TDK Corporation CD45SL2GA330J-GKA	5 %	High Voltage			Through Hole	400 V	SL	X1	Y1	0.394 in	10 mm	125 °C	-25 °C	Safety	33 pF	Formed Leads - Kinked	Disc Radial	11 mm	0.433 in	0.276 in	7 mm
TDK Corporation CD45SL2GA100J-GKA	5 %	High Voltage			Through Hole	400 V	SL	X1	Y1	0.394 in	10 mm	125 °C	-25 °C	Safety	10 pF	Formed Leads - Kinked	Disc Radial	11 mm	0.433 in	0.276 in	7 mm
