ZFS-85000 Series

Catalog

LED ENG RED LINEAR STRIP 12V 5M

Part	Configuration	Lens Type	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Viewing Angle	Temperature - Test	Wavelength	Luminous Flux @ Current/Temperature	Type	Lumens/Watt @ Current - Test	Height [z]	Current - Test	Color	CCT (K)

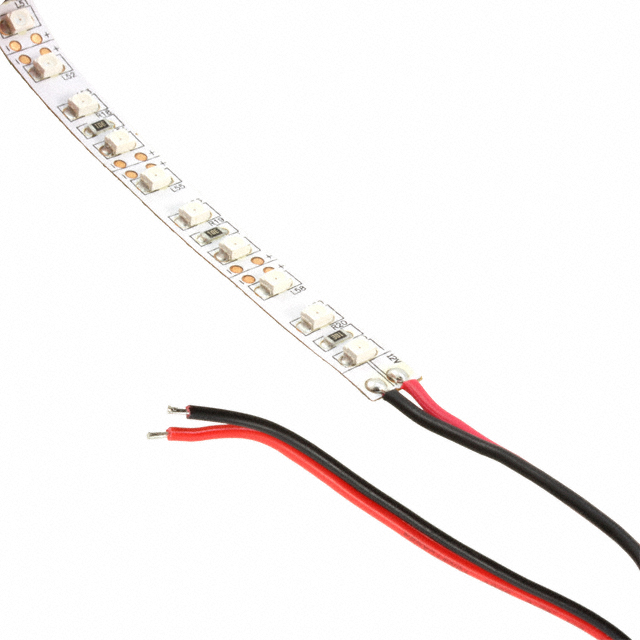

JKL Components Corp. ZFS-85000HD-R	Linear Light Strip Flexible	Flat	12 V	8 mm	5000 mm	4.4 A	120 °	25 °C	626 nm	1820 lm	LED Engine	35 lm/W	2.5 mm	4.4 A	Red

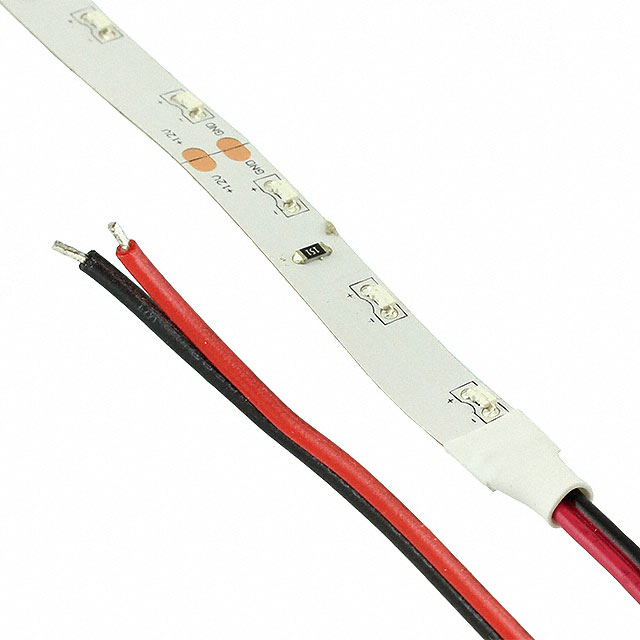

JKL Components Corp. ZFS-85000SV-CW	Linear Light Strip Flexible	Flat	12 V	8 mm	5000 mm		120 °	25 °C		1200 lm	LED Engine	50 lm/W		2 A	Cool White	7500 K

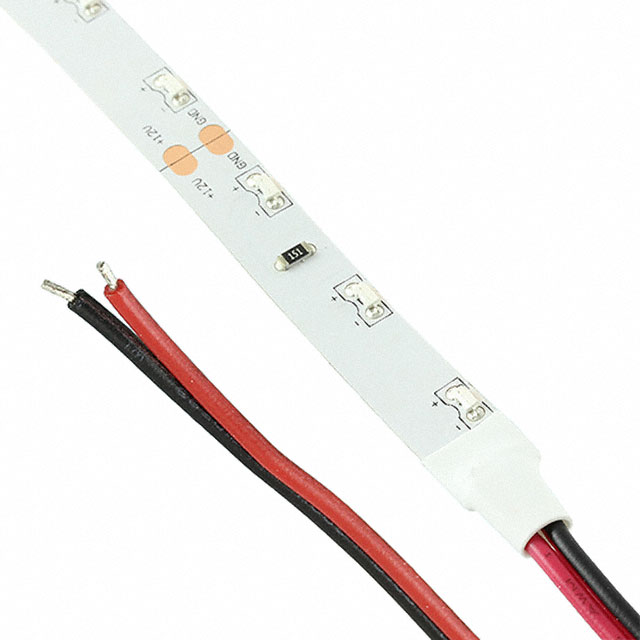

JKL Components Corp. ZFS-85000SV-WW	Linear Light Strip Flexible	Flat	12 V	8 mm	5000 mm		120 °	25 °C		1050 lm	LED Engine	44 lm/W		2 A	Warm White	2750 K

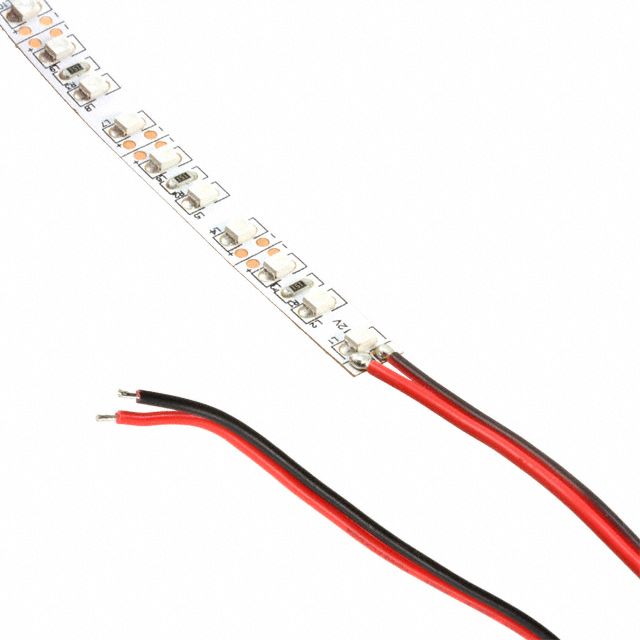

JKL Components Corp. ZFS-85000HD-B	Linear Light Strip Flexible	Flat	12 V	8 mm	5000 mm	4.4 A	120 °	25 °C	460 nm	1820 lm	LED Engine	35 lm/W	2.5 mm	4.4 A	Blue
JKL Components Corp. ZFS-85000HD-WW	Linear Light Strip Flexible	Flat	12 V	8 mm	5000 mm		120 °	25 °C		1650 lm	LED Engine	31 lm/W	2.5 mm	4.4 A	Warm White	3500 K

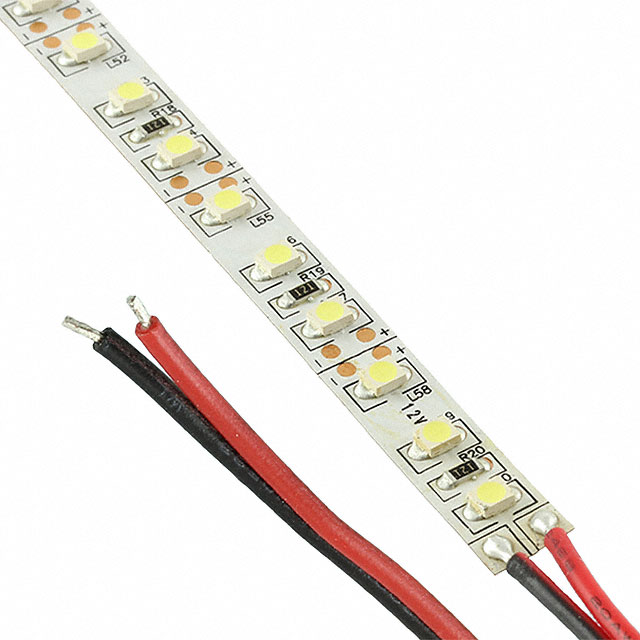

JKL Components Corp. ZFS-85000HD-CW	Linear Light Strip Flexible	Flat	12 V	8 mm	5000 mm		120 °	25 °C		1800 lm	LED Engine	34 lm/W	2.5 mm	4.4 A	Cool White	6250 K
