807-033 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 66POS 0.156
| Part | Contact Material | Mounting Type | Pitch | Pitch | Termination Rows | Card Type | Gender | Contact Finish | Material - Insulation | Contact Type | Number of Positions/Bay/Row | Read Out | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Color | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions [custom] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

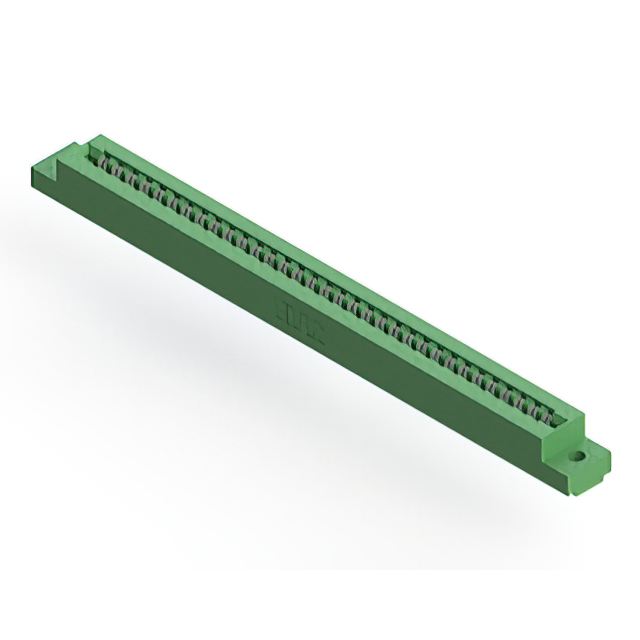

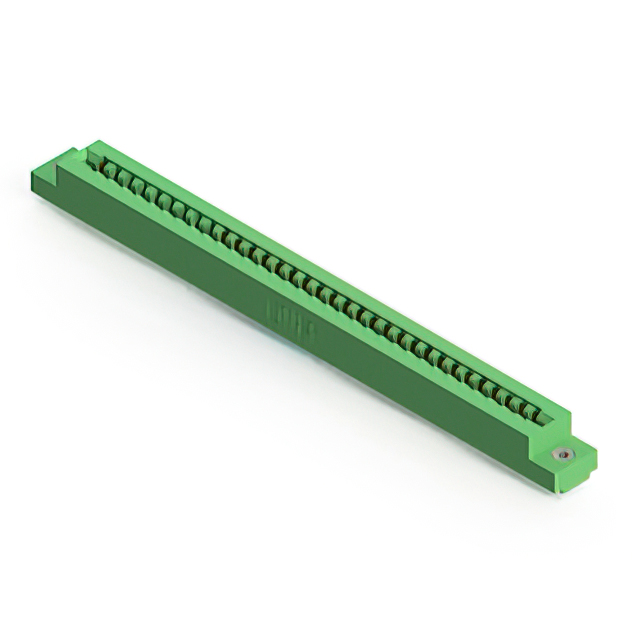

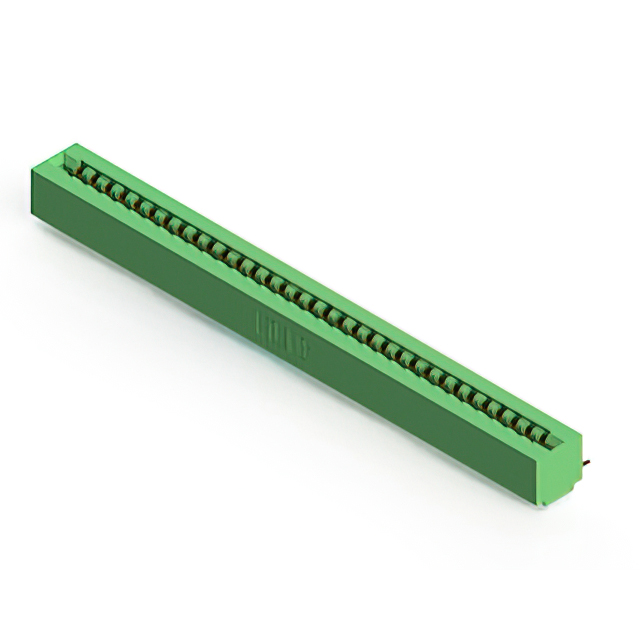

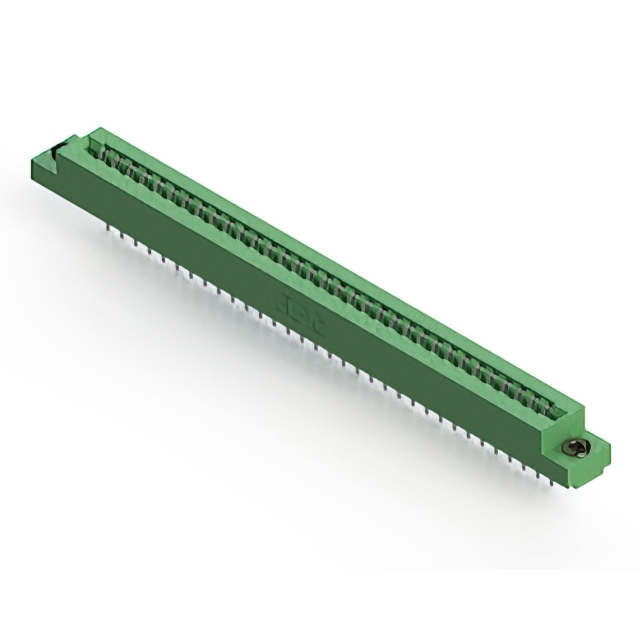

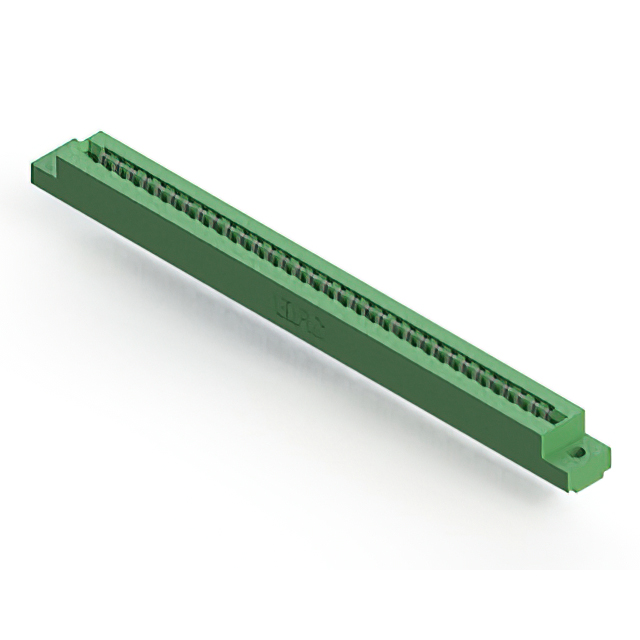

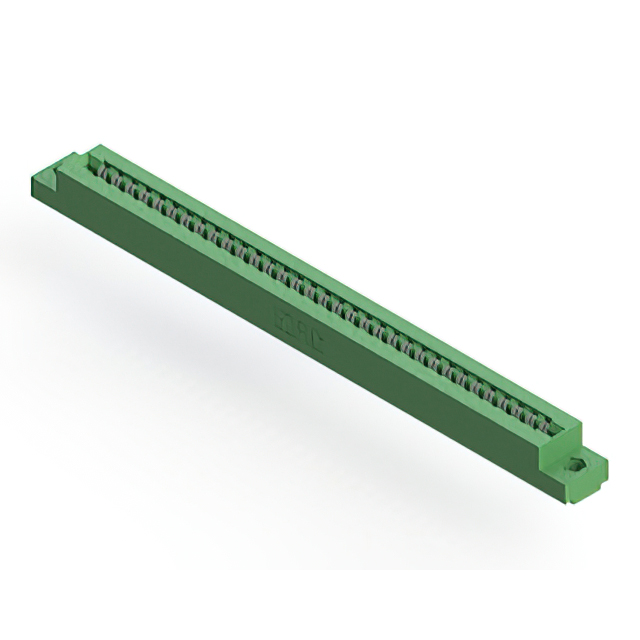

 EDAC Inc. | Copper Alloy | Right Angle Through Hole | 3.96 mm | 0.156 in | 1 | Non Specified - Dual Edge | Female | Gold | Diallyl Phthalate (DAP) | Semi Bellows | 33 | Dual | 2 | 0.25 Ám | 10 Áin | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 66 | 125 °C | -40 C | Solder | |||||
 EDAC Inc. | Copper Alloy | Through Hole | 3.96 mm | 0.156 in | 1 | Non Specified - Single Edge | Female | Tin | Diallyl Phthalate (DAP) | Semi Bellows | 33 | Single | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 33 | 1 | ||||
 EDAC Inc. | Copper Alloy | Through Hole | 3.96 mm | 0.156 in | 1 | Non Specified - Dual Edge | Female | Gold | Diallyl Phthalate (DAP) | Semi Bellows | 33 | Dual | 2 | 0.25 Ám | 10 Áin | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 66 | 125 °C | -40 C | Wire Wrap | |||||
 EDAC Inc. | Copper Alloy | Through Hole | 3.96 mm | 0.156 in | 1 | Non Specified - Single Edge | Female | Tin | Diallyl Phthalate (DAP) | Semi Bellows | 33 | Single | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder Eyelet(s) | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 33 | 1 | ||||
 EDAC Inc. | Copper Alloy | Right Angle Through Hole | 3.96 mm | 0.156 in | 1 | Non Specified - Single Edge | Female | Gold | Diallyl Phthalate (DAP) | Semi Bellows | 33 | Single | 0.25 Ám | 10 Áin | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 33 | 1 | ||||
 EDAC Inc. | Copper Alloy | Through Hole | 3.96 mm | 0.156 in | 1 | Non Specified - Dual Edge | Female | Tin | Diallyl Phthalate (DAP) | Semi Bellows | 33 | Dual | 2 | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 66 | 125 °C | -40 C | Solder Eyelet(s) | 0.128 " | Side Mount Opening Unthreaded | 3.25 mm | ||||
 EDAC Inc. | Copper Alloy | Right Angle Through Hole | 3.96 mm | 0.156 in | 1 | Non Specified - Dual Edge | Female | Tin | Diallyl Phthalate (DAP) | Semi Bellows | 33 | Dual | 2 | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 66 | 125 °C | -40 C | Solder | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | ||||
 EDAC Inc. | Copper Alloy | Through Hole | 3.96 mm | 0.156 in | 1 | Non Specified - Single Edge | Female | Gold | Diallyl Phthalate (DAP) | Semi Bellows | 33 | Single | 0.25 Ám | 10 Áin | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Wire Wrap | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 33 | 1 | ||
 EDAC Inc. | Copper Alloy | Through Hole | 3.96 mm | 0.156 in | 1 | Non Specified - Dual Edge | Female | Tin | Diallyl Phthalate (DAP) | Semi Bellows | 33 | Dual | 2 | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 66 | 125 °C | -40 C | Solder | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | ||||
 EDAC Inc. | Copper Alloy | Through Hole | 3.96 mm | 0.156 in | 1 | Non Specified - Single Edge | Female | Gold | Diallyl Phthalate (DAP) | Semi Bellows | 33 | Single | 0.25 Ám | 10 Áin | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Wire Wrap | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 33 | 1 |
