ICM-3 Series
Manufacturer: Adam Tech
Beta
⌘K
MACHINE PIN SOCKET, IC, DIP, 28P
| Part | Current Rating (Amps) | Termination Post Length | Termination Post Length | Contact Resistance | Material Flammability Rating | Termination | Mounting Type | Pitch - Post | Pitch - Post | Contact Material - Post | Features | Contact Finish Thickness - Mating | Number of Positions or Pins (Grid) | Contact Material - Mating | Type | Type | Type | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

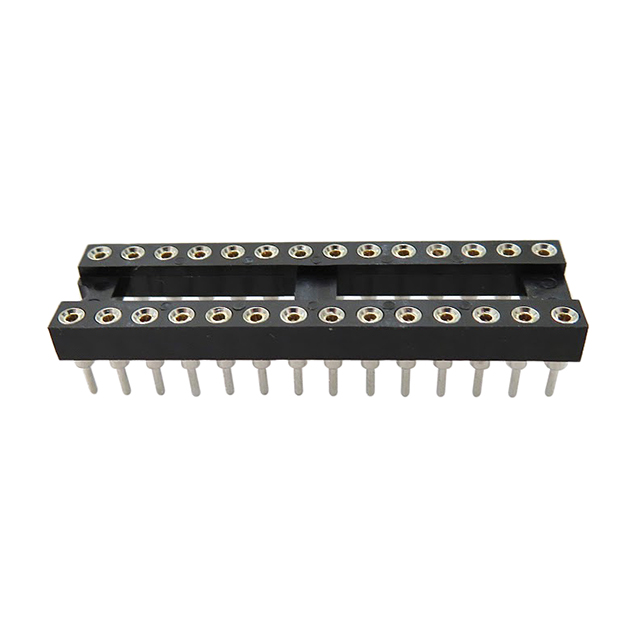

 Adam Tech | 3 A | 0.11 in | 2.78 mm | 4 mOhm | UL94 V-0 | Solder | Through Hole | 0.1 in | 2.54 mm | Beryllium Copper | Open Frame | Flash | 28 | Beryllium Copper | 7.62 mm | 0.3 in | DIP | Gold | 0.1 " | 2.54 mm | Tin | -40 C | 105 ░C | ||

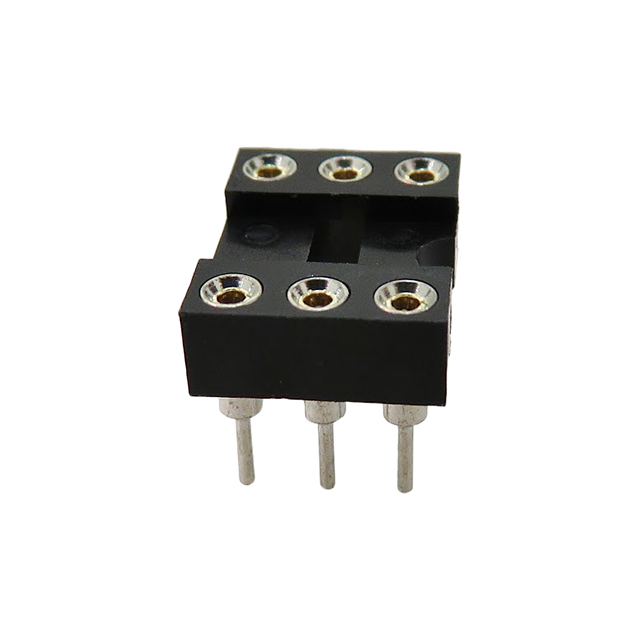

 Adam Tech | 3 A | 0.11 in | 2.78 mm | 4 mOhm | UL94 V-0 | Solder | Through Hole | 0.1 in | 2.54 mm | Beryllium Copper | Open Frame | Flash | 6 | Beryllium Copper | 7.62 mm | 0.3 in | DIP | Gold | 0.1 " | 2.54 mm | Tin | -40 C | 105 ░C | 3 positions or pins | 2 |

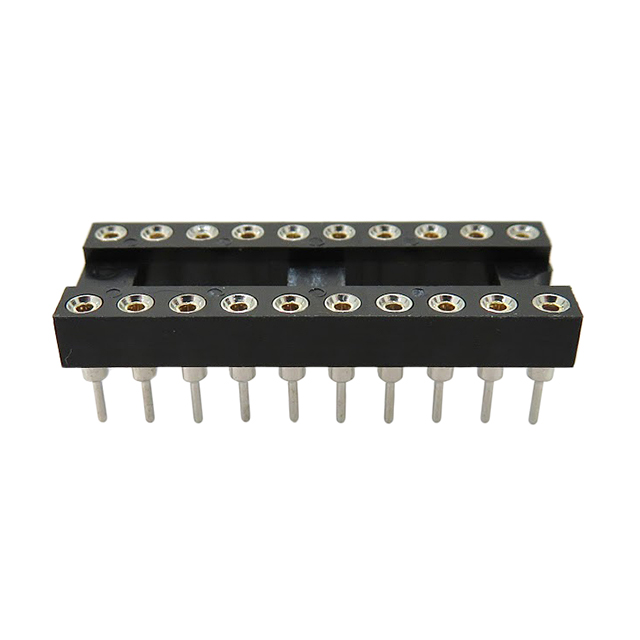

 Adam Tech | 3 A | 0.11 in | 2.78 mm | 4 mOhm | UL94 V-0 | Solder | Through Hole | 0.1 in | 2.54 mm | Beryllium Copper | Open Frame | Flash | 20 | Beryllium Copper | 7.62 mm | 0.3 in | DIP | Gold | 0.1 " | 2.54 mm | Tin | -40 C | 105 ░C | ||

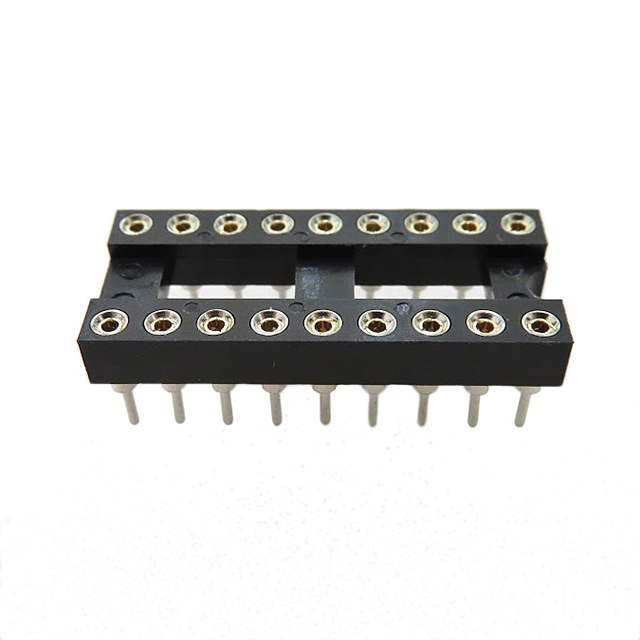

 Adam Tech | 3 A | 0.11 in | 2.78 mm | 4 mOhm | UL94 V-0 | Solder | Through Hole | 0.1 in | 2.54 mm | Beryllium Copper | Open Frame | Flash | 18 | Beryllium Copper | 7.62 mm | 0.3 in | DIP | Gold | 0.1 " | 2.54 mm | Tin | -40 C | 105 ░C |
