747847 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

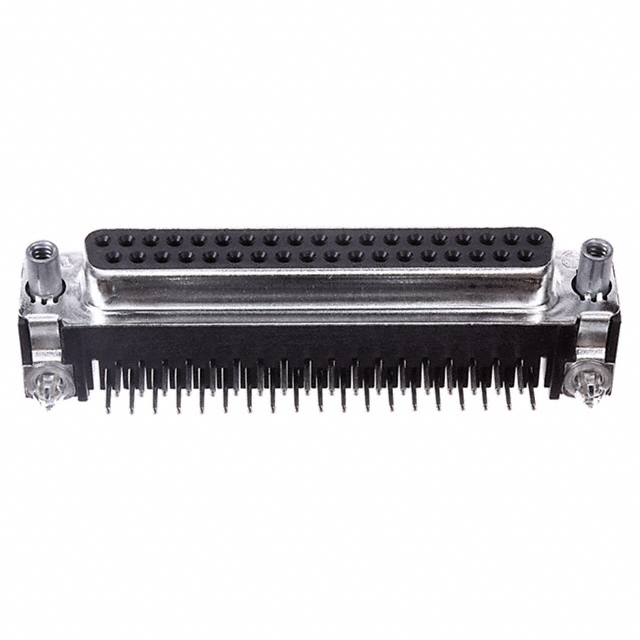

CONN D-SUB RCPT 37POS R/A SLDR
| Part | Dielectric Material | Voltage Rating | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Rows [custom] | Contact Finish | Shell Size, Connector Layout | Shell Size, Connector Layout | Material Flammability Rating | Number of Positions | Termination | Features | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Connector Type | Mounting Type | Backset Spacing | Backset Spacing | Flange Feature | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Thermoplastic | 125 VDC | Black | -55 C | 105 ░C | Phosphor Bronze | 2 | Gold | 4 | DC C | UL94 V-0 | 37 | Solder | Board Lock Ground Strap | Signal | 30 Áin | 0.76 Ám | 6 A | Receptacle Female Sockets | Right Angle Through Hole | 8.08 mm | 0.318 " | 4-40 Mating Side Female Screwlock | D-Sub |
