AWHW2-50 Series
Manufacturer: Assmann WSW Components
Beta
⌘K

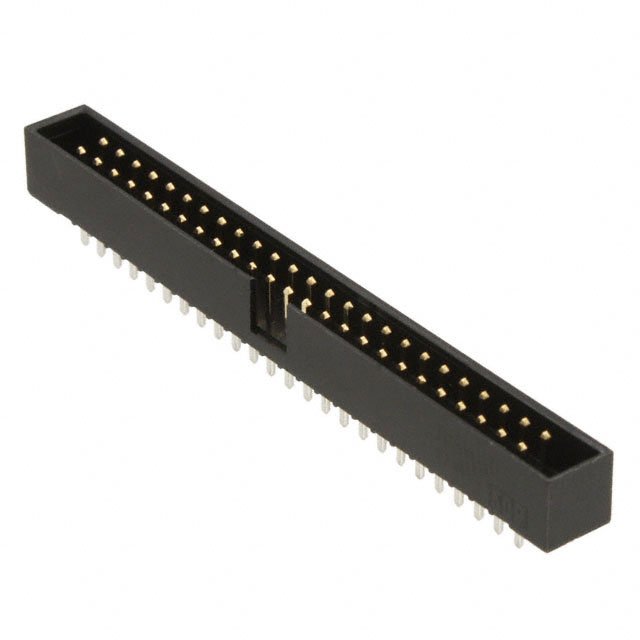

CONN HEADER VERT 50POS 2MM
| Part | Mounting Type | Contact Type | Number of Positions Loaded | Number of Rows [custom] | Features | Row Spacing - Mating | Row Spacing - Mating | Termination | Insulation Material | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Insulation Color | Current Rating (Amps) | Number of Positions | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Material | Contact Finish - Mating | Shrouding | Contact Length - Post [custom] | Contact Length - Post | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Fastening Type | Contact Shape | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Through Hole | Male Pin | All | 2 | Keying Slot | 2 mm | 0.079 in | Solder | Glass Filled Nylon 9T Polyamide (PA9T) | UL94 V-0 | 0.079 " | 2 mm | Black | 1.5 A | 50 | Header | -40 C | 105 ░C | Flash | Brass | Gold | Shrouded - 4 Wall | 0.11 in | 2.79 mm | 5.74 mm | 0.226 in | 4 mm | 0.157 in | Push-Pull | Square | Board to Cable/Wire |
