M20-107 Series

Catalog

WIRE-TO-BOARD CONNECTOR, M20-1 SERIES, CRIMP, RECEPTACLE, 14, 2.54 MM ROHS COMPLIANT: YES

Part	Note	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing	Row Spacing	Number of Rows [custom]	Mounting Type	Connector Type	Pitch	Pitch	Contact Type	Number of Positions	Insulation Material	Contact Termination	Color

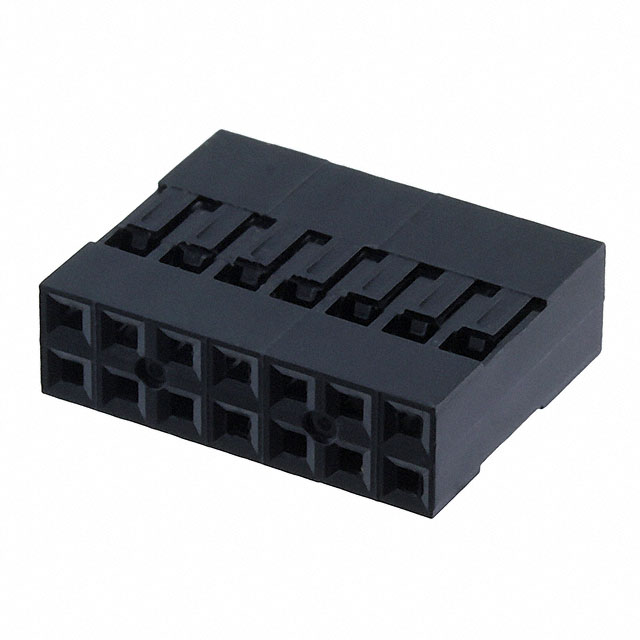

Harwin Inc. M20-1070700	Contacts Not Included	85 °C	-25 °C	2.54 mm	0.1 "	2	Free Hanging (In-Line)	Receptacle	0.1 "	2.54 mm	Female Socket	14	Polyphenylene Ether (PPE) Polystyrene (PS)	Crimp	Black

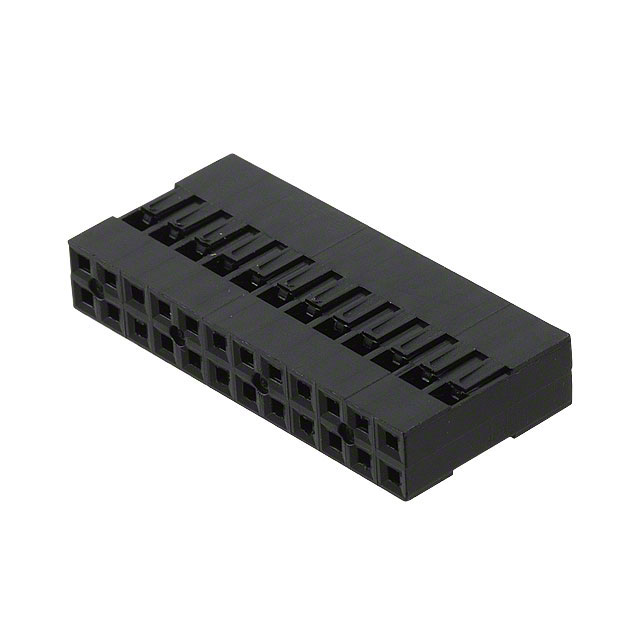

Harwin Inc. M20-1071200	Contacts Not Included	85 °C	-25 °C	2.54 mm	0.1 "	2	Free Hanging (In-Line)	Receptacle	0.1 "	2.54 mm	Female Socket	24	Polyphenylene Ether (PPE) Polystyrene (PS)	Crimp	Black
Harwin Inc. M20-1070200	Contacts Not Included	85 °C	-25 °C	2.54 mm	0.1 "	2	Free Hanging (In-Line)	Receptacle	0.1 "	2.54 mm	Female Socket	4	Polyphenylene Ether (PPE) Polystyrene (PS)	Crimp	Black

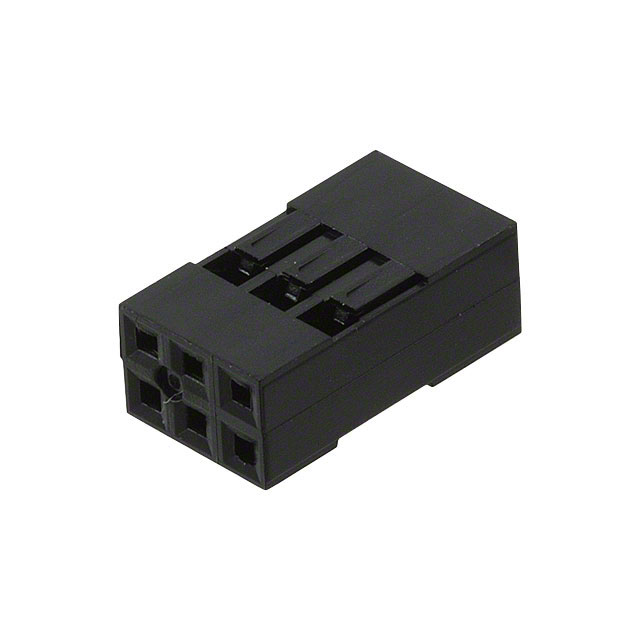

Harwin Inc. M20-1070300	Contacts Not Included	85 °C	-25 °C	2.54 mm	0.1 "	2	Free Hanging (In-Line)	Receptacle	0.1 "	2.54 mm	Female Socket	6	Polyphenylene Ether (PPE) Polystyrene (PS)	Crimp	Black

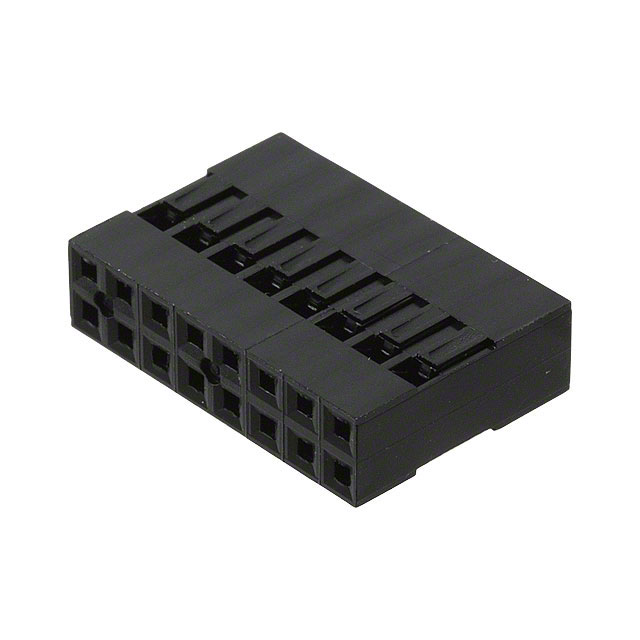

Harwin Inc. M20-1070800	Contacts Not Included	85 °C	-25 °C	2.54 mm	0.1 "	2	Free Hanging (In-Line)	Receptacle	0.1 "	2.54 mm	Female Socket	16	Polyphenylene Ether (PPE) Polystyrene (PS)	Crimp	Black

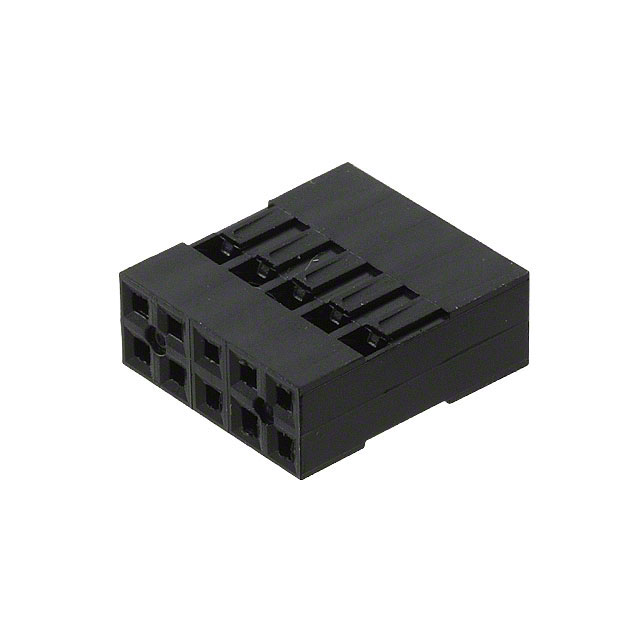

Harwin Inc. M20-1070500	Contacts Not Included	85 °C	-25 °C	2.54 mm	0.1 "	2	Free Hanging (In-Line)	Receptacle	0.1 "	2.54 mm	Female Socket	10	Polyphenylene Ether (PPE) Polystyrene (PS)	Crimp	Black

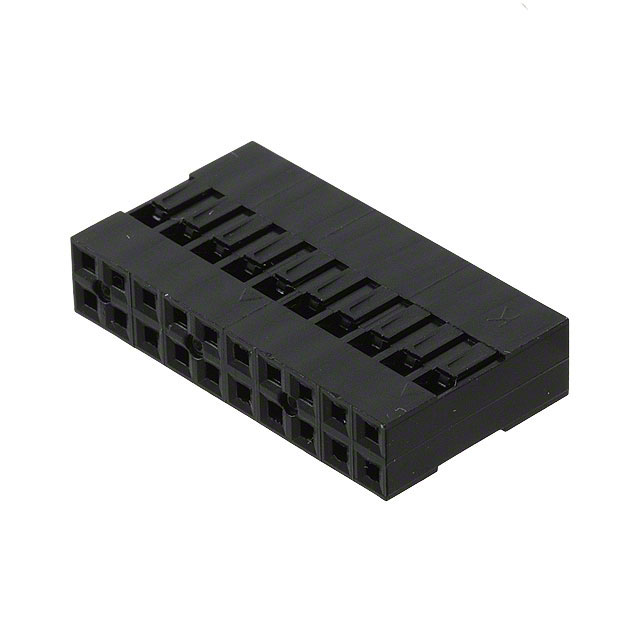

Harwin Inc. M20-1071000	Contacts Not Included	85 °C	-25 °C	2.54 mm	0.1 "	2	Free Hanging (In-Line)	Receptacle	0.1 "	2.54 mm	Female Socket	20	Polyphenylene Ether (PPE) Polystyrene (PS)	Crimp	Black
Harwin Inc. M20-1071100	Contacts Not Included	85 °C	-25 °C	2.54 mm	0.1 "	2	Free Hanging (In-Line)	Receptacle	0.1 "	2.54 mm	Female Socket	22	Polyphenylene Ether (PPE) Polystyrene (PS)	Crimp	Black
