R60IN Series

Manufacturer: KEMET

Catalog

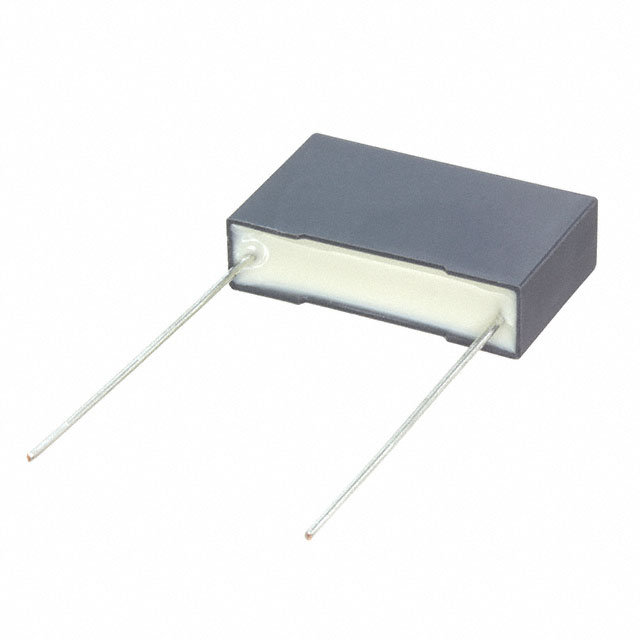

CAP FILM 2.2UF 10% 250VDC RADIAL

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Capacitance	Applications	Ratings	Voltage Rating - AC	Package / Case	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Dielectric Material	Height - Seated (Max) [Max]
KEMET R60IN42204030K	Through Hole	10 mm	0.394 in	26.5 mm	1.043 in	2.2 µF	Automotive	AEC-Q200	160 V	Radial	PC Pins	18.6 mm	0.732 in	0.886 in	22.5 mm	10 %	-55 C	105 ░C	250 V	Metallized Polyester Polyethylene Terephthalate (PET)
KEMET R60IN43304030J	Through Hole	11 mm	0.433 in	26.5 mm	1.043 in	3.3 µF	Automotive	AEC-Q200	160 V	Radial	PC Pins			0.886 in	22.5 mm	5 %	-55 C	105 ░C	250 V	Metallized Polyester Polyethylene Terephthalate (PET)
KEMET R60IN43305030J	Through Hole	11 mm	0.433 in	26.5 mm	1.043 in	3.3 µF	Automotive	AEC-Q200	160 V	Radial	PC Pins			0.886 in	22.5 mm	5 %	-55 C	105 ░C	250 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)
KEMET R60IN42205030K	Through Hole	10 mm	0.394 in	26.5 mm	1.043 in	2.2 µF	Automotive	AEC-Q200	160 V	Radial	PC Pins	18.6 mm	0.732 in	0.886 in	22.5 mm	10 %	-55 C	105 ░C	250 V	Metallized Polyester Polyethylene Terephthalate (PET)
KEMET R60IN41004030J	Through Hole	6 mm	0.236 "	26.5 mm	1.043 in	1 µF	Automotive	AEC-Q200	160 V	Radial	PC Pins		15.1 mm	0.886 in	22.5 mm	5 %	-55 C	105 ░C	250 V	Metallized Polyester Polyethylene Terephthalate (PET)	0.594 in
KEMET R60IN41004030K	Through Hole	6 mm	0.236 "	26.5 mm	1.043 in	1 µF	Automotive	AEC-Q200	160 V	Radial	PC Pins		15.1 mm	0.886 in	22.5 mm	10 %	-55 C	105 ░C	250 V	Metallized Polyester Polyethylene Terephthalate (PET)	0.594 in
KEMET R60IN4220AA30J	Through Hole	10 mm	0.394 in	26.5 mm	1.043 in	2.2 µF	Automotive	AEC-Q200	160 V	Radial	PC Pins	18.6 mm	0.732 in	0.886 in	22.5 mm	5 %	-55 C	105 ░C	250 V	Metallized Polyester Polyethylene Terephthalate (PET)
