LWC19 Series

Catalog

CBL CLIP WIRE SADDLE GRAY ARROW

Part	Length	Length	Material	Opening Size	Opening Size [z]	Type Attributes	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Height [z]	Height [z]	Mounting Type	Color	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Max]	Width [y]	Width [y]	Type	Material Flammability Rating	Adhesive	Width [x]	Width [x]
Panduit Corp LWC19-H25-C14	0.85 "	21.59 mm	Polyamide (PA66) Nylon 6/6	4.83 mm	0.19 in	Locking Round	0.025 in	2.67 mm	0.64 mm	0.105 in	10.41 mm	0.41 in	Arrowhead Winged	Gray	0.187 in	0.25 in	4.75 mm	6.35 mm	12.95 mm	0.51 in	Clip Wire Saddle on Base	UL94 V-2

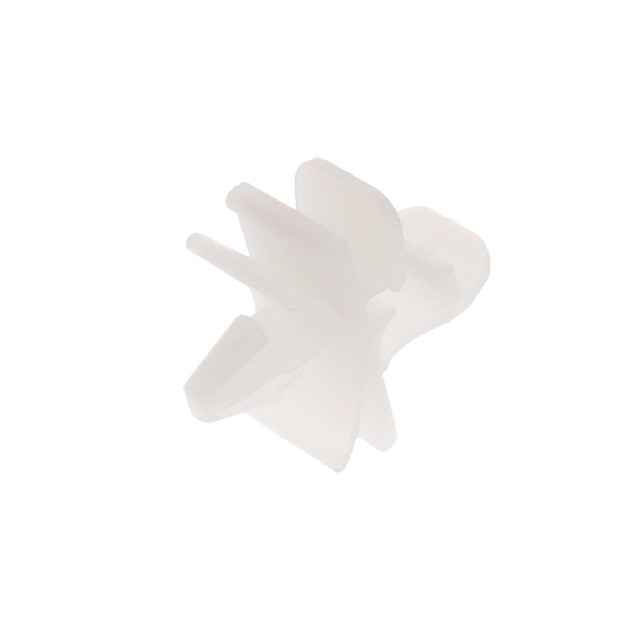

Panduit Corp LWC19-H25-M	0.85 "	21.59 mm	Polyamide (PA66) Nylon 6/6	4.83 mm	0.19 in	Locking Round	0.025 in	2.67 mm	0.64 mm	0.105 in	10.41 mm	0.41 in	Arrowhead Winged	Natural	0.187 in	0.25 in	4.75 mm	6.35 mm	12.95 mm	0.51 in	Clip Wire Saddle on Base	UL94 V-2

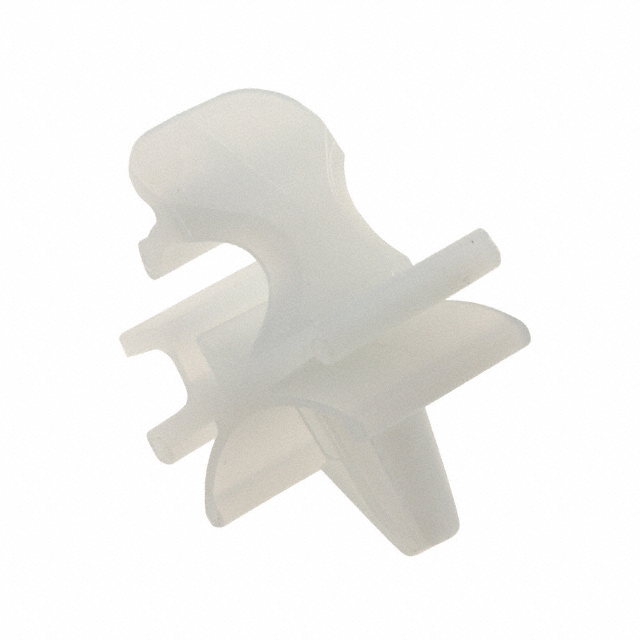

Panduit Corp LWC19-H25-C	0.85 "	21.59 mm	Polyamide (PA66) Nylon 6/6	4.83 mm	0.19 in	Locking Round	0.025 in	2.67 mm	0.64 mm	0.105 in	10.41 mm	0.41 in	Arrowhead Winged	Natural	0.187 in	0.25 in	4.75 mm	6.35 mm	12.95 mm	0.51 in	Clip Wire Saddle on Base	UL94 V-2
Panduit Corp LWC19-A-C20	0.85 "	21.59 mm	Polyamide (PA66) Nylon 6/6	4.83 mm	0.19 in	Locking Round					9.91 mm	0.39 "	Adhesive	Black							Clip Wire Saddle on Base		Rubber Based	15.49 mm	0.61 in
