5200FE Series
Manufacturer: Belden Inc.
Beta
⌘K

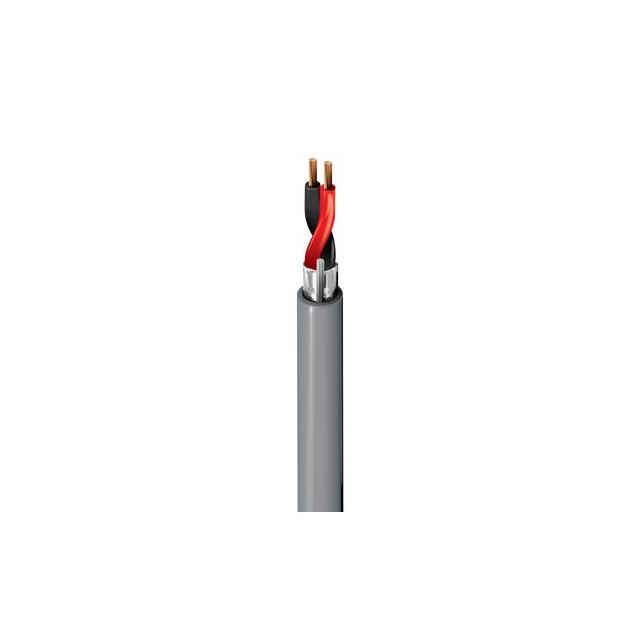

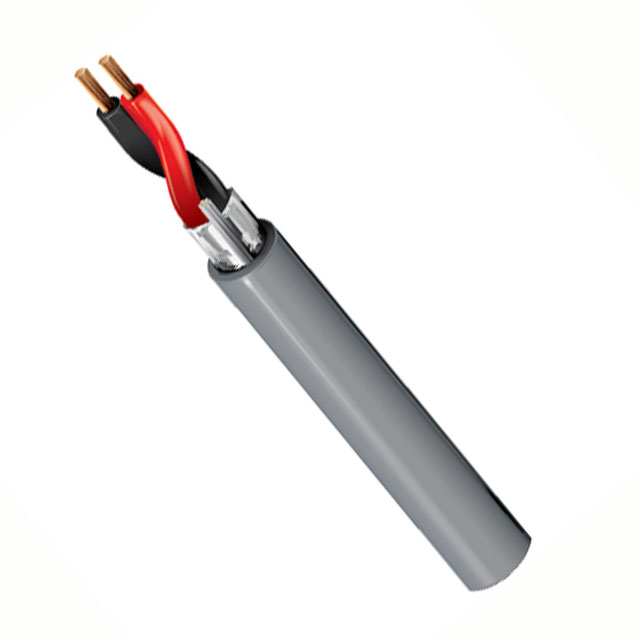

CABLE 2CON 16AWG GRAY SHLD
| Part | Shield Coverage | Shield Material | Usage | Shield Type | Length | Length | Features | Conductor Material | Length [x] | Length [x] | Wire Gauge | Cable Type | Conductor Insulation | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Voltage | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Commercial Audio | Foil | 304.8 m | 1000 ft | Drain Wire Rip Cord | Copper Bare | 100 ft | 30.5 m | 16 AWG | Multi-Conductor | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) Riser | 4.67 mm | 0.184 in | 2 | 300 VDC | Gray | 0.017 " | 0.432 mm | 19 | 29 | |
 Belden Inc. | 100 % | Aluminum | Security Sound | Foil | 304.8 m | 1000 ft | Drain Wire Rip Cord | Copper Tinned | 16 AWG | Multi-Conductor | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) Riser | 4.78 mm | 0.188 " | 2 | 300 VDC | Red | 0.017 " | 0.432 mm | 19 | 29 | UL Style CMR | ||
Belden Inc. | 100 % | Aluminum | Security Sound | Foil | 152.4 m | 500 ft | Drain Wire Rip Cord | Copper Tinned | 16 AWG | Multi-Conductor | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) Riser | 4.78 mm | 0.188 " | 2 | 300 VDC | Gray | 0.017 " | 0.432 mm | 19 | 29 | UL Style CMR | ||
Belden Inc. | 100 % | Aluminum | Security Sound | Foil | 304.8 m | 1000 ft | Drain Wire Rip Cord | Copper Tinned | 16 AWG | Multi-Conductor | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) Riser | 4.78 mm | 0.188 " | 2 | 300 VDC | Orange | 0.017 " | 0.432 mm | 19 | 29 | UL Style CMR | ||
Belden Inc. | 100 % | Aluminum | Security Sound | Foil | 304.8 m | 1000 ft | Drain Wire Rip Cord | Copper Tinned | 16 AWG | Multi-Conductor | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) Riser | 4.78 mm | 0.188 " | 2 | 300 VDC | White | 0.017 " | 0.432 mm | 19 | 29 | UL Style CMR | ||
Belden Inc. | 100 % | Aluminum | Security Sound | Foil | 304.8 m | 1000 ft | Drain Wire Rip Cord | Copper Tinned | 16 AWG | Multi-Conductor | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) Riser | 4.78 mm | 0.188 " | 2 | 300 VDC | Black | 0.017 " | 0.432 mm | 19 | 29 | UL Style CMR | ||
Belden Inc. | 100 % | Aluminum | Security Sound | Foil | 304.8 m | 1000 ft | Drain Wire Rip Cord | Copper Tinned | 16 AWG | Multi-Conductor | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) Riser | 4.78 mm | 0.188 " | 2 | 300 VDC | Yellow | 0.017 " | 0.432 mm | 19 | 29 | UL Style CMR |
