3139-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

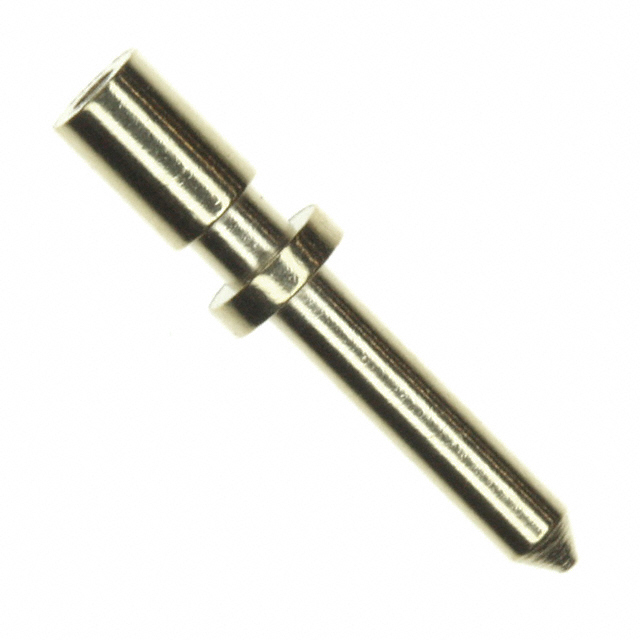

CONN PC PIN CIRC .049DIA GOLD
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Length - Above Flange [custom] | Length - Above Flange [custom] | Contact Material | Terminal Style | Termination | Terminal Type | Mounting Type | Insulation | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Length - Overall [x] | Length - Overall [x] | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 1.24 mm | 0.049 in | 3.96 mm | 0.156 " | Gold | 0.25 Ám | 10 Áin | 6.32 mm | 0.249 in | Brass Alloy | Wire | Crimp | PC Pin | Free Hanging (In-Line) | Non-Insulated | 1.8 mm | 0.071 in | 0.43 in | 10.92 mm | 0.093 in | 2.36 mm |
 Mill-Max Manufacturing Corp. | 1.24 mm | 0.049 in | 3.96 mm | 0.156 " | Gold | 0.51 µm | 20 µin | 6.32 mm | 0.249 in | Brass Alloy | Wire | Crimp | PC Pin | Free Hanging (In-Line) | Non-Insulated | 1.8 mm | 0.071 in | 0.43 in | 10.92 mm | 0.093 in | 2.36 mm |
Mill-Max Manufacturing Corp. | 1.24 mm | 0.049 in | 3.96 mm | 0.156 " | Tin-Lead | 5.08 Ám | 200 Áin | 6.32 mm | 0.249 in | Brass Alloy | Wire | Crimp | PC Pin | Free Hanging (In-Line) | Non-Insulated | 1.8 mm | 0.071 in | 0.43 in | 10.92 mm | 0.093 in | 2.36 mm |
