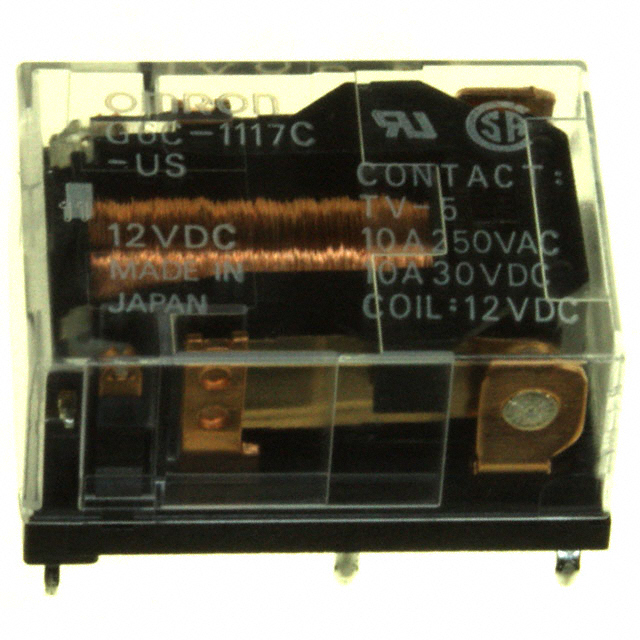

G6C-111 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY GEN PURPOSE SPST 10A 3V

Part	Coil Type	Must Operate Voltage	Contact Material	Release Time	Load - Max Switching	Switching Voltage	Coil Resistance	Coil Current	Must Release Voltage	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Contact Form	Termination Style	Seal Rating	Mounting Type	Operate Time	Contact Rating (Current)	Coil Voltage	Features
Omron Electronics Inc-EMC Div G6C-1117P-US-DC3	Non Latching	2.1 VDC	Cadmium Free Silver Alloy	10 ms	1250 W 3800 VA	125 VDC 380 VAC	45 Ohms	67 mA	0.3 VDC	General Purpose	70 °C	-25 °C	CSA TUV UR VDE	SPST-NO (1 Form A)	PC Pin	Sealed - Flux Protection	Through Hole	10 ms	10 A
Omron Electronics Inc-EMC Div G6C-1117P-US-DC6	Non Latching	4.2 VDC	Cadmium Free Silver Alloy	10 ms	1250 W 3800 VA	125 VDC 380 VAC	180 Ohms	33.3 mA	0.6 VDC	General Purpose	70 °C	-25 °C	CSA TUV UR VDE	SPST-NO (1 Form A)	PC Pin	Sealed - Flux Protection	Through Hole	10 ms	10 A
Omron Electronics Inc-EMC Div G6C-1117P-US-P6C DC5	Non Latching	3.5 VDC	Cadmium Free Silver Alloy	10 ms	1250 W 3800 VA	125 VDC 380 VAC	125 Ohms	40 mA	0.5 VDC	General Purpose	70 °C	-25 °C	CSA TUV UR VDE	SPST-NO (1 Form A)	PC Pin	Sealed - Flux Protection	Through Hole	10 ms	10 A	5 VDC	Socket Included
Omron Electronics Inc-EMC Div G6C-1114P-US-DC6	Non Latching	4.2 VDC	Cadmium Free Silver Alloy	10 ms	1250 W 3800 VA	125 VDC 380 VAC	180 Ohms	33.3 mA	0.6 VDC	General Purpose	70 °C	-25 °C	CSA TUV UR VDE	SPST-NO (1 Form A)	PC Pin	Sealed - Fully	Through Hole	10 ms	10 A
Omron Electronics Inc-EMC Div G6C-1114P-VD-DC12	Non Latching	8.4 VDC	Cadmium Free Silver Alloy	10 ms	1250 W 3800 VA	125 VDC 380 VAC	720 Ohms	16.7 mA	1.2 VDC	General Purpose	70 °C	-25 °C	CSA TUV UR VDE	SPST-NO (1 Form A)	PC Pin	Sealed - Fully	Through Hole	10 ms	10 A	12 VDC
Omron Electronics Inc-EMC Div G6C-1117P-US-SV DC24	Non Latching	16.8 VDC	Cadmium Free Silver Alloy	10 ms	1250 W 3800 VA	125 VDC 380 VAC	2.88 kOhms	8.3 mA	2.4 VDC	General Purpose	70 °C	-25 °C	CSA TUV UR VDE	SPST-NO (1 Form A)	PC Pin	Sealed - Flux Protection	Through Hole	10 ms	10 A	24 VDC
Omron Electronics Inc-EMC Div G6C-1114P-US-DC12	Non Latching	8.4 VDC	Cadmium Free Silver Alloy	10 ms	1250 W 3800 VA	125 VDC 380 VAC	720 Ohms	16.7 mA	1.2 VDC	General Purpose	70 °C	-25 °C	CSA TUV UR VDE	SPST-NO (1 Form A)	PC Pin	Sealed - Fully	Through Hole	10 ms	10 A	12 VDC
