L177HRA26 Series

Catalog

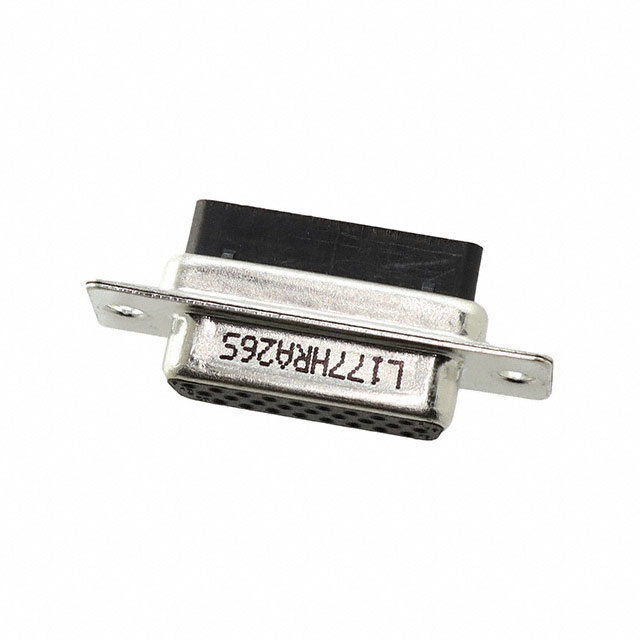

CONN D-SUB HD HOUSING RCPT 26POS

Part	Operating Temperature [Min]	Operating Temperature [Max]	Note	Dielectric Material	Color	Number of Rows [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Contact Type	Number of Positions	Shell Finish Thickness	Shell Finish Thickness	Connector Style	Flange Feature	Connector Type	Mounting Type
Amphenol ICC (Commercial Products) L177HRA26SVF	-55 C	125 °C	Contacts Not Included	Polybutylene Terephthalate (PBT) Glass Filled	Black	3	2	DA A	Signal	26	2.54 µm	100 µin	D-Sub High Density	4-40 Mating Side Female Screwlock	Receptacle for Female Contacts	Free Hanging (In-Line)
Amphenol ICC (Commercial Products) L177HRA26S	-55 C	125 °C	Contacts Not Included	Polybutylene Terephthalate (PBT) Glass Filled	Black	3	2	DA A	Signal	26	2.54 µm	100 µin	D-Sub High Density	Housing/Shell (Unthreaded)	Receptacle for Female Contacts	Free Hanging (In-Line)
Amphenol ICC (Commercial Products) L177HRA26SVFM	-55 C	125 °C	Contacts Not Included	Polybutylene Terephthalate (PBT) Glass Filled	Black	3	2	DA A	Signal	26	2.54 µm	100 µin	D-Sub High Density	Mating Side Female Screwlock (M3)	Receptacle for Female Contacts	Free Hanging (In-Line)
