BHR-26 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 26POS 2.54MM

Part	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Features	Termination	Insulation Color	Contact Type	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Material	Shrouding	Fastening Type	Number of Rows [custom]	Number of Positions Loaded	Insulation Height	Insulation Height	Voltage Rating	Mounting Type	Current Rating (Amps)	Contact Finish - Mating	Material Flammability Rating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish Thickness - Mating	Connector Type	Contact Material	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]

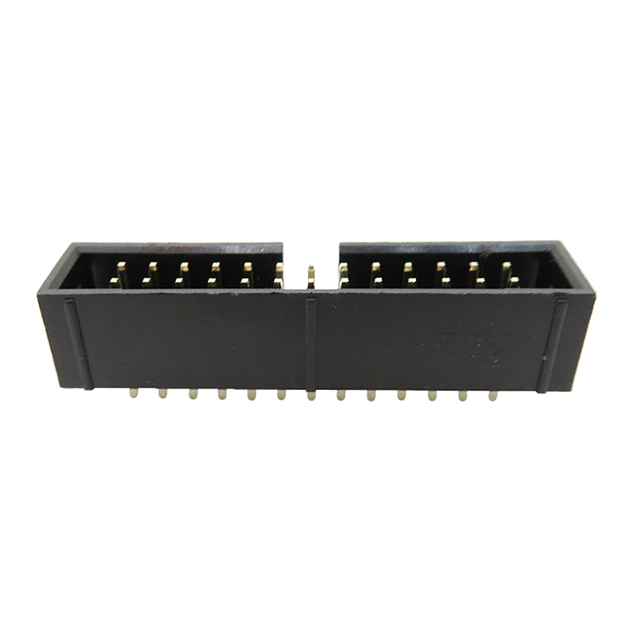

Adam Tech BHR-26-VUA	8.8 mm	0.346 in	Flash	Keying Slot Polarizing Key	Solder	Black	Male Pin	0.13 "	3.3 mm	0.1 in	2.54 mm	Gold	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	Push-Pull	2	All	0.358 "	9.1 mm	250 VAC	Through Hole	3 A	Gold	UL94 V-0	Board to Board Cable	-55 C	105 ░C	Square	Flash	Header	Brass	26

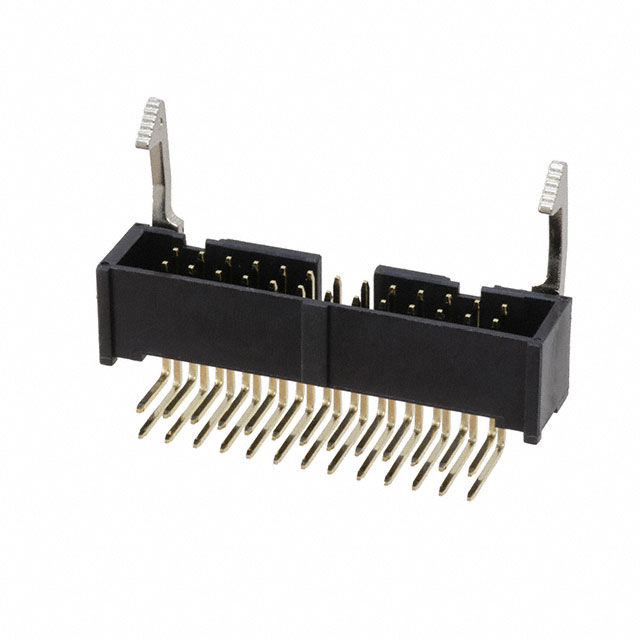

Adam Tech BHR-26-HUA-ML			Flash	Keying Slot	Solder	Black	Male Pin			0.1 in	2.54 mm	Gold	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	Shrouded - 4 Wall	Latch Lock/Eject Hooks Long	2	All	0.354 in	9 mm	350 VAC	Right Angle Through Hole	3 A	Gold	UL94 V-0	Board to Board Cable	-40 C	105 ░C	Square	Flash	Header	Brass	26	0.126 "	3.2 mm

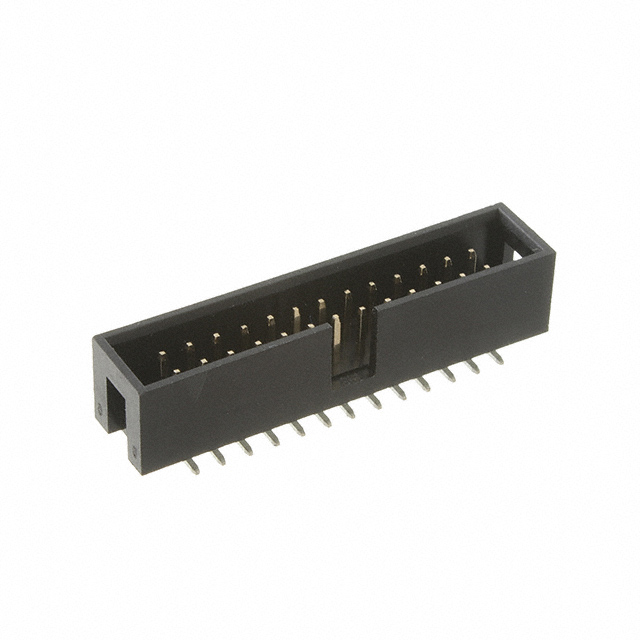

Adam Tech BHR-26-VSG-SMT				Keying Slot	Solder	Black	Male Pin			0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	Thermoplastic	Shrouded - 4 Wall	Push-Pull	2	All	0.413 in	10.49 mm	250 VAC	Surface Mount	3 A	Gold	UL94 V-0	Board to Board Cable	-40 C	105 ░C	Square	Flash	Header	Brass	26
