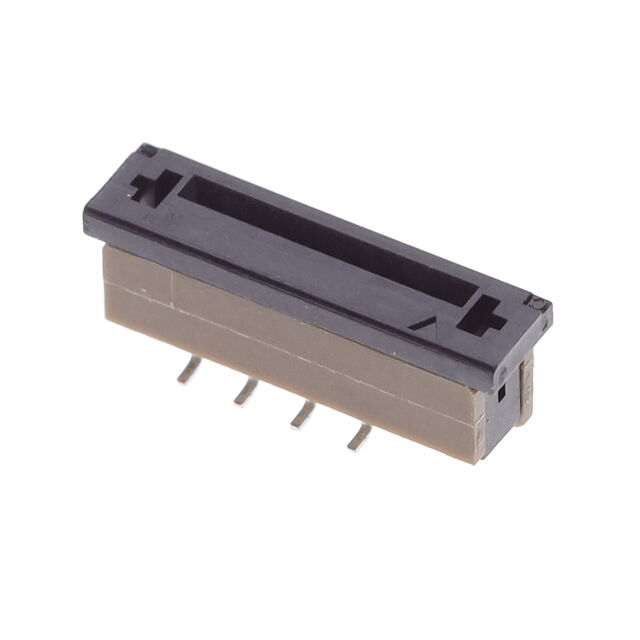

SFW8S Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN FFC FPC VERT 8POS 1MM SMD
| Part | Housing Color | Mating Cycles | Voltage Rating | Locking Feature | Connector/Contact Type | Housing Material | Contact Material | Material Flammability Rating | FFC, FCB Thickness | Pitch | Pitch | Cable End Type | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Flat Flex Type | Height Above Board [z] | Height Above Board [z] | Termination | Number of Positions | Actuator Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Brown | 20 | 100 V | Slide Lock | Contacts Vertical - 1 Sided | Glass Filled Thermoplastic | Phosphor Bronze | UL94 V-0 | 0.3 mm | 1 mm | 0.039 in | Straight or Tapered | Tin | -55 C | 105 ░C | FFC FPC | 0.209 in | 5.3 mm | Kinked Pin | 8 | Thermoplastic Glass Filled | Surface Mount |
