LPT60 Series

Catalog

EC FAN AXIAL 60 X 60 X 25MM 100-

Part	Current Rating (Amps)	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Termination	Power (Watts) [Max]	Power (Watts) [Min]	Voltage - Rated [Max]	Voltage - Rated [Min]	Noise	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	RPM [Max]	RPM [Min]	Fan Type	Ingress Protection	Weight [custom]	Weight [custom]	Air Flow [Min]	Air Flow [Min]	Air Flow [Max]	Air Flow [Max]	Static Pressure [Min]	Static Pressure [Max]	Static Pressure [Min]	Static Pressure [Max]	Width [y]	Approval Agency	Features

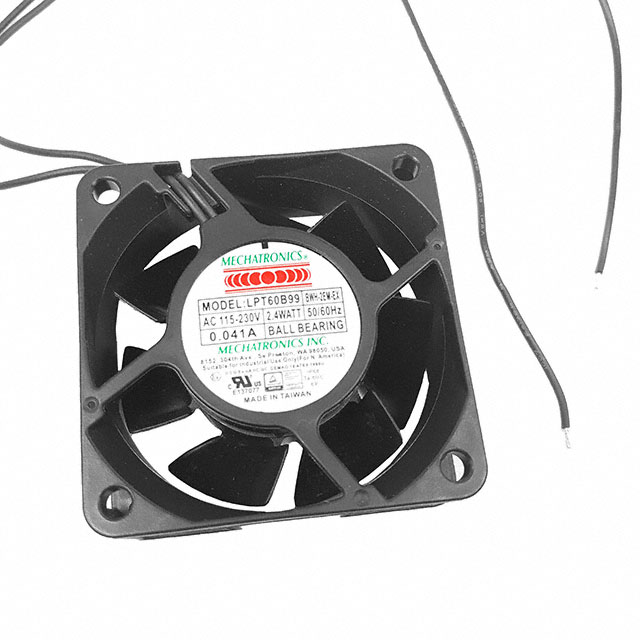

Mechatronics Fan Group LPT60B99-BWHR-2EM-EX	0.026 A 41 mA	Metal	90 VAC	264 VAC	Plastic	2 Wire Leads	2.4 W	2 W	230 VAC	115 VAC	31 dB(A)	Ball	60 mm	60 mm	3950 RPM	3850 RPM	Tubeaxial	IP68 - Dust Tight Waterproof	0.133 lb	60.33 g	0.535 m³/min	19.1 CFM	19.4 CFM	0.543 m³/min	42.3 Pa	0.18 in H2O	0.17 in H2O	44.8 Pa	25 mm	ATEX	Dual Speed Dual Voltage Electronic Commutation (EC) Thermal Overload Protector (TOP)
