FSL518 Series

High Performance 800 V Off-line Switcher with HV Startup and SenseFET

Catalog

High Performance 800 V Off-line Switcher with HV Startup and SenseFET

Part	Fault Protection	Internal Switch(s)	Voltage - Breakdown	Supplier Device Package	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Start Up	Package / Case	Package / Case	Package / Case	Control Features	Output Isolation	Mounting Type	Power (Watts)	Frequency - Switching	Utilized IC / Part	Current - Output	Voltage - Output	Supplied Contents	Regulator Topology	Power - Output	Board Type	Main Purpose	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]
ON Semiconductor FSL518HPG	Current Limiting Over Load Over Power Over Temperature Over Voltage		800 V	7-PDIP	Flyback	-40 °C	125 ¯C	16 V	7.62 mm	0.3 in 7 Leads	8-DIP	EN Soft Start	Either	Through Hole	15 W	130 kHz

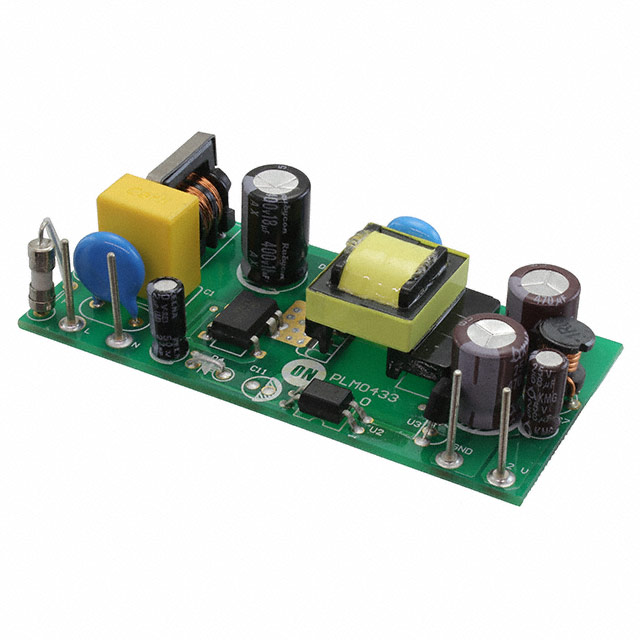

ON Semiconductor FSL518AFLYGEVB																	FSL518A	660 mA	12 V	Board(s)	Flyback	8 W	Fully Populated	AC/DC Primary Side	Isolated	1	90 VAC	265 VAC

Catalog

High Performance 800 V Off-line Switcher with HV Startup and SenseFET

Key Features

• Rugged 800V FET with 6.3Ω Typ. RDS(on) with Built-in HV current source for start up

• Fine-tunable Skip Mode Operation

• Integrated Line Compensation

• Line Brown-in, Brown-out Function

• Line Over-voltage Protection (LOVP)

• Fsw options: 100 & 130 kHz

• Peak Current: FSL518A = 610mA and FSL518H = 460 mA

• Seamless implementation of isolated and non-isolated topologies

Description

The FSL5x8A/H is an integrated peak-current-mode controlled pulse width modulation (PWM) power switch, specifically designed for off-line switch-mode power supplies. The PWM controller includes an advanced soft-start, frequency hopping, optimized gate driver, internal transconductance amplifier, temperature-compensated precise current source for loop compensation and enhanced self-protections circuitry as well. Compared with a discrete MOSFET and PWM controller solution, the FSL5x8A/H allows to reduce total cost, component count, size, and weight, while simultaneously increase efficiency, productivity, and system reliability. This device provides a basic platform for cost-effective design of both isolated and non-isolated Flyback converters.
