PAA.M1 Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 10P GOLD SLDR CUP

Part	Shielding	Shell Material	Color	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Current Rating (Amps)	Mounting Type	Features	Number of Positions	Primary Material	Contact Finish - Mating	Shell Size - Insert	Applications	Backshell Material, Plating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Orientation	Fastening Type	Insert Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]
LEMO PAA.M1.0GL.AC52GZ	Unshielded	Polysulfone (PSU)	Gray	IP50	150 °C	-50 °C	Male Pins Plug	3 A	Free Hanging (In-Line)	Backshell	10	Plastic	Gold	M10	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)	0.157 in	0.205 in	4 mm	5.2 mm	A	Detent Lock Push-Pull	Polyetheretherketone (PEEK)
LEMO PAA.M1.0GL.AC39Z	Unshielded	Polysulfone (PSU)	Gray	IP50	150 °C	-50 °C	Male Pins Plug	3 A	Free Hanging (In-Line)	Backshell	10	Plastic	Gold	M10	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)					A	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PAA.M1.0GL.AC65V	Unshielded	Polysulfone (PSU)	Gray Green	IP50	150 °C	-50 °C	Male Pins Plug	3 A	Free Hanging (In-Line)	Backshell	10	Plastic	Gold	M10	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)					A	Detent Lock Push-Pull	Polyetheretherketone (PEEK)					0.209 in 0.256 in	5.3 mm 6.5 mm
LEMO PAA.M1.4GL.AC65GZ	Unshielded	Polysulfone (PSU)	Gray	IP50	150 °C	-50 °C	Male Pins Plug	2 A	Free Hanging (In-Line)	Backshell	14	Plastic	Gold	M14	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)					A	Detent Lock Push-Pull	Polyetheretherketone (PEEK)					0.209 in 0.256 in	5.3 mm 6.5 mm
LEMO PAA.M1.0GL.AC52A	Unshielded	Polysulfone (PSU)	Blue Gray	IP50	150 °C	-50 °C	Male Pins Plug	3 A	Free Hanging (In-Line)	Backshell	10	Plastic	Gold	M10	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)	0.157 in	0.205 in	4 mm	5.2 mm	A	Detent Lock Push-Pull	Polyetheretherketone (PEEK)

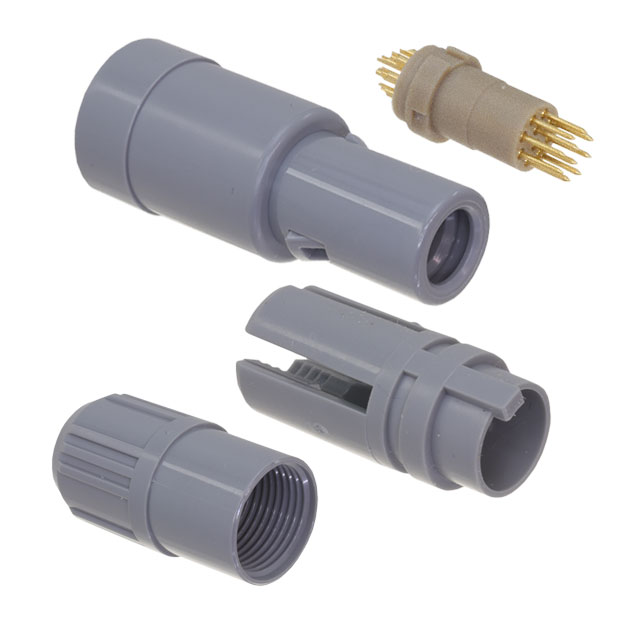

LEMO PAA.M1.0GL.AC39G	Unshielded	Polysulfone (PSU)	Gray	IP50	150 °C	-50 °C	Male Pins Plug	3 A	Free Hanging (In-Line)	Backshell	10	Plastic	Gold	M10	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)					A	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PAA.M1.0GL.AC52Z	Unshielded	Polysulfone (PSU)	Gray	IP50	150 °C	-50 °C	Male Pins Plug	3 A	Free Hanging (In-Line)	Backshell	10	Plastic	Gold	M10	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)	0.157 in	0.205 in	4 mm	5.2 mm	A	Detent Lock Push-Pull	Polyetheretherketone (PEEK)
LEMO PAA.M1.4GL.AC39A	Unshielded	Polysulfone (PSU)	Blue Gray	IP50	150 °C	-50 °C	Male Pins Plug	2 A	Free Hanging (In-Line)	Backshell	14	Plastic	Gold	M14	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)					A	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PAA.M1.4GL.AC65Z	Unshielded	Polysulfone (PSU)	Gray	IP50	150 °C	-50 °C	Male Pins Plug	2 A	Free Hanging (In-Line)	Backshell	14	Plastic	Gold	M14	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)					A	Detent Lock Push-Pull	Polyetheretherketone (PEEK)					0.209 in 0.256 in	5.3 mm 6.5 mm
LEMO PAA.M1.0GL.AC52G	Unshielded	Polysulfone (PSU)	Gray	IP50	150 °C	-50 °C	Male Pins Plug	3 A	Free Hanging (In-Line)	Backshell	10	Plastic	Gold	M10	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)	0.157 in	0.205 in	4 mm	5.2 mm	A	Detent Lock Push-Pull	Polyetheretherketone (PEEK)
