1241.6961 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

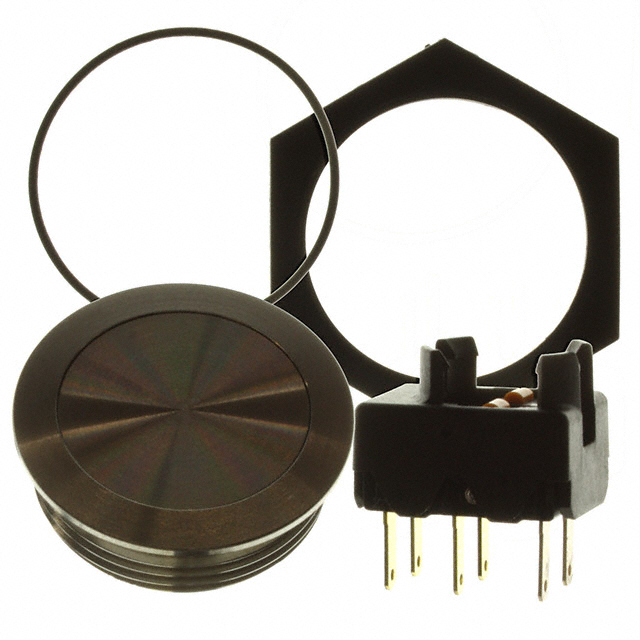

SWITCH PUSHBUTTON DPDT 5A 125V
| Part | Mechanical Life | Electrical Life | Actuator Type | Panel Cutout Dimensions [diameter] | Switch Function | Voltage Rating - AC | Ingress Protection | Color - Actuator/Cap | Current Rating (Amps) | Actuator Marking | Mounting Type | Termination Style | Type | Circuit | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | Button Flush Round | 30.1 mm | On-Mom | 125 V | IP40 | Silver | 5 A | No Marking | Panel Mount Front | Quick Connect - 0.110" (2.8mm) | Anti-Vandal | DPDT | 85 °C | -25 °C |
