845-098 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 98POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Card Type	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Number of Positions/Bay/Row	Mounting Type	Contact Type	Gender	Contact Material	Color	Pitch	Pitch	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Read Out	Number of Positions	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 845-098-542-803	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	2	49	Through Hole	Cantilever	Female	Copper Alloy	Green	0.1 "	2.54 mm	Gold	125 °C	-40 C	Wire Wrap	Dual	98	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm
EDAC Inc. 845-098-560-802	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	2	49	Board Edge Straddle Mount	Cantilever	Female	Copper Alloy	Green	0.1 "	2.54 mm	Gold	125 °C	-40 C	Solder	Dual	98		0.128 "	3.25 mm	Card Extender
EDAC Inc. 845-098-556-803	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	2	49	Board Edge Straddle Mount	Cantilever	Female	Copper Alloy	Green	0.1 "	2.54 mm	Gold	125 °C	-40 C	Solder	Dual	98	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Card Extender

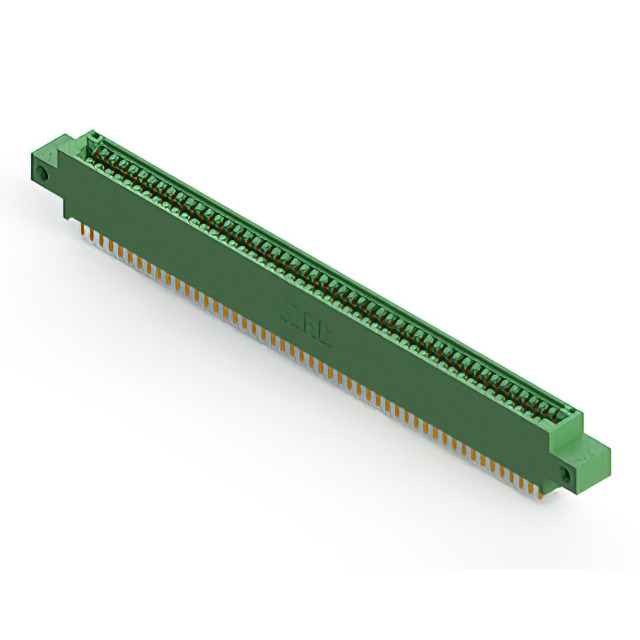

EDAC Inc. 845-098-521-812	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	2	49	Through Hole	Cantilever	Female	Copper Alloy	Green	0.1 "	2.54 mm	Gold	125 °C	-40 C	Solder	Dual	98	Side Mount Opening Unthreaded	0.128 "	3.25 mm

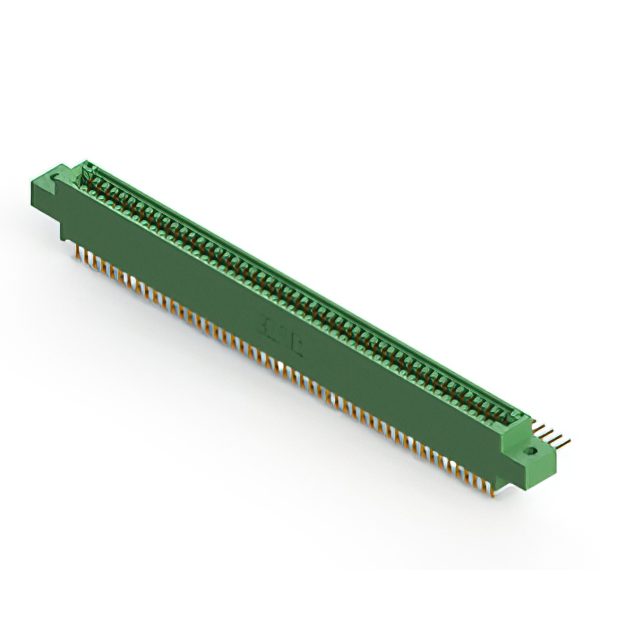

EDAC Inc. 845-098-559-802	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	2	49	Right Angle Through Hole	Cantilever	Female	Copper Alloy	Green	0.1 "	2.54 mm	Gold	125 °C	-40 C	Solder	Dual	98		0.128 "	3.25 mm
EDAC Inc. 845-098-558-503	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	2	49	Right Angle Through Hole	Cantilever	Female	Copper Alloy	Green	0.1 "	2.54 mm	Gold	125 °C	-40 C	Solder	Dual	98	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm
EDAC Inc. 845-098-540-503	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	2	49	Through Hole	Cantilever	Female	Copper Alloy	Green	0.1 "	2.54 mm	Gold	125 °C	-40 C	Wire Wrap	Dual	98	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm

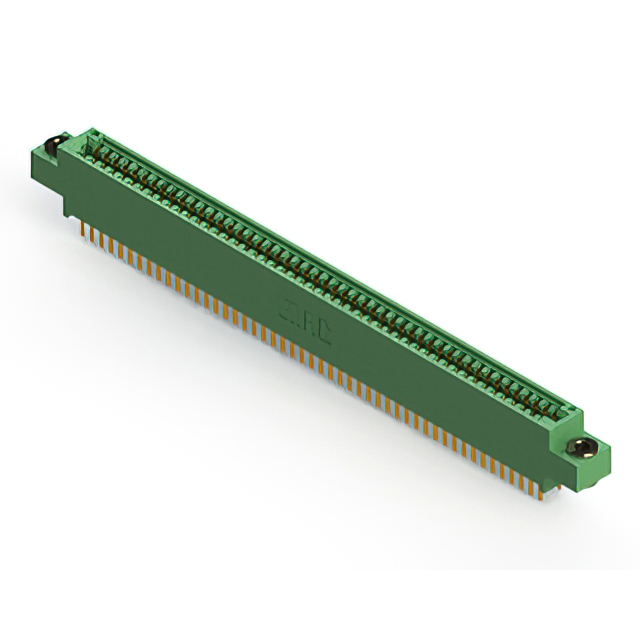

EDAC Inc. 845-098-520-803	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	2	49	Through Hole	Cantilever	Female	Copper Alloy	Green	0.1 "	2.54 mm	Gold	125 °C	-40 C	Solder	Dual	98	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm
EDAC Inc. 845-098-544-203	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	2	49	Through Hole	Cantilever	Female	Copper Alloy	Green	0.1 "	2.54 mm	Gold	125 °C	-40 C	Wire Wrap	Dual	98	Floating Bobbin Flush Mount	0.116 "	2.95 mm

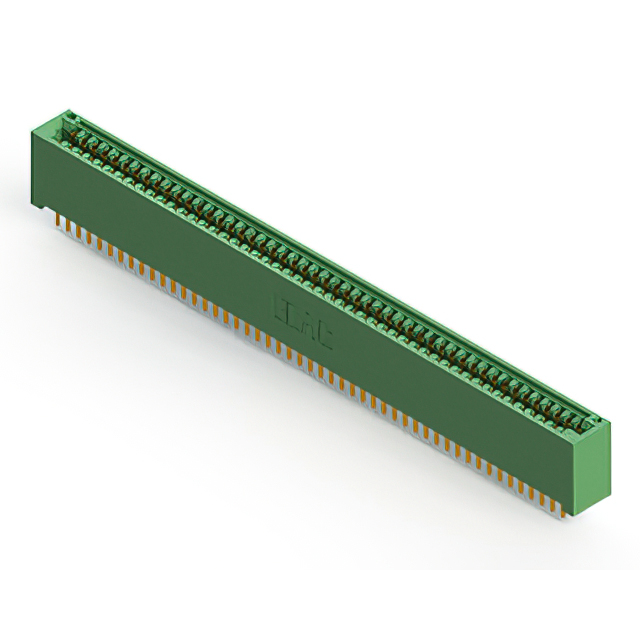

EDAC Inc. 845-098-521-201	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	2	49	Through Hole	Cantilever	Female	Copper Alloy	Green	0.1 "	2.54 mm	Gold	125 °C	-40 C	Solder	Dual	98
