PWM-90 Series

Catalog

LED DRIVER CV AC/DC 24V 3.75A

Part	Mounting Type	Number of Outputs	Dimming	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Approval Agency	Type	Efficiency	Voltage - Input (Max) [Max]	Ratings	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Current - Output (Max) [Max]	Voltage - Output	Features	Termination Style	Voltage - Input (Min) [Min]	Topology	Standard Number
MEAN WELL USA Inc. PWM-90-24	Chassis Mount	1	Analog PWM	85 °C	-40 C	3750 VDC	CB CCC CE cURus ENEC	Constant Voltage	90.5 %	305 VAC	IP67	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	90 W	3.75 A	24 V	OCP OTP OVP SCP	Wire Leads	90 VAC	AC DC Converter

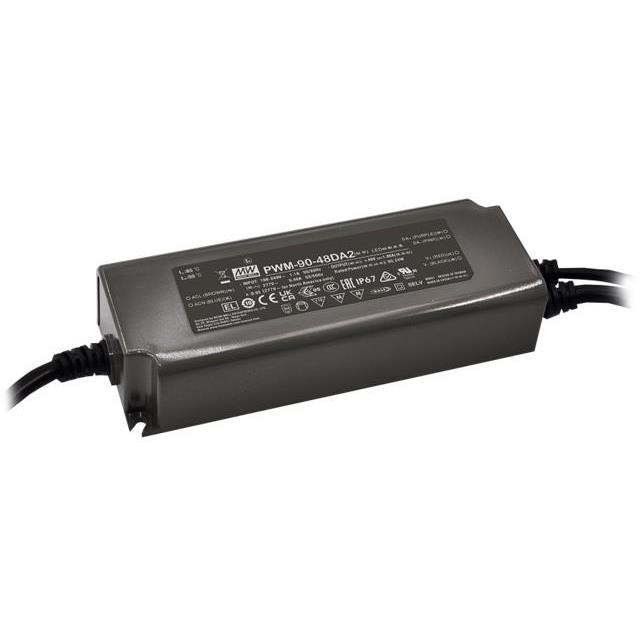

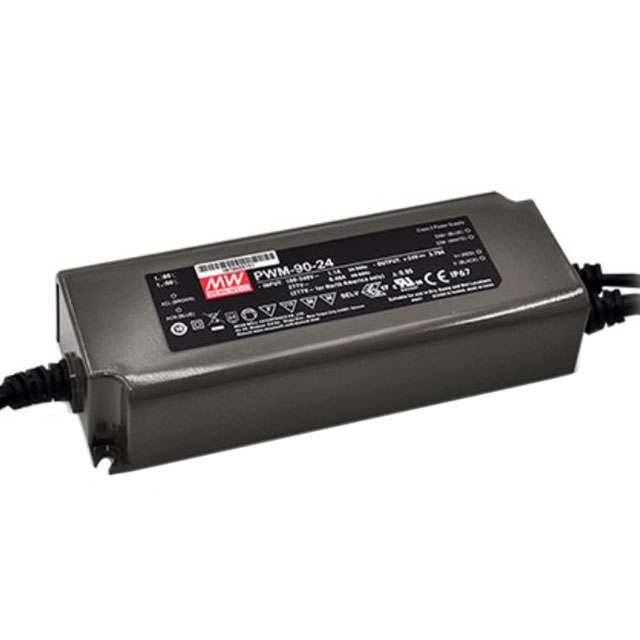

MEAN WELL USA Inc. PWM-90-12DA	Chassis Mount	1	Analog PWM	85 °C	-40 C	3750 VDC	CB CCC CE cURus EAC ENEC	Constant Voltage	88 %	305 VAC	IP67	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	90 W	1.88 A	12 V	OCP OTP OVP SCP	Wire Leads	90 VAC	AC DC Converter	UL 8750

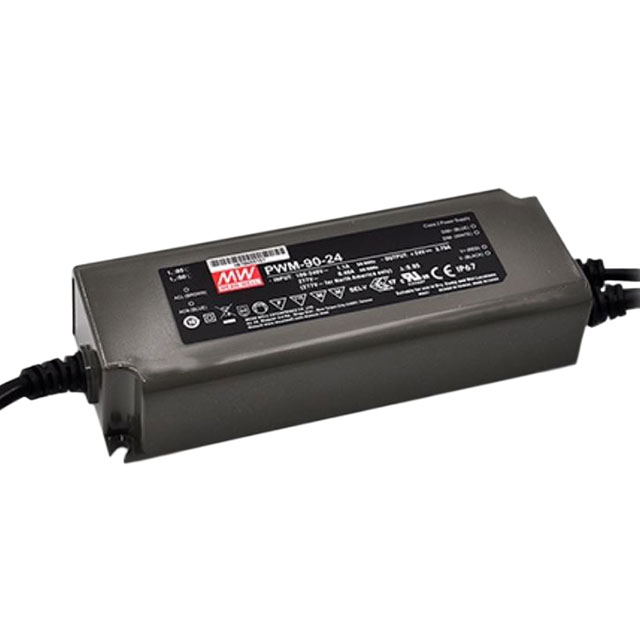

MEAN WELL USA Inc. PWM-90-24DA	Chassis Mount	1	DALI	85 °C	-40 C	3750 VDC	CB CCC CE cURus EAC ENEC	Constant Voltage	90.5 %	305 VAC	IP67	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	90 W	3.75 A	24 V	OCP OTP OVP SCP	Wire Leads	90 VAC	AC DC Converter
MEAN WELL USA Inc. PWM-90-36	Chassis Mount	1	Analog PWM	85 °C	-40 C	3750 VDC	CB CCC CE cURus ENEC	Constant Voltage	90.5 %	305 VAC	IP67	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	90 W	2.5 A	36 V	OCP OTP OVP SCP	Wire Leads	90 VAC	AC DC Converter
