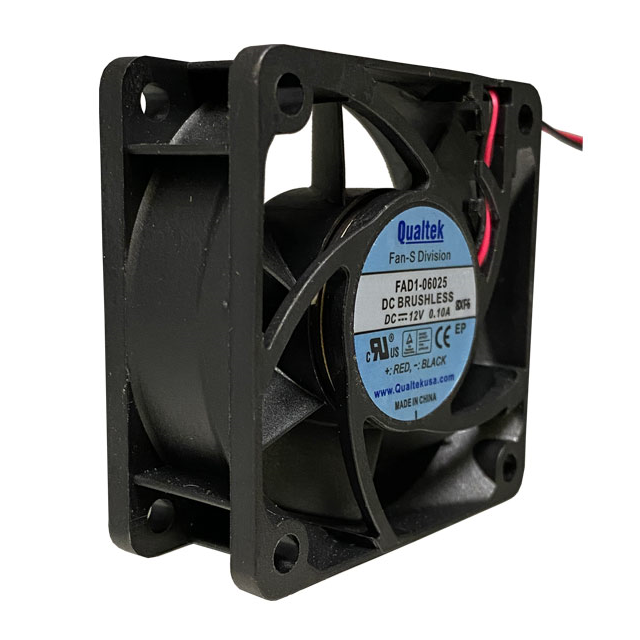

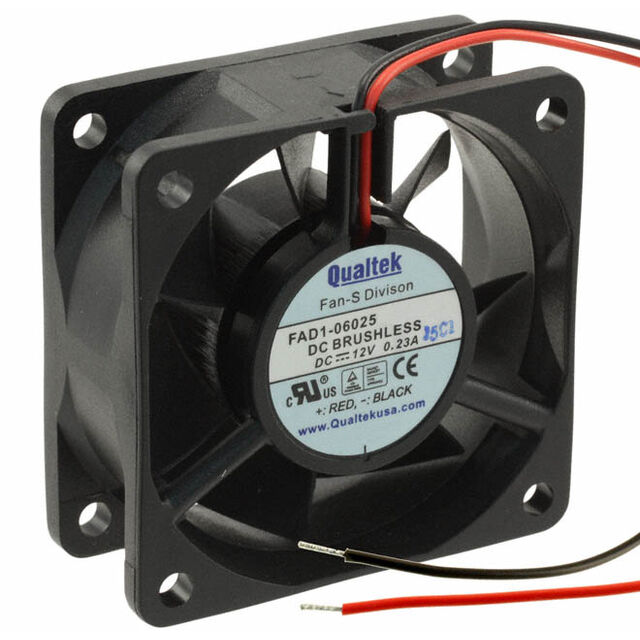

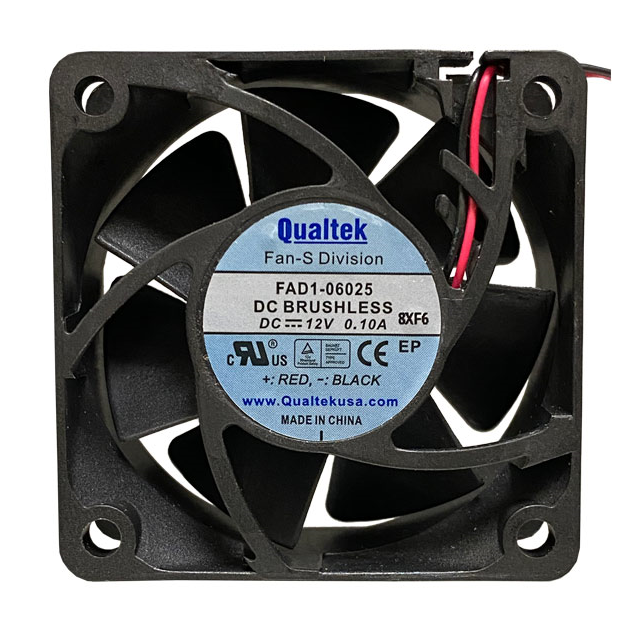

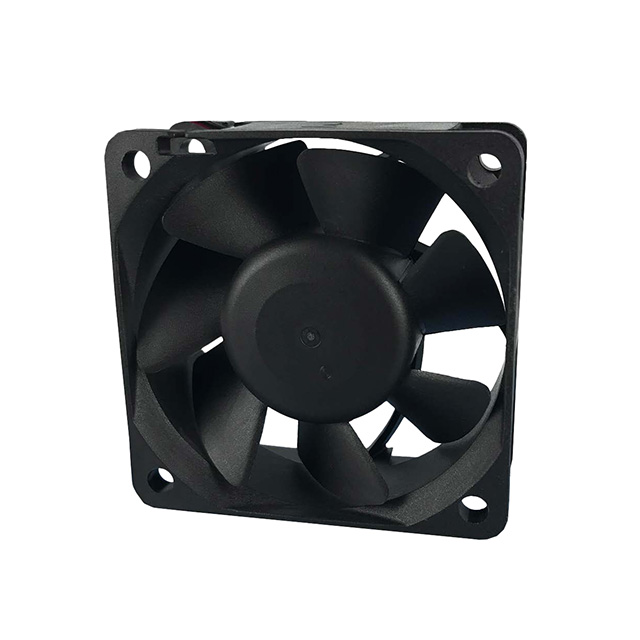

FAD1-06025 Series

Manufacturer: Qualtek

Catalog

DC FANS DC FAN 60X25MM 5VDC SLEEVE WIRE

Part	Material - Frame	Material - Blade	Current Rating (Amps)	Width [y]	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Termination	Weight	Weight	RPM	Approval Agency	Voltage - Rated	Air Flow	Air Flow	Fan Type	Noise	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.
Qualtek FAD1-06025BSMW12	Plastic	Plastic	0.17 A	25 mm	60 mm	60 mm	Sleeve	-10 °C	60 °C	31.1 Pa	0.125 in H2O	2 Wire Leads	0.117 lb	53.07 g	3500 RPM	CE cURus TUV	5 V	17.9 CFM	0.501 mł/min	Tubeaxial	27.9 dB(A)	850 mW
Qualtek FAD1-06025BBHW12-A				25 mm	60 mm	60 mm	Ball	-10 °C	70 °C	62.8 Pa	0.252 in H2O	2 Wire Leads	0.137 lb	62.14 g	4500 RPM	CE cURus TUV	5 V	23.4 CFM	0.655 m³/min	Tubeaxial		1.75 W
Qualtek FAD1-06025BBLW12-A	Plastic	Plastic	0.2 A	25 mm	60 mm	60 mm	Ball	-10 °C	70 °C	19.9 Pa	0.08 in H2O	2 Wire Leads	0.137 lb	62.14 g	2500 RPM	CE cURus TUV	5 V			Tubeaxial	18.9 dB(A)		5.5 V	4.5 V	70000 Hrs
Qualtek FAD1-06025DBMW12-A	Plastic	Plastic	0.09 A	25 mm	60 mm	60 mm	Ball	-10 °C	70 °C	37.9 Pa	0.152 in H2O	2 Wire Leads	0.137 lb	62.14 g	3500 RPM	CE cURus TUV	24 VDC	17.9 CFM	0.501 mł/min	Tubeaxial	28.1 dB(A)	2.16 W	26.4 VDC	21.6 VDC	70000 Hrs
Qualtek FAD1-06025DBJW12-A	Plastic	Plastic	120 mA	25 mm	60 mm	60 mm	Ball	-10 °C	70 °C	74.2 Pa	0.298 in H2O	2 Wire Leads	0.137 lb	62.14 g	5000 RPM	CE cURus TUV	24 VDC	26.1 CFM	0.731 m³/min	Tubeaxial	38.4 dB(A)	2.88 W	26.4 VDC	21.6 VDC	70000 Hrs
Qualtek FAD1-06025CBMW12-A				25 mm	60 mm	60 mm	Ball	-10 °C	70 °C	37.9 Pa	0.152 in H2O	2 Wire Leads	0.137 lb	62.14 g	3500 RPM	CE cURus TUV	12 VDC	17.9 CFM	0.501 mł/min	Tubeaxial	28.1 dB(A)	1.56 W
Qualtek FAD1-06025DHLW12-A	Plastic	Plastic	60 mA	25 mm	60 mm	60 mm	Hydrodynamic	-10 °C	70 °C	19.9 Pa	0.08 in H2O	2 Wire Leads	0.137 lb	62.14 g	2500 RPM	CE cURus TUV	24 VDC	12.7 CFM	0.356 mł/min	Tubeaxial	18.9 dB(A)	720 mW	26.4 VDC	21.6 VDC	40000 Hrs
Qualtek FAD1-06025CBKW12-A	Plastic	Plastic	320 mA	25 mm	60 mm	60 mm	Ball	-10 °C	70 °C	110.8 Pa	0.445 in H2O	2 Wire Leads	0.137 lb	62.14 g	6000 RPM	CE cURus TUV	12 VDC	31.5 CFM	0.882 m³/min	Tubeaxial	42.7 dB(A)	3.84 W	13.2 VDC	10.8 VDC	70000 Hrs
Qualtek FAD1-06025BBMW12-A	Plastic	Plastic	0.35 A	25 mm	60 mm	60 mm	Ball	-10 °C	70 °C	37.9 Pa	0.152 in H2O	2 Wire Leads	0.137 lb	62.14 g	3500 RPM	CE cURus TUV	5 V	17.9 CFM	0.501 mł/min	Tubeaxial	28.1 dB(A)	1.75 W	5.5 V	4.5 V	70000 Hrs
Qualtek FAD1-06025DBHW12-A	Plastic	Plastic	120 mA	25 mm	60 mm	60 mm	Ball	-10 °C	70 °C	62.8 Pa	0.252 in H2O	2 Wire Leads	0.137 lb	62.14 g	4500 RPM	CE cURus TUV	24 VDC	23.4 CFM	0.655 m³/min	Tubeaxial		2.88 W	26.4 VDC	21.6 VDC	70000 Hrs
