ABPDANN005 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

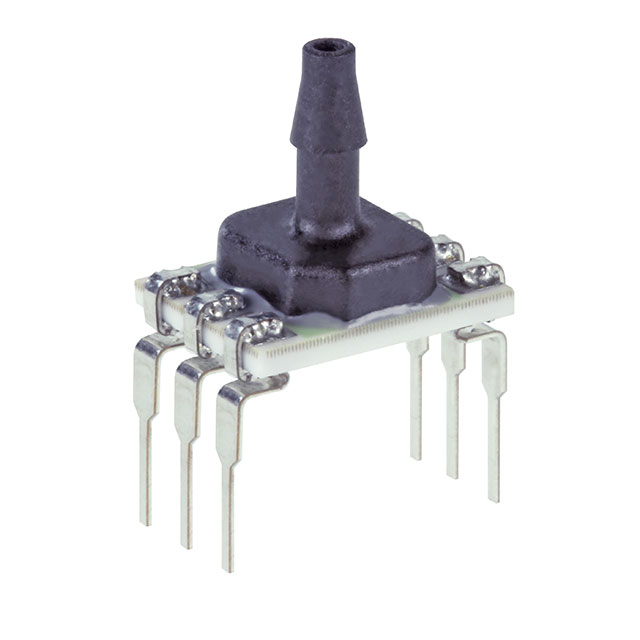

SENSOR 5PSIG 0.08" 12BIT 6DIP
| Part | Mounting Type | Termination Style | Accuracy | Operating Temperature [Max] | Operating Temperature [Min] | Output | Supplier Device Package | Voltage - Supply | Port Style | Package / Case | Features | Port Size [x] | Port Size | Port Size [x] | Operating Pressure | Operating Pressure | Applications | Maximum Pressure [Max] | Maximum Pressure [Max] | Output Type | Pressure Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Through Hole | PC Pin | 0.25 % | 85 °C | -40 °C | 12 b | 6-DIP | 3.3 V | Barbed | 6-DIP Module | Amplified Output Temperature Compensated | 1.93 mm | Male | 0.08 " | 34.47 kPa | 5 PSI | Medical Ventilation | 90 PSI | 620.53 kPa | I2C | Vented Gauge |
