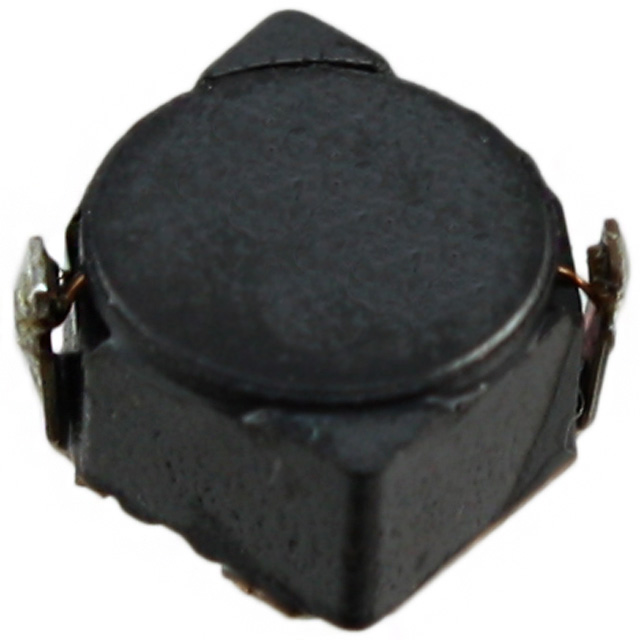

29 Series
Manufacturer: Murata Electronics
Beta
⌘K
FIXED IND 6.8UH 2.1A 40MOHM SMD
| Part | Inductance | Current Rating (Amps) | Inductance Frequency - Test | Height - Seated (Max) | Height - Seated (Max) [Max] | Package / Case | Shielding | Type | DC Resistance (DCR) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 6.8 µH | 2.1 A | 10 kHz | 4 mm | 0.157 in | Nonstandard Corner Terminals | Shielded | Wirewound | 40 mOhm | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Surface Mount | 85 °C | -40 C | |
Murata Electronics | 1 µH | 6 A | 10 kHz | 4 mm | 0.157 in | Nonstandard | Shielded | Wirewound | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Surface Mount | 85 °C | -40 C | 16 mOhm | |
 Murata Electronics | 47 µH | 0.85 A | 10 kHz | 4 mm | 0.157 in | Nonstandard | Shielded | Wirewound | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Surface Mount | 85 °C | -40 C | 170 mOhm | |
 Murata Electronics | 1 mH | 0.18 A | 10 kHz | 4 mm | 0.157 in | Nonstandard | Shielded | Wirewound | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Surface Mount | 85 °C | -40 C | 4.1 Ohm | |
Murata Electronics | 2.2 µH | 5 A | 10 kHz | 4 mm | 0.157 in | Nonstandard Corner Terminals | Shielded | Wirewound | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Surface Mount | 85 °C | -40 C | 20 mOhm | |
Murata Electronics | 33 µH | 1 A | 10 kHz | 4 mm | 0.157 in | Nonstandard | Shielded | Wirewound | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Surface Mount | 85 °C | -40 C | 120 mOhm | |
Murata Electronics | 1.5 µH | 5.5 Amps | 10 kHz | 4 mm | 0.157 in | Nonstandard Corner Terminals | Shielded | Wirewound | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Surface Mount | 85 °C | -40 C | 18 mOhm | |
Murata Electronics | 220 µH | 0.38 A | 10 kHz | 4 mm | 0.157 in | Nonstandard Corner Terminals | Shielded | Wirewound | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Surface Mount | 85 °C | -40 C | 760 mOhm | |
 Murata Electronics | 3.3 µH | 4 A | 10 kHz | 4 mm | 0.157 in | Nonstandard | Shielded | Wirewound | 28 mOhm | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Surface Mount | 85 °C | -40 C | |
Murata Electronics | 15 µH | 1.5 A | 10 kHz | 4 mm | 0.157 in | Nonstandard Corner Terminals | Shielded | Wirewound | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Surface Mount | 85 °C | -40 C | 65 mOhm |
