ADN5-24 Series

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 24V 5A 120W

Part	DC Voltage - Input (Min) [Min]	Input Type	Number of Outputs	Applications	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output 1	DC Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Features	Efficiency	Approval Agency	Standard Number	Size / Dimension [y]	Size / Dimension [z]	AC Voltage - Input [Max]	AC Voltage - Input [Min]
ARTESYN / Advanced Energy ADN5-24-3PM-C	450 V	AC or DC	1	Hazardous Locations Industrial ITE (Commercial)	5 A	50 mm	123 mm	1.97 in	4.85 in	111 mm	4.36 "	24 V	760 V	70 °C	-25 °C	120 W	Adjustable Output IP20 Load Sharing PFC	85 %	CE

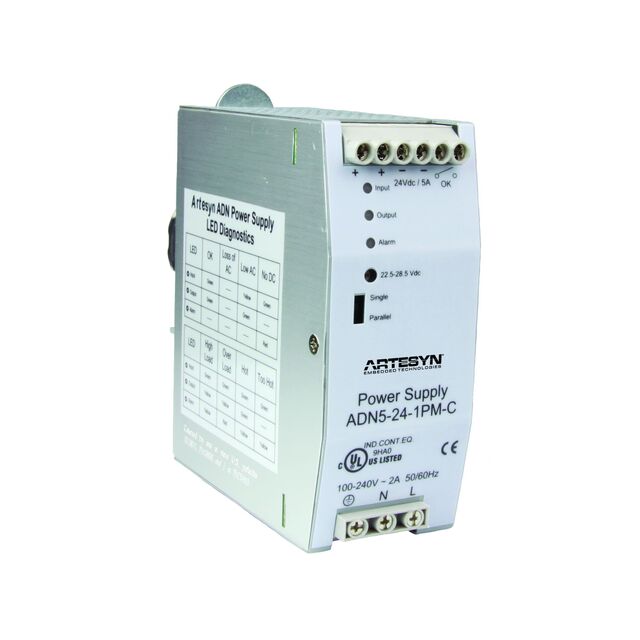

ARTESYN / Advanced Energy ADN5-24-1PM-C	90 V	AC or DC	1	Hazardous Locations Industrial ITE (Commercial)	5 A		111 mm	1.97 in	4.37 in		4.85 "	24 V	375 V	70 °C	-25 °C	120 W	Adjustable Output IP20 Load Sharing PFC Universal Input	90 %	CE cULus UL	508 60950-1 Class I Div 2	50 mm	123 mm	264 VAC	85 VAC
