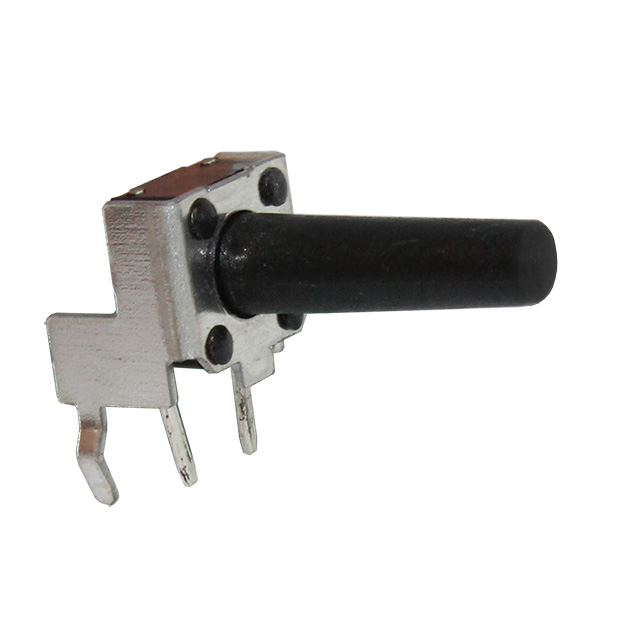

CT1102V11 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Switch Travel | Actuator Material | Actuator Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Mounting Type | Outline [y] | Outline [x] | Termination Style | Operating Force | Contact Rating @ Voltage | Switch Function | Actuator Type | Actuator Length, Right Angle [x] | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | Side Actuated | 85 °C | -40 C | Non-Illuminated | Right Angle Through Hole | 6.3 mm | 7.5 mm | PC Pin | 100 gf | 0.05 A 50 VDC | Off-Mom | Plunger for Cap | 11.85 mm | SPST-NO |
CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | Side Actuated | 85 °C | -40 C | Non-Illuminated | Right Angle Through Hole | 6.3 mm | 7.5 mm | PC Pin | 260 gf | 0.05 A 50 VDC | Off-Mom | Plunger for Cap | 11.85 mm | SPST-NO |
